VORTEX GT Power Connectors for Wind
Energy Technologies
Amphenol
®
, which has been manufacturing connectors
for more than 75 years, offers an extensive array of
connector lines including rectangular, circular, fiber optic,
EMI/EMP filter and a variety of special application
connectors.
With the introduction of its patented RADSOK
®
technology,
Amphenol
®
Industrial Operations (AIO) revolutionized the
connector Industry. RADSOK’S twisted grid configuration
allows for 50% more current to pass through the same
size pin, while providing increased reliability, ampacity and
cycle durability as well as lower insertion force, T-rise and
voltage drop.
Features:
• 1/4 Turn Mating
• Crimp or Busbar Termination
• Silver Plated Contacts
• Finger Proof
• Current: 800Amp
• Voltage: DC 470/600V
• Operation Temperature: -20~120F
• Panel Mount Receptacle
• Life cycles: >= 2000
www.amphenol-industrial.com
The Vortex GT is a reverse bayonet connector which incorpo-
rates our patented RADSOK technology. It is designed to
deliver high power from source to load. The plug contains an
18mm RADSOK socket and Receptacle contains an 18mm
pin with the option of crimp, 2 hole busbar, or threaded busbar
termination. When unmated personal safety is maintained
through IP2X (touchproof) contact design. The RADSOK’S
strongest benefit is its very low milli-volt drop and minimized
temperature rise when transmitting high current. The 18mm
Vortex GT is perfectly suited for high amperage applications
such as electrical generators, fuel cells, load banks, and
charging systems.
Benefits:
• Quick positive coupling
• Audible, tactile and visual indication of full coupling
• Environmental Applications
• High Amperage Applications
• Easily Adaptable
• Better Conductivity where needed
VORTEX CODE LOGIC
V
VORTEX GT
06
03C
03B
03T
Plug with Crimp Contact
Receptacle with Crimp Contact
Receptacle with 2 Hole Busbar
Receptacle with Threaded Busbar
1
2
3
4
5
N
W
X
Y
1
2
3
*
4
5
Omit
180° Normal Rotation
120° Alternate Rotation
90° Alternate Rotation
210° Alternate Rotation
E
Protective Cap
Omit No Protective Cap
M40 Metric M40 Cable Adapter
M50 Metric M50 Cable Adapter
Omit For Receptacle without Adapter
120 mm sq crimp wire well
150 mm sq crimp wire well
185 mm sq crimp wire well
200 mm sq crimp wire well obtained using supplied crimp sleeve
240 mm sq crimp wire well
For Threaded or 2 Hole Busbar Option

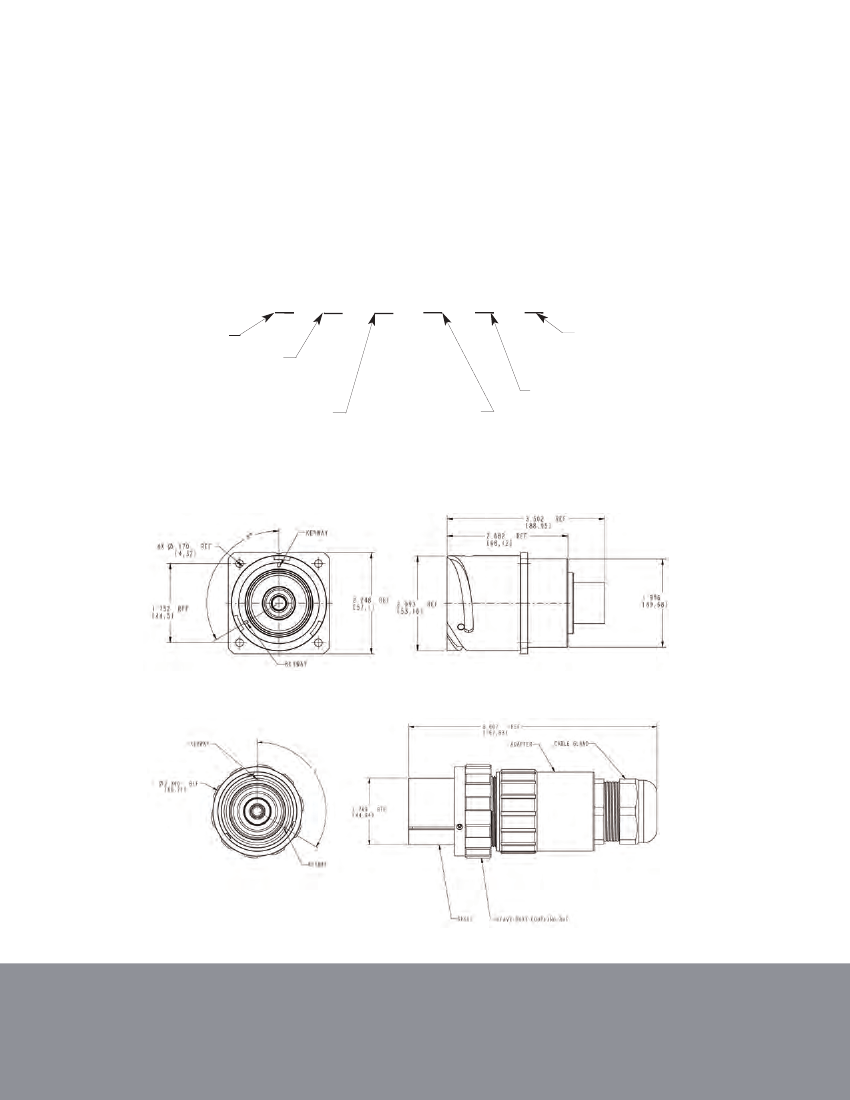

CONNECTOR STYLES:
RECEPTACLE
PLUG
