GBJ3508: Description35 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size243KB，4 Pages; ManufacturerTAITRON Components; Websitehttp://www.taitroncomponents.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

GBJ3508 Overview

35 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE

GBJ3508 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TAITRON Components
package instruction	R-PSFM-T4
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY, ULRECOGNIZED
Minimum breakdown voltage	800 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSFM-T4
Maximum non-repetitive peak forward current	350 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	35 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

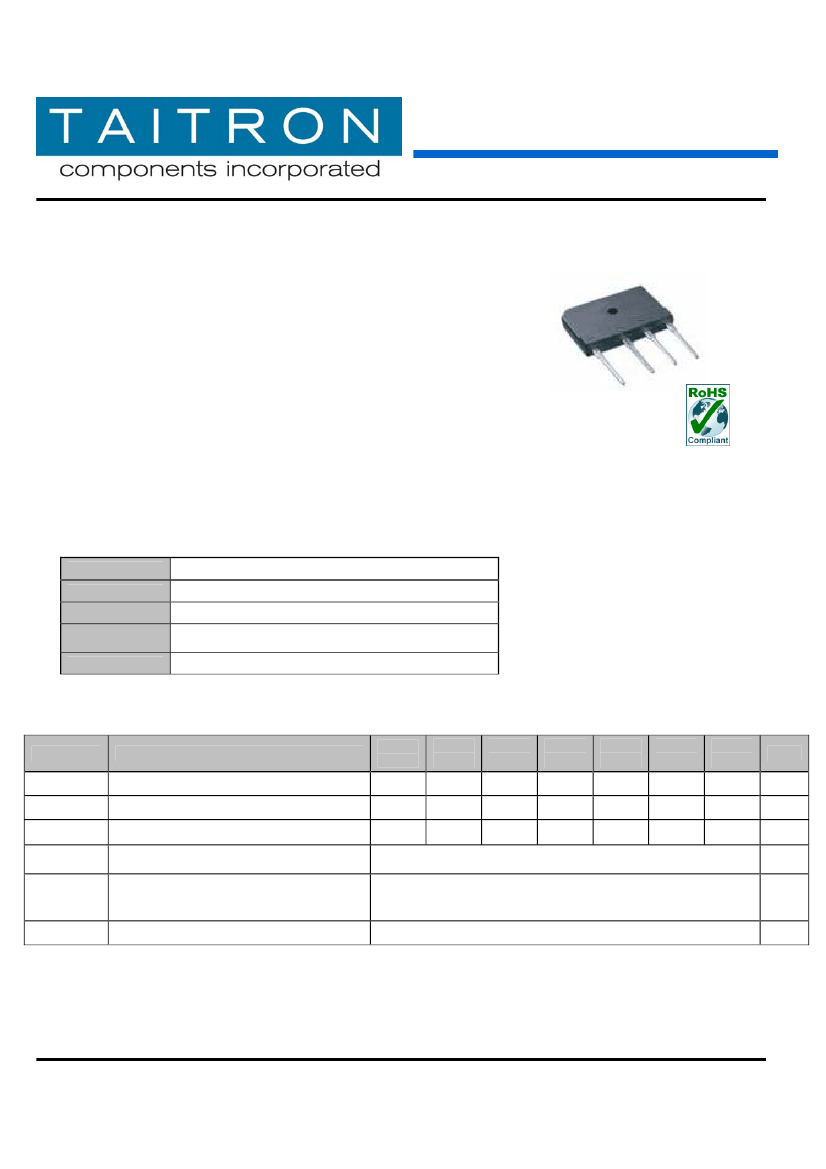

Single-Phase

Glass Passivated

Bridge Rectifier

GBJ35005 – GBJ3510

Single-Phase Glass Passivated Bridge Rectifier

Features

•

Plastic package has Underwriters Laboratory Flammability

Classification 94 V-0

•

Glass passivated die construction

•

Low forward voltage drop

•

High current capability

•

High reliability

•

High surge current capability

•

Ideal for printed circuit boards

•

RoHS Compliant

GBJ

Mechanical Data

Case:

Terminals:

Polarity:

Mounting

Torque:

Weight:

Molded Plastic

Plated leads solderable per MIL-STD-202, method 208

Molded on Body

8.8 In-1bs Max.

7.0 grams

Maximum Ratings

Ambient

=25ºC unless noted)

Symbol

Description

Max. Repetitive Peak Reverse Voltage

Max. RMS Voltage

Max. DC Blocking Voltage

Max. Average Forward Rectified Output

Current at T

=100°C

Peak Forward Surge Current

8.3ms single half sine-wave superimposed on

rated load(JEDEC method)

Operating and Storage Temperature Range

GBJ35

005

GBJ35

100

GBJ35

200

140

200

GBJ35

400

280

400

350

-55 to +150

GBJ35

600

420

600

GBJ35

800

560

800

GBJ35

1000

700

1000

Unit

°C

RRM

RMS

(AV)

FSM

STG

TAITRON COMPONENTS INCORPORATED

www.taitroncomponents.com

Tel: (800)-TAITRON

Fax: (800)-TAITFAX

(800)-824-8766

(800)-824-8329

(661)-257-6060

(661)-257-6415

Rev. A/AH 2007-12-05

Page 1 of 4
