RFLW5N1200AMNWS datasheet, PDF

Datasheet> All Categories > Passive components> inductor> RFLW5N1200AMNWS

RFLW5N1200AMNWS: DescriptionGeneral Purpose Inductor, 120uH, 20%, 1 Element, Quartz-Core, SMD, CHIP, 0505; CategoryPassive components inductor; File Size250KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

RFLW5N1200AMNWS Overview

General Purpose Inductor, 120uH, 20%, 1 Element, Quartz-Core, SMD, CHIP, 0505

RFLW5N1200AMNWS Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
core material	QUARTZ
DC Resistance	7.7 Ω
Nominal inductance(L)	120 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	RFLW5N
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	18
Guideline	AEC-Q200
self resonant frequency	1700 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal shape	SPECIAL
Test frequency	250 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

RFLW 5N

Vishay Electro-Films

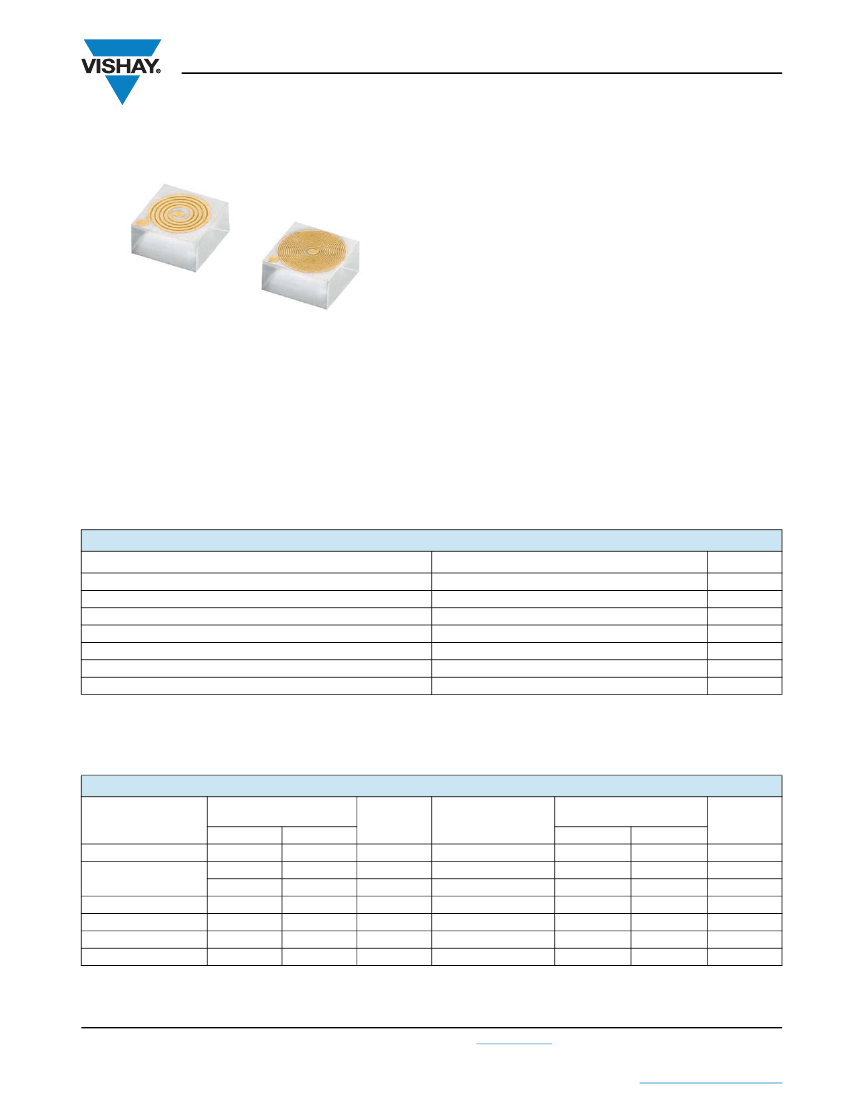

High Frequency Wire Bondable RF Spiral Inductor, 0.050" x 0.050"

FEATURES

• High frequency

• Wire bond assembly

• Small size: 0.050" x 0.050" x 0.020"

• Low DCR, high Q

• Low parasitic capacitance, high SRF

• Equivalent circuit model enclosed

RFLW series of thin film spiral inductors on quartz are

designed for RF circuits that require wire bondable

components. High precision equivalent circuit modeling

enables accurate computer simulation of component

performance. Measured S parameter files are also available

upon request.

In many RF application, correct component selection is

achieved through experimentation. To help designers during

the design process, a sample kit of standard values is

available.

Additional values and form factors available upon request.

• S parameter files available for download

• Sample kit available

• AEC-Q200 qualified available

APPLICATIONS

• RF choking for DC biasing

• RF tuning circuits

• Lumped element filters

STANDARD ELECTRICAL SPECIFICATIONS

PARAMETER

Inductance Range

(1)

Tolerance

(2)

VALUE

0.018 to 0.150

± 20

125

- 55 to + 125

2.0 % max.

R/R

5.0 % max.

R/R

UNIT

μH

°C

Max. Power Handling

(3)

Operating Temperature

Storage Temperature

Stability, 1000 h, + 125 °C, 125 mW

ESD: AEC-Q200-002, component classification 5B (up to 16 kV)

Notes

(1)

Custom values available upon request. See custom design section below.

(2)

Main source of value tolerance is due to variation in wire bonds. See “test fixture” section below.

(3)

Maximum rated power of 125 mW at 70 °C, linearly de-rated to zero at 125 °C.

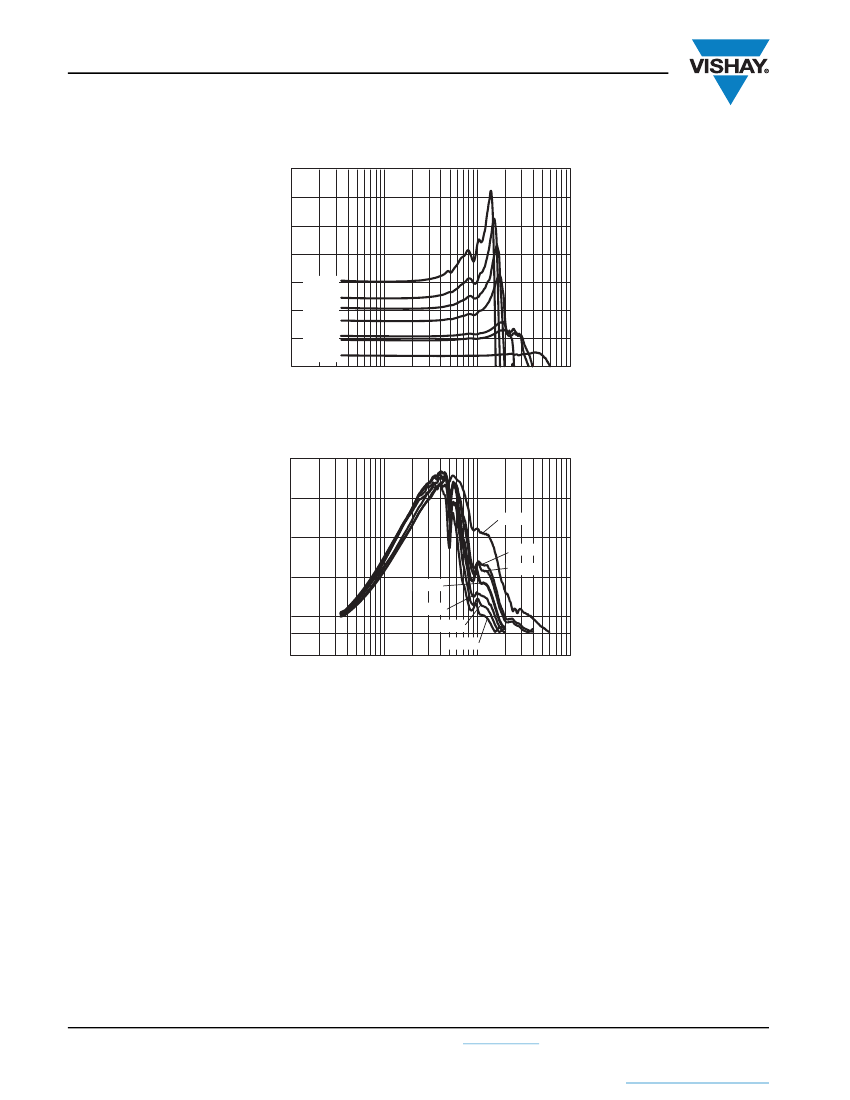

RF CHARACTERISTICS - TYPICAL VALUES

PART NUMBER

RFLW5N1800B

RFLW5N5200B

RFLW5N8000B

RFLW5N1000A

RFLW5N1200A

RFLW5N1500A

INDUCTANCE

(nH)

250 MHz

100

120

150

1000 MHz

125

156

220

DCR

()

1.0

3.3

3.6

4.5

5.4

7.7

9.3

IN-CIRCUIT

INDUCTANCE

(4)

(nH)

102

122

152

(UNITLESS)

250 MHz

1000 MHz

SRF

(GHz)

3.8

3.5

2.4

1.9

1.7

1.5

Note

(4)

Including the added inductance and resistance of typical bond wires at 250 MHz. See equivalent circuit section below.

Document Number: 61087

Revision: 21-Apr-11

For technical questions, contact:

efi@vishay.com

www.vishay.com

This document is subject to change without notice.

THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice
