2775W-1.000M-NSA5313A datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 2775W-1.000M-NSA5313A

2775W-1.000M-NSA5313A: DescriptionCMOS Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size85KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

2775W-1.000M-NSA5313A Overview

CMOS Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT PACKAGE-4

2775W-1.000M-NSA5313A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.0mm
longest rise time	5 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

Crystal Clock Oscillator

2775 Series

Model name

2775W Frequency stability of ±100 x 10

–6

Programmable Type

Application

For compact mobile information equipment, such as a notebook PC,

mobile information terminal, and PC card

PLL technology allows this crystal oscillator to support 1 to 125 MHz.

With the adoption of frequency-writing technology, even the tightest

delivery deadline can be met.

Automatic mounting by taping and IR reflow (lead-free) are possible.

Compact and light. Dimensions and weight: 5.0 x 3.2 mm, 1.0 mm, and 0.06 g.

Features

Free

Absolute maximum rating

Power supply voltage (V

) -0.5 to +7.0 V

Storage temperature range -55 to +125 °C

Specifications

Item

Model

2775W

C-MOS

1 ≤ F ≤ 40

40 < F ≤ 70

–20 to +70

±100

+5.0±0.5

0.1 V

/0.9 V

5/5 (0.1 V

to 0.9 V

)

45 to 55 (at 1/2 V

)

Available (tristate)

NSA5313A

*2: If you require a product with an operating temperature range not given above, please contact us.

Output level

Frequency range

(MHz)

(°C)

Operating temperature range

Frequency stability

(×10

–6

)

Power supply voltage [V

]

(V)

Current consumption During operation (mA)

(μA)

(+5.0 V, 25 °C) max During standby

(V)

max/V

min

(ns)

Tr max/Tf max

(%)

Duty Cycle min. to max.

(pF)

Load (C

) max

(ms)

Oscillation start time max

Standby function

Number for specifying an order

70 < F ≤ 125

3/3 (0.2 V

to 0.8 V

)

40 to 60 (at 1/2 V

)

*1: If you require a product with a frequency not given above, please contact us.

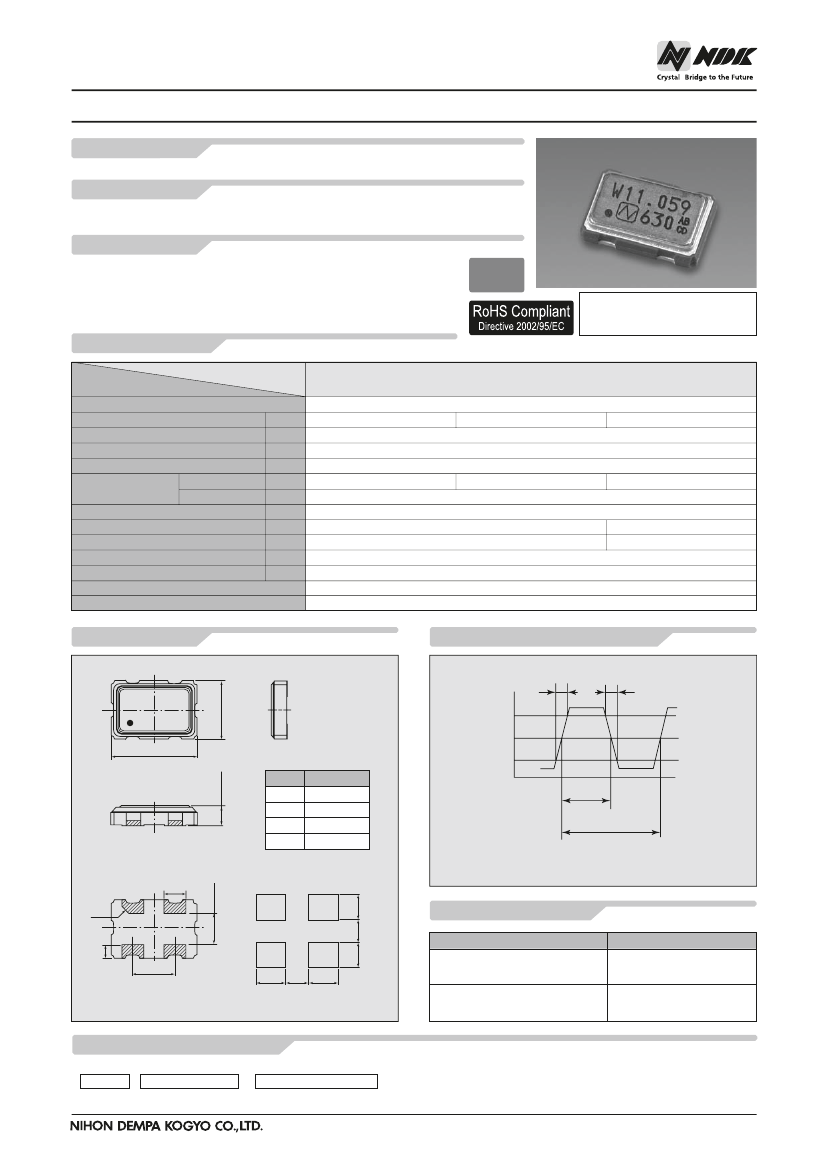

Dimensions

Output Waveform <C-MOS>

3.2±0.2

0.9V

or 0.8V

1/2V

5.0±0.2

PAD

1.0 ±0.2

Connection

Standby

GND

OUTPUT

0.1V

or 0.2V

Duty Cycle = t/T × 100 [%]

C0.5

1.0±0.1

1.2±0.1

Reference land pattern

1.20

Standby Function

1.00

1.20

#1 Input

Level H (+2 V min.)

or OPEN is selected.

Level L (+0.8 V max.) is selected.

#3 Input

Oscillation output ON

High impedance

(weak pull-down)

2.54±0.1

1.40 1.14 1.40

Mount an approx. 0.01 μF bypass capacitor between V

and GND (close to the product)

Example 1: When ordering a product with model name: 2775W, frequency: 11.059 MHz,

frequency stability: ±100 x 10

–6

, and power supply voltage: 5.0 V

When ordering our products, specify them with an “Ordering Code” that consists of the following:

Ordering Code: 2775W – 11.059000M – NSA5313A

Model name – Frequency (up to 9 digits) M – Number for specifying an order

If you have any queries concerning our standard frequencies and numbers for specifying orders, please contact our sales representatives or visit our homepage (http://www.ndk.com/).

How to Specify an Order

cc57_080926_2775W_100_e

2775W-1.000M-NSA5313A Related Products

	2775W-1.000M-NSA5313A	2775W-70.000M-NSA5313A	2775W-125.000M-NSA5313A	2775W-11.059M-NSA5313A	2775W-1.0000000M-NSA5313A
Description	CMOS Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 70MHz Nom, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 125MHz Nom, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 11.059MHz Nom, ROHS COMPLIANT PACKAGE-4	Oscillator
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Is it Rohs certified?	conform to	conform to	conform to	conform to	-
maximum descent time	5 ns	5 ns	5 ns	5 ns	-
Frequency Adjustment - Mechanical	NO	NO	NO	NO	-
frequency stability	100%	100%	100%	100%	-
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Nominal operating frequency	1 MHz	70 MHz	125 MHz	11.059 MHz	-
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	-
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-
Oscillator type	CMOS	CMOS	CMOS	CMOS	-
Output load	15 pF	15 pF	15 pF	15 pF	-
physical size	5.0mm x 3.2mm x 1.0mm	5.0mm x 3.2mm x 1.0mm	5.0mm x 3.2mm x 1.0mm	5.0mm x 3.2mm x 1.0mm	-
longest rise time	5 ns	5 ns	5 ns	5 ns	-
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage	5 V	5 V	5 V	5 V	-
surface mount	YES	YES	YES	YES	-
maximum symmetry	55/45 %	55/45 %	60/40 %	55/45 %	-
Base Number Matches	1	1	1	1	-
