54F399M/B2AJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F399M/B2AJC

54F399M/B2AJC: DescriptionF/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size76KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F399M/B2AJC Overview

F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20

54F399M/B2AJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	F/FAST
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	100000000 Hz
MaximumI(ol)	0.02 A
Number of digits	4
Number of functions	1
Number of entries	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	34 mA
propagation delay (tpd)	11.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	8.885 mm
minfmax	80 MHz
Base Number Matches	1

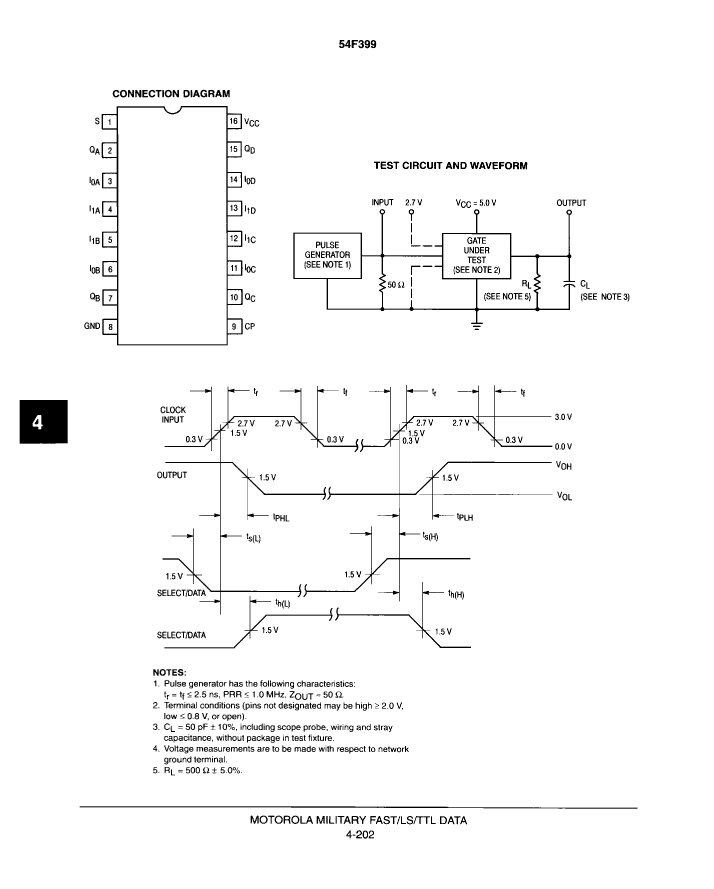

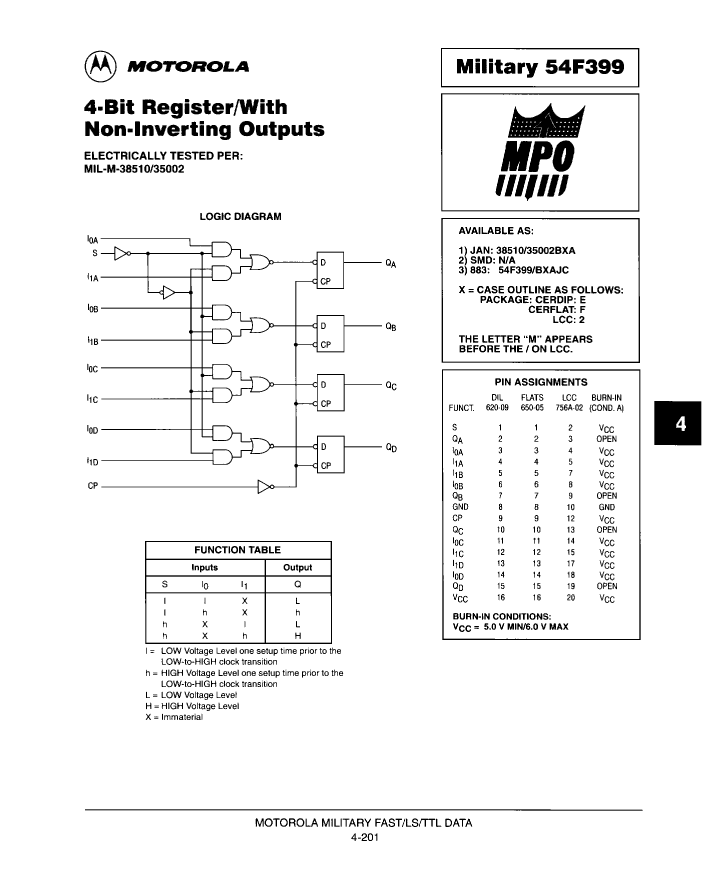

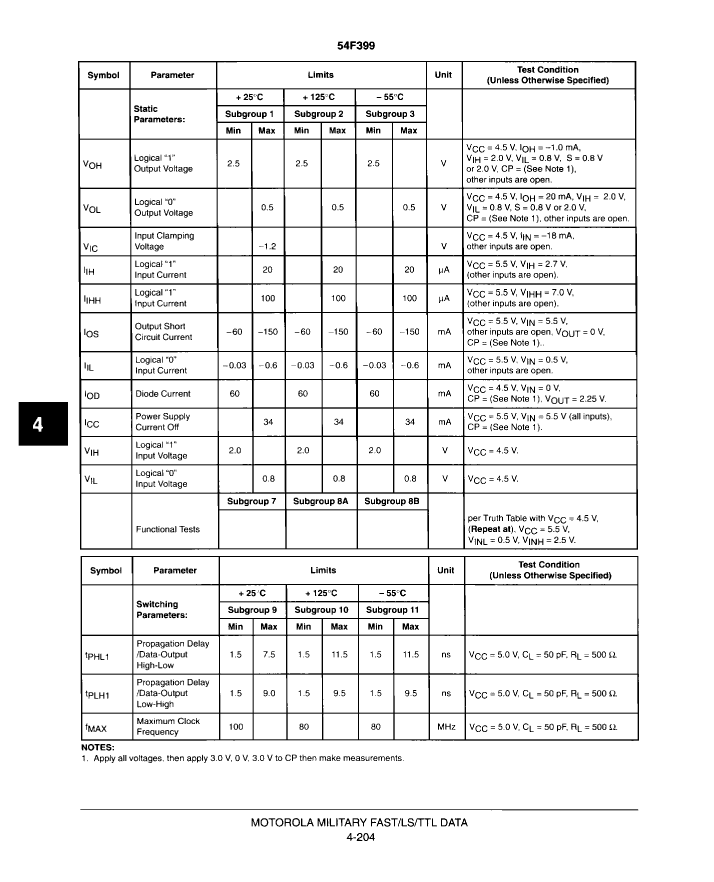

Preview

Download Datasheet

View All

54F399M/B2AJC Related Products

	54F399M/B2AJC	54F399/BEAJC	54F399/BFAJC
Description	F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20	F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERDIP-16	D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDFP16, CERAMIC, FP-16
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	DIP, DIP16,.3	CERAMIC, FP-16
Reach Compliance Code	unknown	unknown	unknown
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-GDIP-T16	R-GDFP-F16
JESD-609 code	e0	e0	e0
length	8.885 mm	19.3 mm	9.65 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	100000000 Hz	100000000 Hz	100000000 Hz
MaximumI(ol)	0.02 A	0.02 A	0.02 A
Number of digits	4	4	4
Number of functions	1	1	1
Number of entries	2	2	2
Number of terminals	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP	DFP
Encapsulate equivalent code	LCC20,.35SQ	DIP16,.3	FL16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	34 mA	34 mA	34 mA
propagation delay (tpd)	11.5 ns	11.5 ns	11.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	1.9 mm	4.19 mm	2.15 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	8.885 mm	7.62 mm	6.415 mm
minfmax	80 MHz	80 MHz	80 MHz
Base Number Matches	1	1	1
Parts packaging code	QLCC	DIP	-
Contacts	20	16	-
