54F126/BDAJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F126/BDAJC

54F126/BDAJC: DescriptionF/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size81KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F126/BDAJC Overview

F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDFP14, CERAMIC, FP-14

54F126/BDAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP,
Contacts	14
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
length	9.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	48 mA
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.415 mm
Base Number Matches	1

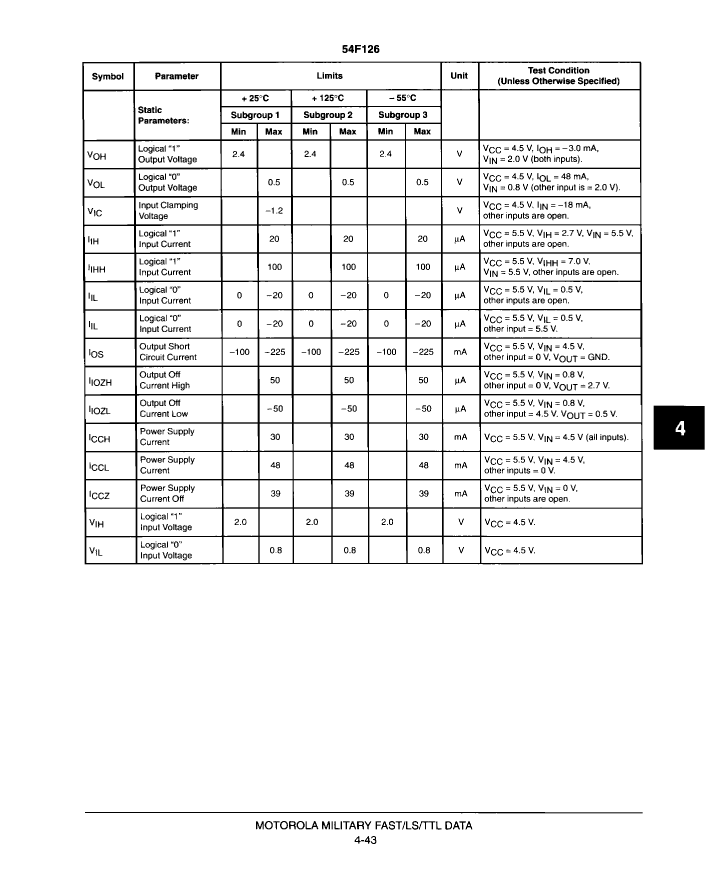

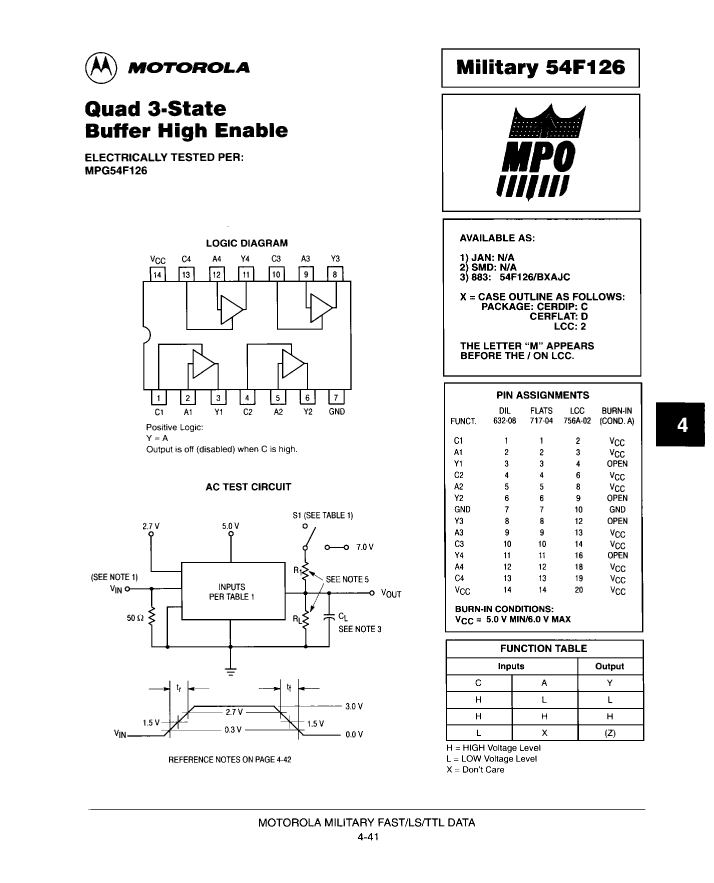

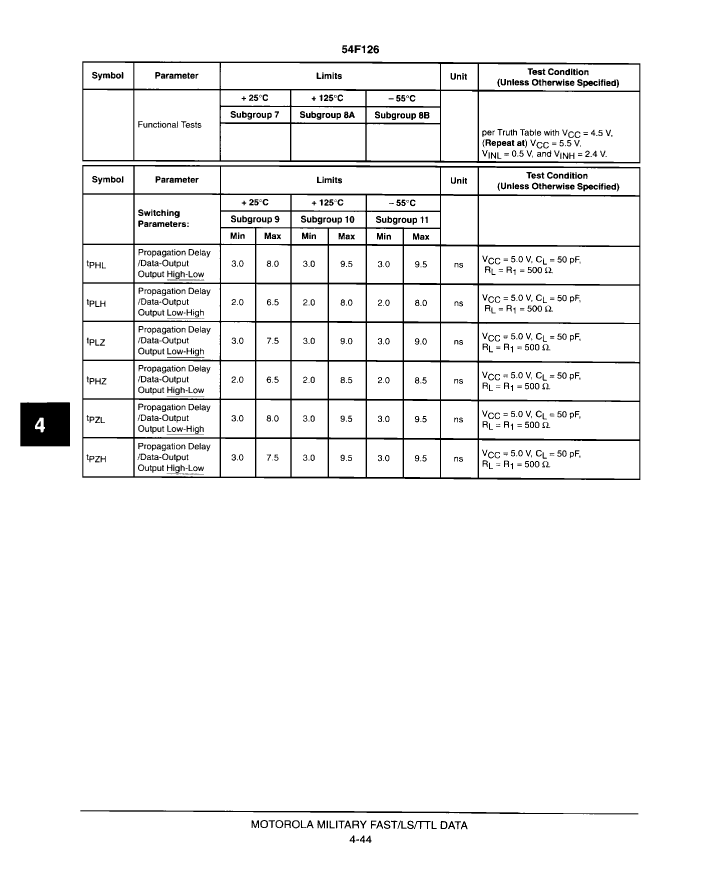

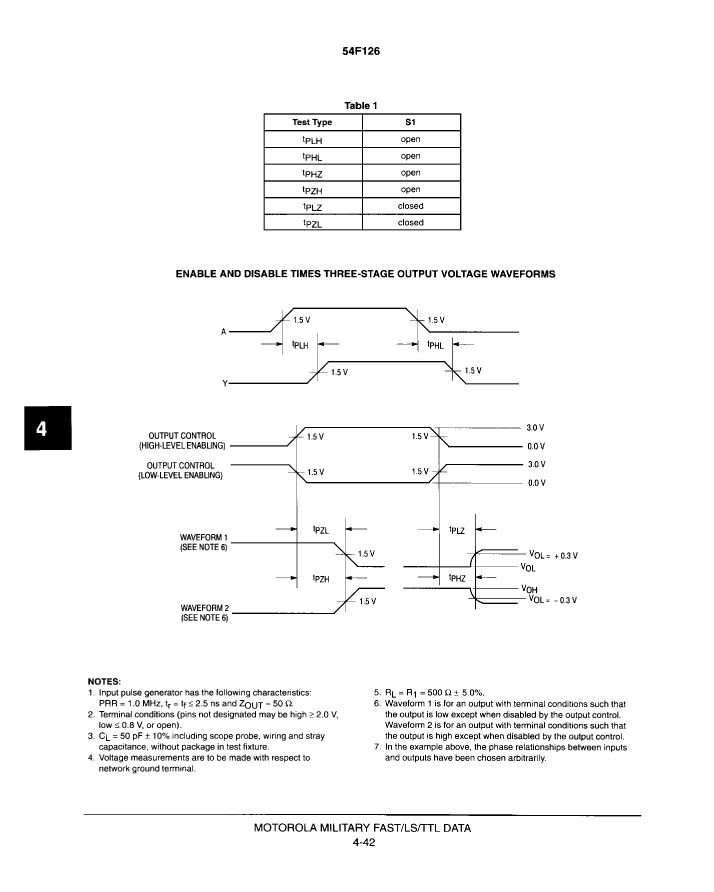

Preview

Download Datasheet

View All

54F126/BDAJC Related Products

	54F126/BDAJC	54F126M/B2AJC	54F126/BCAJC
Description	F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDFP14, CERAMIC, FP-14	F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20	F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDIP14, CERDIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DFP,	QCCN,	CERDIP-14
Reach Compliance Code	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDFP-F14	S-CQCC-N20	R-GDIP-T14
JESD-609 code	e0	e0	e0
length	9.65 mm	8.89 mm	19.495 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	1	1	1
Number of functions	4	4	4
Number of ports	2	2	2
Number of terminals	14	20	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	QCCN	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	48 mA	48 mA	48 mA
propagation delay (tpd)	9.5 ns	9.5 ns	9.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.15 mm	1.9 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.415 mm	8.89 mm	7.62 mm
Base Number Matches	1	1	1
Parts packaging code	DFP	QLCC	-
Contacts	14	20	-
