54LS123/BFAJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS123/BFAJC

54LS123/BFAJC: DescriptionLS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size190KB，10 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS123/BFAJC Overview

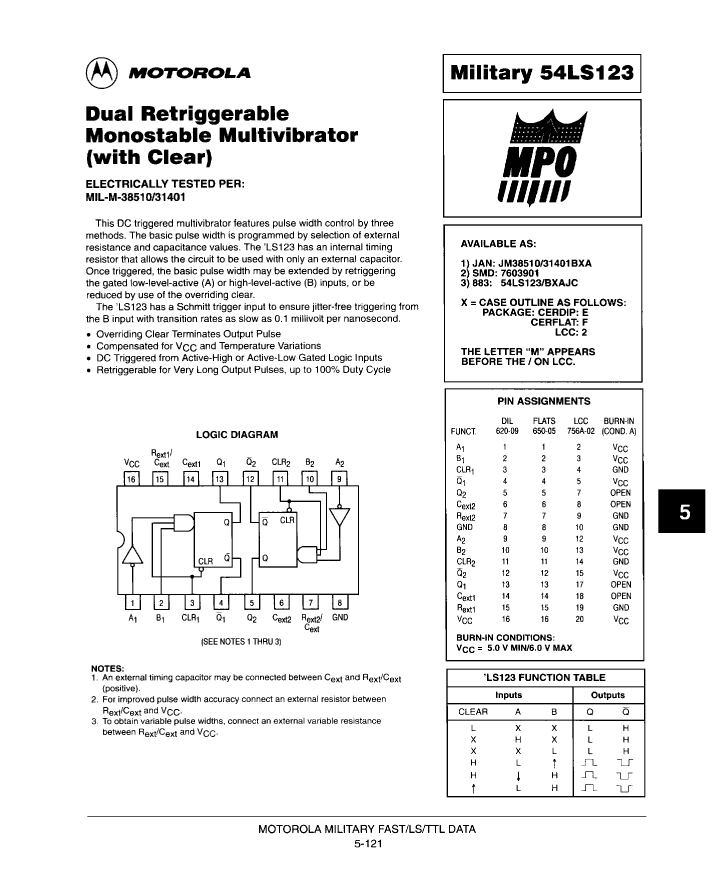

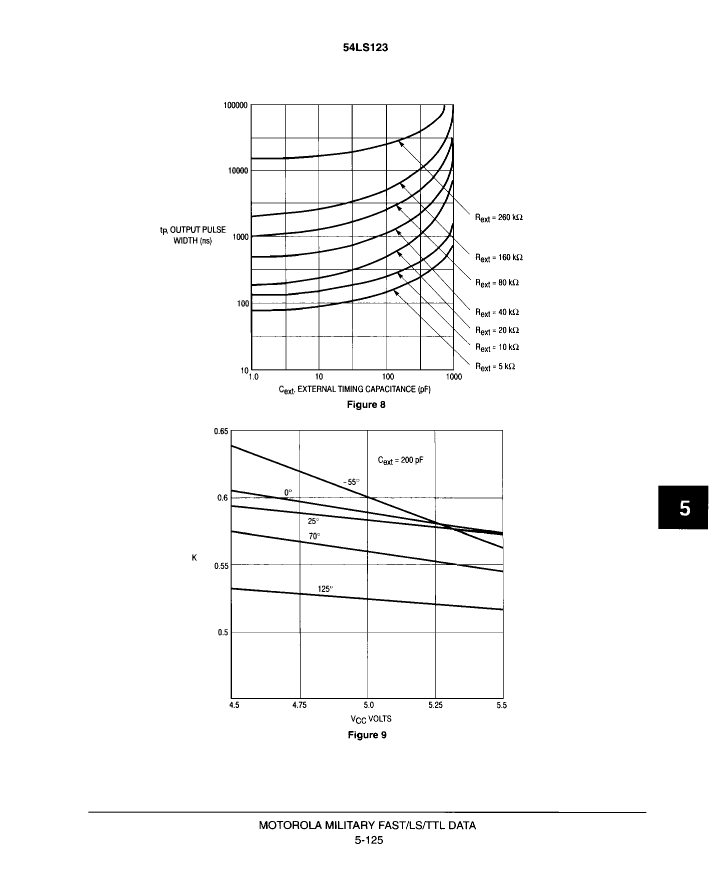

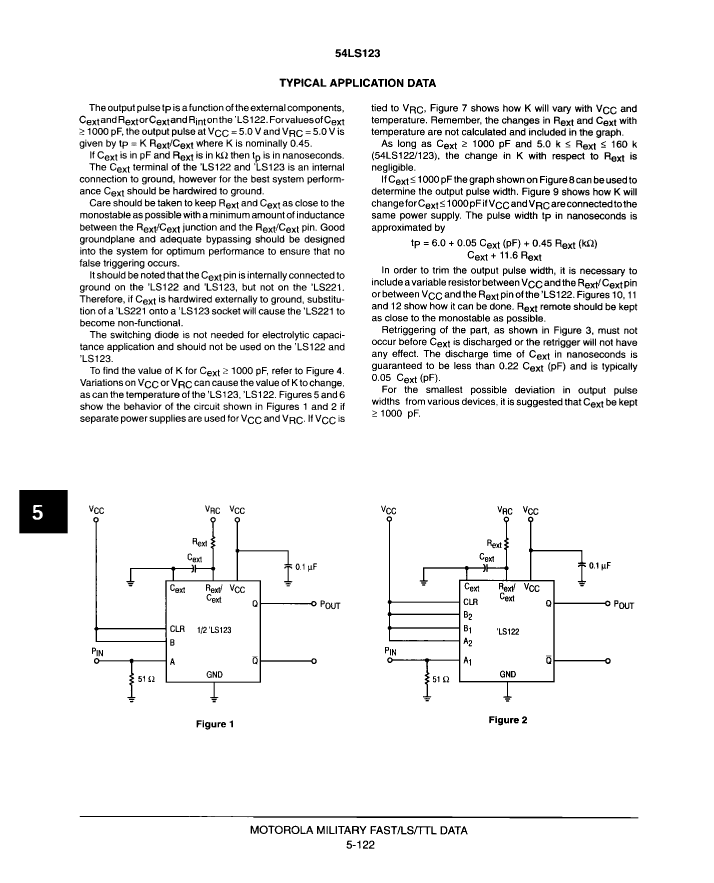

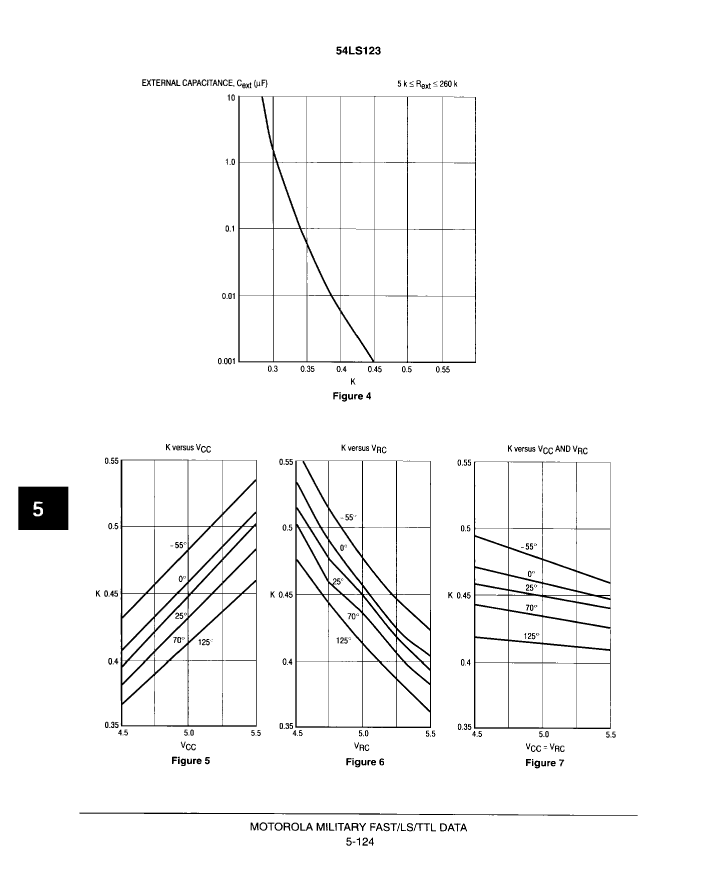

LS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CDFP16, CERAMIC, FP-16

54LS123/BFAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO
series	LS
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	20 mA
propagation delay (tpd)	92 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.415 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS123/BFAJC Related Products

	54LS123/BFAJC	54LS123M/B2AJC	7603901EA	76039012X	7603901FA	7603901FX	54LS123/BEAJC	7603901EX	76039012A
Description	LS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CDFP16, CERAMIC, FP-16	LS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CQCC20, CERAMIC, LCC-20	Monostable Multivibrator, LS Series, 2-Func, TTL, CDIP16, CERDIP-16	LS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CQCC20	LS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CDFP16, CERAMIC, DFP-16	Monostable Multivibrator, LS Series, 2-Func, TTL, CDFP16, CERAMIC, FP-16	Monostable Multivibrator, LS Series, 2-Func, TTL, CDIP16, CERDIP-16	LS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CDIP16, CERAMIC, DIP-16	LS SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CQCC20, CERAMIC, LCC-20
package instruction	DFP, FL16,.3	CERAMIC, LCC-20	DIP,	QCCN,	DFP,	DFP,	CERDIP-16	DIP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO	RETRIGGERABLE	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO	RETRIGGERABLE	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F16	S-CQCC-N20	R-GDIP-T16	S-CQCC-N20	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16	S-CQCC-N20
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	2	2	2	2	2	2	2	2	2
Number of functions	2	2	2	2	2	2	2	2	2
Number of terminals	16	20	16	20	16	16	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	DIP	QCCN	DFP	DFP	DIP	DIP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER
propagation delay (tpd)	92 ns	92 ns	92 ns	92 ns	92 ns	92 ns	92 ns	92 ns	92 ns
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD
Base Number Matches	1	1	1	1	1	1	1	1	1
Parts packaging code	DFP	-	DIP	-	DFP	-	-	DIP	QLCC
Contacts	16	-	16	-	16	-	-	16	20
length	9.65 mm	8.89 mm	19.3 mm	8.885 mm	9.65 mm	-	19.3 mm	-	8.885 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	-	50 pF	-	50 pF	-	50 pF
Maximum supply current (ICC)	20 mA	20 mA	20 mA	-	20 mA	-	20 mA	-	20 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	2.15 mm	1.9 mm	4.19 mm	1.9 mm	2.15 mm	-	4.19 mm	-	1.9 mm
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	-	2.54 mm	-	1.27 mm
width	6.415 mm	8.89 mm	7.62 mm	8.885 mm	6.415 mm	-	7.62 mm	-	8.885 mm
Maker	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
