Absolute encoders - modular bus covers

Optical sensing, end shaft

Multiturn encoder 13 bit ST / 16 bit MT, incremental tracks

CANopen / DeviceNet / EtherCAT / Profibus / SSI / fibre-optic

GXMMS + incremental

multivo

Features

– Encoder multiturn / bus cover

– Optical sensing

– Resolution: singleturn 13 bit, multiturn 16 bit

– End shaft ø12 mm / ø14 mm

– Extreme compact design

– High resistance to shock and vibrations

– Modular bus interfaces

–

CANopen/DeviceNet/EtherCAT/Profibus/SSI/fibre-

optic

– Code continuity check optional by bus

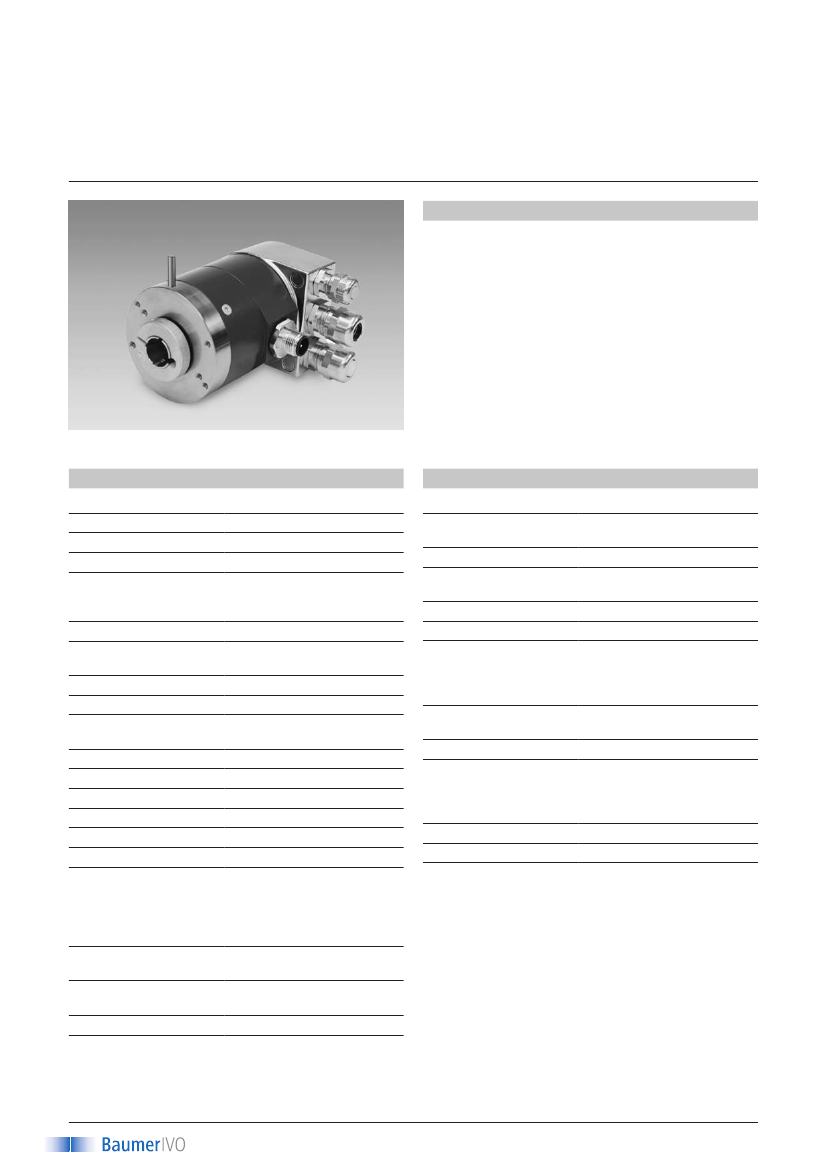

GXMMS with modular bus cover

Technical data - electrical ratings

Voltage supply

Consumption w/o load

Initializing time (typ.)

Interfaces

10...30 VDC

≤100 mA (24 VDC)

250 ms after power on

Profibus-DPV0 / V2, CANopen,

DeviceNet, EtherCAT, Fiber-

optic bus, SSI

Multiturn

Rotary switch in bus cover

(type-specific)

8192 / 13 bit

65536 / 16 bit

2048 pulses A90°B

+ inverted

±0.025°

Optical

Binary

CW/CCW programmable

DIN EN 61000-6-2

DIN EN 61000-6-4

Steps per revolution

Number of revolutions

Preset

Scaling

Rotational direction

Position or parameter error

Multiturn sensing

DUO-LED integrated in bus

cover

UL approval / E63076

Weight approx.

E-connection

Operating temperature

Relative humidity

Resistance

Reverse polarity protection Yes

– Two incremental tracks A and B

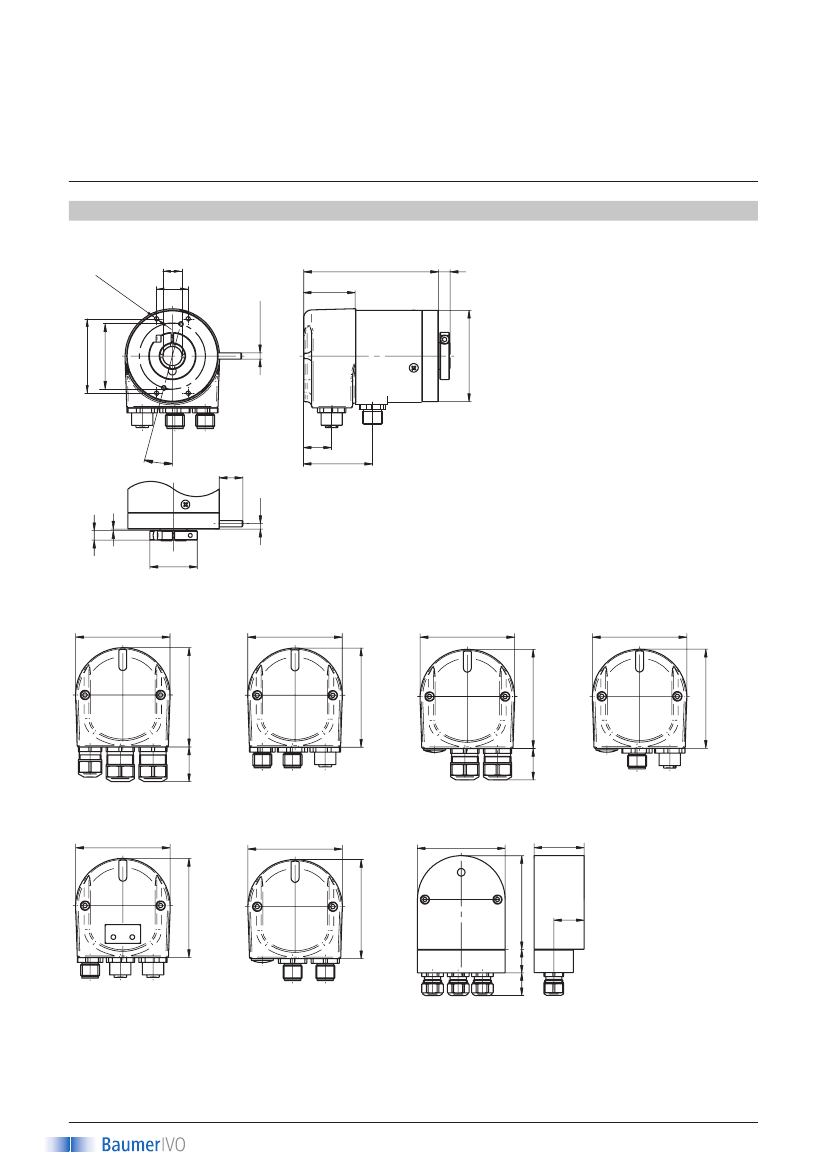

Technical data - mechanical design

Housing

Shaft

Protection DIN EN 60529

Operating speed

Starting torque

Rotor moment of inertia

Materials

ø58 mm

ø12 mm end shaft

ø14 mm end shaft

IP 54

≤6000 rpm (mechanical)

≤6000 rpm (electric)

≤0.015 Nm IP 54

20 gcm²

Housing: steel

Flange: steel

Bus cover: zinc die-cast

or aluminium

-25...+85 °C

-40...+85 °C (optional)

DIN EN 60068-2-6

Vibration 10 g, 16-2000 Hz

DIN EN 60068-2-27

Shock 200 g, 6 ms

720 g

Bus cover

Subject to modification in technic and design. Errors and omissions excepted.

28/11/2008

Function

User address

Steps per turn

Number of turns

Incremental output

Absolute accuracy

Sensing method

Code

Code sequence

Interference immunity

Emitted interference

Programmable

parameters

95 % non-condensing

Diagnostic functions

Status indicator

Approval

www.baumerivo.com
