31-208-1051: DescriptionRF Connector Adapter, BNC-BNC-BNC, Cable Mount, Female-Male-Female, Jack-plug-jack; CategoryThe connector The connector; File Size195KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

31-208-1051 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-208-1051	-	-	View	Buy Now

31-208-1051 Overview

RF Connector Adapter, BNC-BNC-BNC, Cable Mount, Female-Male-Female, Jack-plug-jack

31-208-1051 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Adapter type	BNC-BNC-BNC
Other features	VSWR MAX AT 3 GHZ
Body/casing type	JACK-PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-MALE-FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

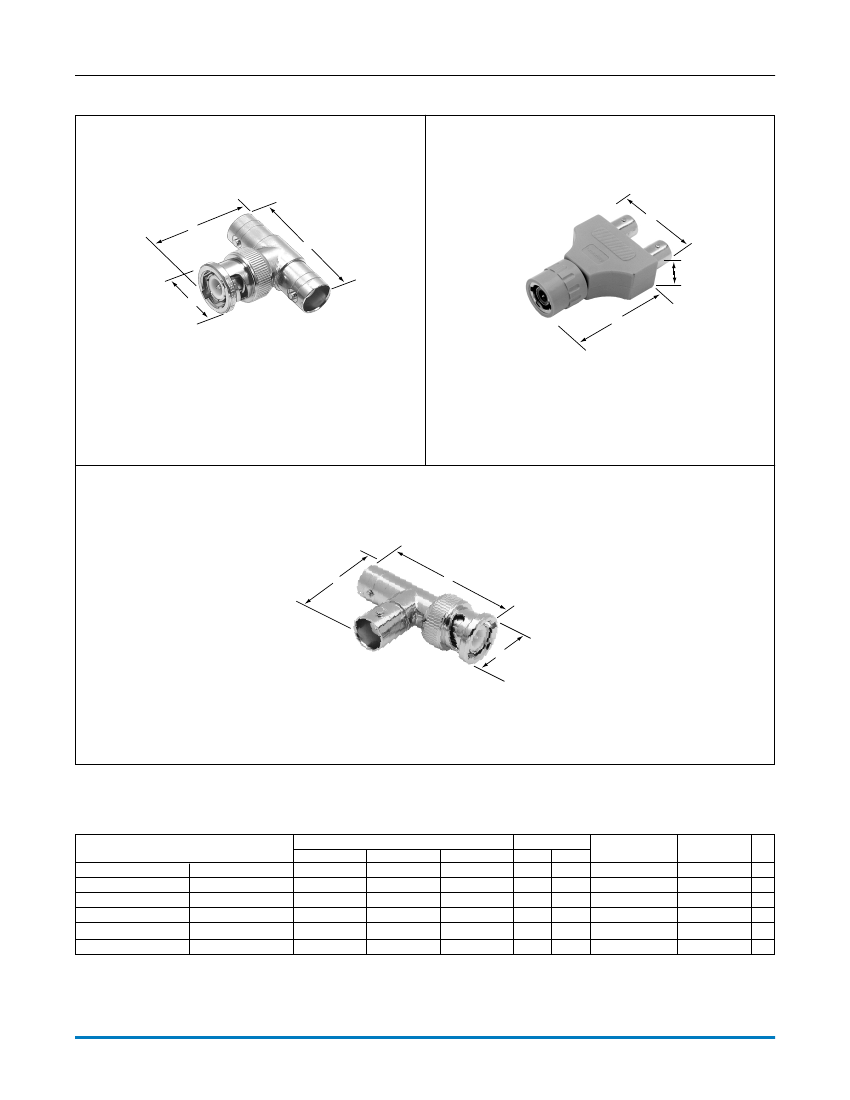

BNC 50 ohm

Tee Adapters

Fig. 1

Fig. 2

Amphenol

®

b

c

a

c

b

a

Tee Adapters - Jack-Plug-Jack

31-208

31-208-RFX

31-208-1051

31-2208

Fig. 3

BNC Overmolded Tee Adapter

Jack-Plug-Jack

31-5693

c

a

b

BNC Tee Adapter

Plug-Jack-Jack

21900

BNC TEE ADAPTERS

Description

Tee

Tee, Overmolded

Tee

Jack-Plug-Jack

Plug-Jack-Jack

Dimensions, inches (millimeters)

a

b

c

1.28(32.5)

.562(14.3)

1.06(27.0)

1.30(33.0)

1.28(32.5)

1.72(43.6)

1.53(38.9)

.571(14.5)

.562(14.3)

1.32(33.5)

.375(9.52)

1.04(26.3)

1.06(27.0)

.550(14.0)

1.00(25.4)

Notes

Plt.

Ins.

P1

D1

P7

P15

P4

P7

P1

D23

D1

D14

D9

Military

Number

UG-274A/U

—

UG-274B/U

—

Amphenol

Number

31-208*

31-208-RFX

31-208-1051

31-2208*

31-5693

21900*

Fig.

1

2

3

v

* recognized under the component program of U.L, Inc.

v

distributor stocked
