54ALS04/BCAJC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 54ALS04/BCAJC

Preview

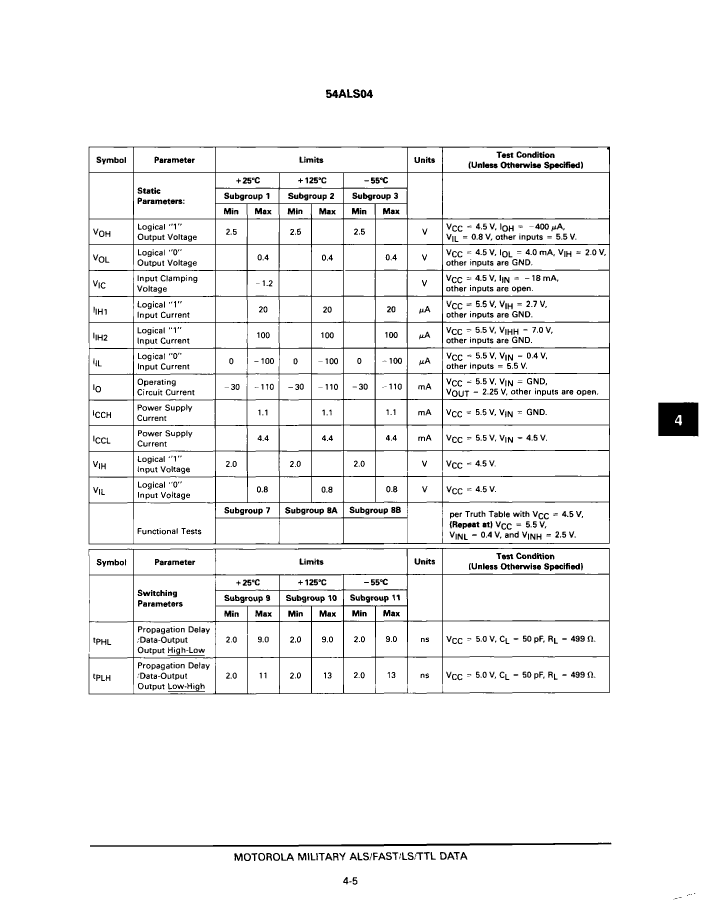

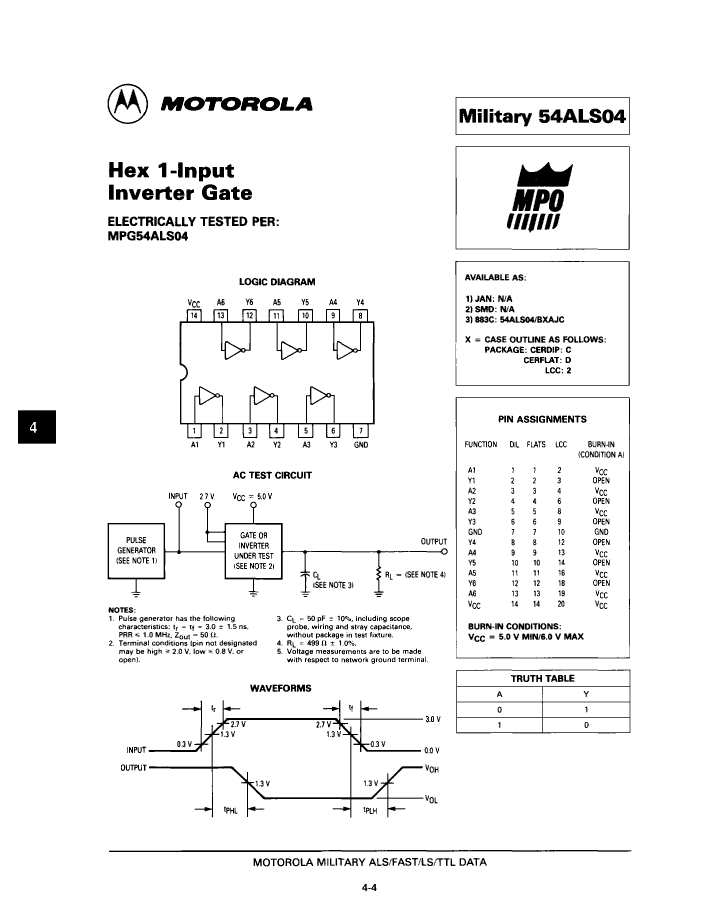

54ALS04/BCAJC: DescriptionALS SERIES, HEX 1-INPUT INVERT GATE, CDIP14, CERDIP-14; Categorylogic logic; File Size46KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54ALS04/BCAJC Overview

ALS SERIES, HEX 1-INPUT INVERT GATE, CDIP14, CERDIP-14

54ALS04/BCAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
length	19.495 mm
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.004 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	4.4 mA
Prop。Delay @ Nom-Sup	13 ns
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54ALS04/BCAJC Related Products

	54ALS04/BCAJC	54ALS04/B2AJC	54ALS04/BDAJC
Description	ALS SERIES, HEX 1-INPUT INVERT GATE, CDIP14, CERDIP-14	Inverter, ALS Series, 6-Func, 1-Input, TTL, CQCC20, CERAMIC, LCC-20	ALS SERIES, HEX 1-INPUT INVERT GATE, CDFP14, CERAMIC, FP-14
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	QCCN, LCC20,.35SQ	DFP, FL14,.3
Reach Compliance Code	unknown	unknown	unknown
series	ALS	ALS	ALS
JESD-30 code	R-GDIP-T14	S-CQCC-N20	R-GDFP-F14
JESD-609 code	e0	e0	e0
length	19.495 mm	8.885 mm	9.65 mm
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.004 A	0.004 A	0.004 A
Number of functions	6	6	6
Number of entries	1	1	1
Number of terminals	14	20	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCN	DFP
Encapsulate equivalent code	DIP14,.3	LCC20,.35SQ	FL14,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	4.4 mA	4.4 mA	4.4 mA
Prop。Delay @ Nom-Sup	13 ns	13 ns	13 ns
propagation delay (tpd)	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	5.08 mm	1.9 mm	2.15 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	8.885 mm	6.415 mm
Base Number Matches	1	1	1
Parts packaging code	DIP	-	DFP
Contacts	14	-	14
