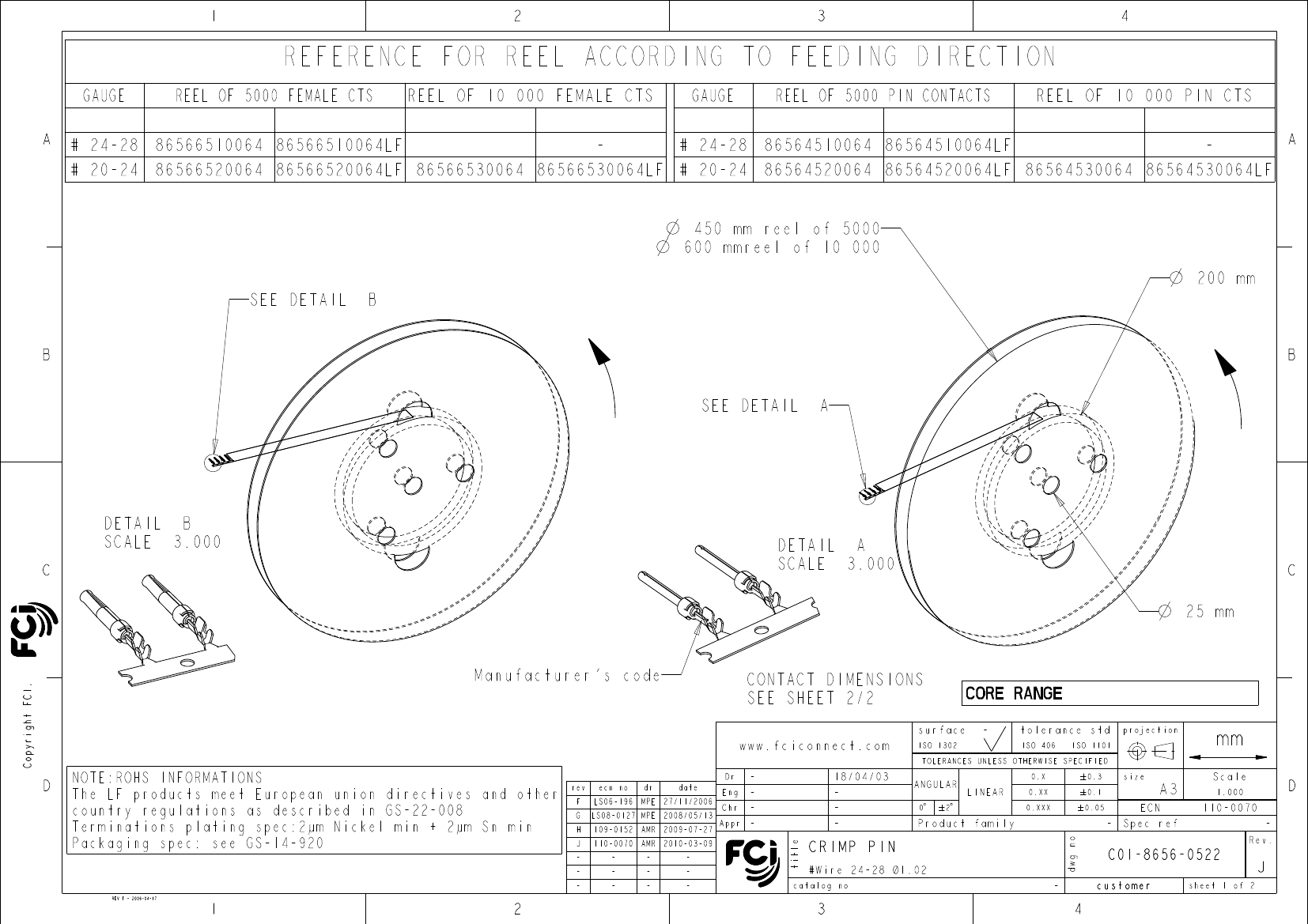

REFERENCE FOR REEL ACCORDING TO FEEDING DIRECTION
GAUGE
A
REEL OF 5000 FEMALE CTS REEL OF 10 000 FEMALE CTS
86566510064 86566510064LF
-
GAUGE
# 24-28
# 20-24
REEL OF 5000 PIN CONTACTS
86564510064 86564510064LF
REEL OF 10 000 PIN CTS
-
A
# 24-28
# 20-24
86566520064 86566520064LF 86566530064 86566530064LF
86564520064 86564520064LF 86564530064 86564530064LF
450 mm reel of 5000
600 mm reel of 10 000
200 mm
SEE DETAIL
B
B
B
SEE DETAIL
A
DETAIL B
SCALE 3.000
C
DETAIL A
SCALE 3.000
25 mm
C
Copyright FCI.
Manufacturer's code
CONTACT DIMENSIONS
SEE SHEET 2/2
surface
CORE RANGE
-
tolerance std
ISO 406
ISO 1101
projection
www.fciconnect.com
ISO 1302
mm
Scale
1.000
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
dwg no
title
NOTE:ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec:2µm Nickel min + 2µm Sn min
Packaging spec: see GS-14-920
Dr
rev
F
G
H
J
-
-
-
ecn no
LS06-196
I09-0152
I10-0070
-
-
-
dr
date
Eng
Chr
Appr
MPE 27/11/2006
AMR 2009-07-27
AMR 2010-03-09
-
-
-
-
-
-
-
-
-
-
18/04/03
-
-
-
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
- Spec ref
D
-
Rev.
LS08-0127 MPE 2008/05/13
I10-0070
Product family
CRIMP PIN
#Wire 24-28 Ø1.02
-
C01-8656-0522
customer
sheet
1 of 2
J
catalog no
REV F - 2006-04-17
1
2
3
PDM: Rev:J
STATUS:
Released
4
Printed: Apr 24, 2010
.
1
2
3
4
NOTES:
1-Material: Phosphor bronze,thickness 0.20
socket :Phosphor bronze
2-Finish on contact area:
-termination 064.. gold flash
finish on termination:bright tin over nickel
3-Wire range:20 to 28 AWG(see ref sheet 1/2)
4-Max outer dia of wire insulator:
-1.73 mm for contact #20-24
-1.02 mm for contact #24-28
5-Current carrying capacity per contact:
5.Amps max when crimped to #20 AWG
5 Amps max when crimped to #22 AWG
3 Amps max when crimped to #24 AWG
2 Amps max when crimped to #26 AWG
1 Amps max when crimped to #28 AWG
6-After 5 insertions into connector,
contact retention must be 5 pounds axial load min
7-When contact is crimped to 20 AWG,the insulation
support crimped height must be 1.78 mm max to ensure
a proper insertion into housing
6-Packaging:Reel
14.20 max

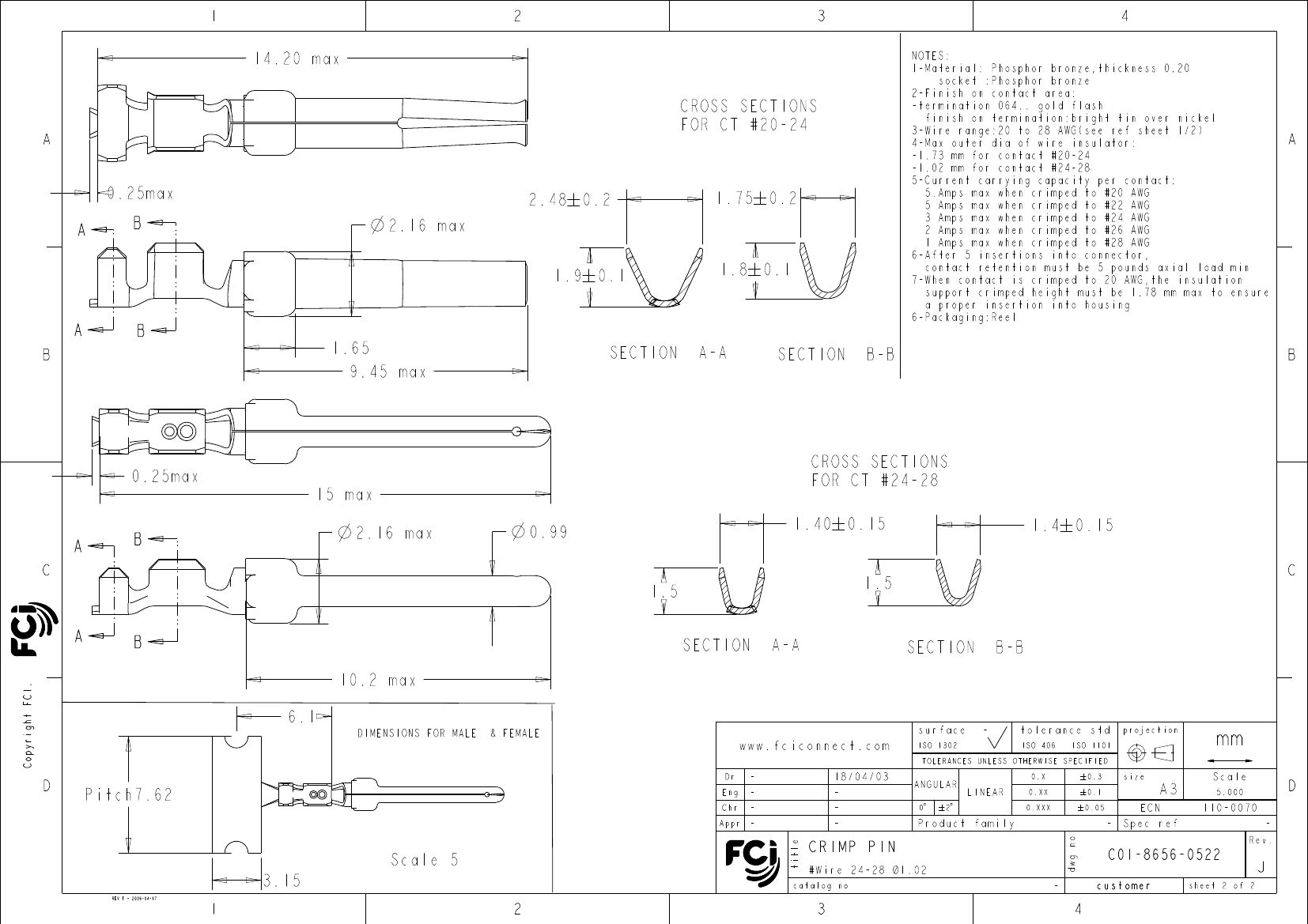

CROSS SECTIONS
FOR CT #20-24
A
A
0.25 max
A
B
2.16 max
2.48 0.2
1.75 0.2
1.9 0.1
A
B
1.8 0.1
B
1.65
9.45 max
SECTION
A-A
SECTION
B-B
B
0.25 max
15 max
A
C
CROSS SECTIONS
FOR CT #24-28
0.99
1.40 0.15
1.4 0.15
C
B
2.16 max
1.5
A
Copyright FCI.
1.5
B
10.2 max
6.1
DIMENSIONS FOR MALE
& FEMALE
SECTION
A-A
SECTION
B-B
surface
-
tolerance std
ISO 406
ISO 1101
projection
www.fciconnect.com
ISO 1302
mm
Scale
5.000
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
Dr
-
-
-
-
title
18/04/03
-
-
-
Pitch7.62
Eng
Chr
Appr
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
- Spec ref
D
-
Rev.
I10-0070
Product family
dwg no
Scale 5
3.15
REV F - 2006-04-17
CRIMP PIN
#Wire 24-28 Ø1.02
-
C01-8656-0522
customer
sheet
2 of 2
J
catalog no
1
2
3
PDM: Rev:J
STATUS:
Released
4
Printed: Apr 24, 2010
.
