3069F: DescriptionRF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric Compare View All

3069F Overview

RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3069F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	TNC-F, I/P POWER-MAX(PEAK)=1000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

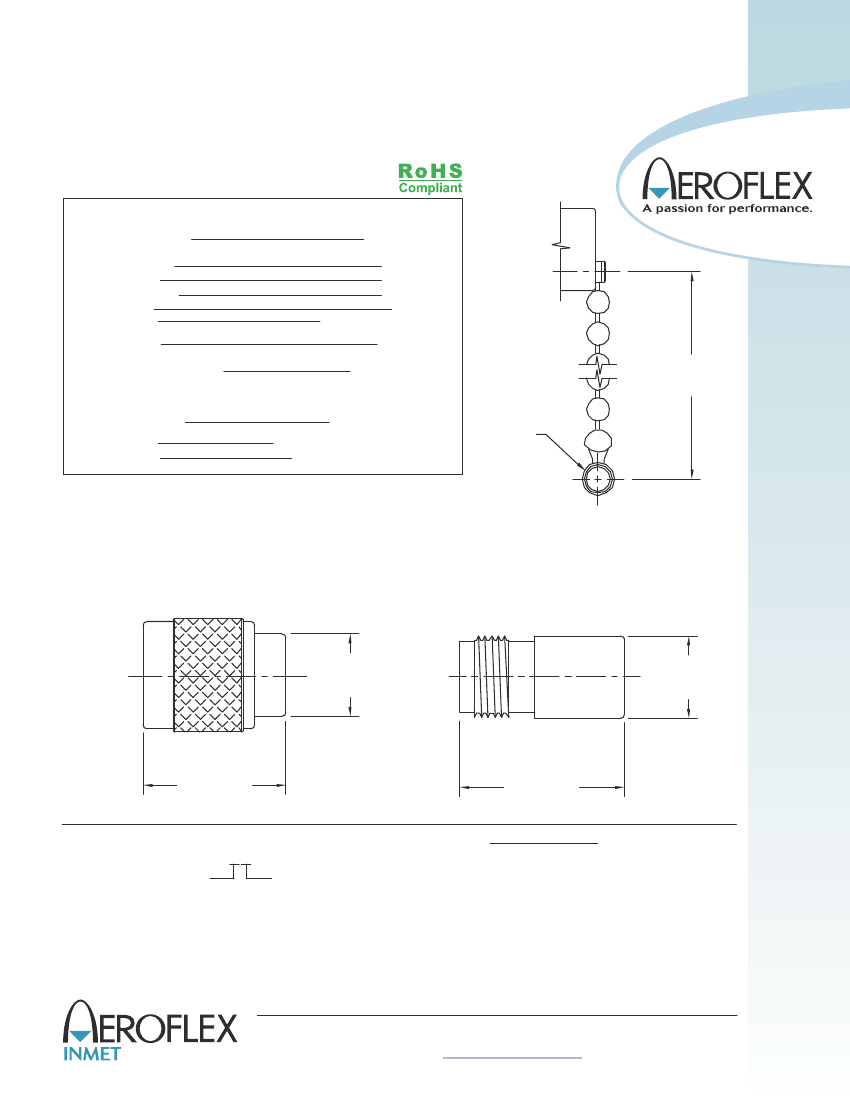

TERMINATIONS

TNC, DC - 1

2.4 GHz, 2 Watts

SPECIFICATIONS:

Models: 3069M, 3069F, 3069MC, 3069FC

Electrical:

Frequency Range

VSWR

DC - 4 GHz

4 - 8 GHz

8 - 1 GHz

2.4

Impedance

Input Power

Peak Power

Operating Temp Range

DC - 1 GHz

2.4

1. 0:1 Max.

1. 5:1 Max.

1.25:1 Max.

50 Ohms

2 Watts Avg. @ +25°C

Derated Linearly to 0.25 Watts @ +1 C

1.0 kW Max.

(5uSec Pulse, .05% Duty Cycle)

-55°C to +1

25°C

3.5 [89] Long

Bead Chain

Mechanical:

TNC Connectors

Mates with MIL

-STD-348

Nickel Plated Brass

Gold Plated Beryllium Copper

Passivated Stainless Steel

Conductors

Bead Chain

Ø.13[3.3]

Thru

CHAIN DETAIL

Model Number:

3069M

TNC Male Connector

Model Number:

3069F

TNC Female Connector

Ø.44

[11.2]

Ø.44

[11.2]

.76 ±.05

[19.3 ±1.3]

.88 ±.05

[20.3 ±1.3]

Ordering Examples:

Model Number:

3069MC

DC - 1 GHz; TNC Male; Chain Included

2.4

Style

= No Chain

C = Chain Included

Model Number:

3069F

DC - 1 GHz; TNC Female; No Chain

2.4

Model Number:

3069M

DC - 1 GHz; TNC Male; No Chain

2.4

HOW TO ORDER:

Model Number:

3069XY

Connector Configuration

M = Male

F = Female

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

3069: REV F

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet

• inmetsales@aeroflex.com
