39A106-1: DescriptionRF Connector Adapter, SMA-SMA, Male-Male, Plug; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

39A106-1 Overview

RF Connector Adapter, SMA-SMA, Male-Male, Plug

39A106-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
Adapter type	SMA-SMA
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	PTFE
MIL compliance	NO
Manufacturer's serial number	SMA
Maximum operating frequency	18 GHz
Panel mounting	NO
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

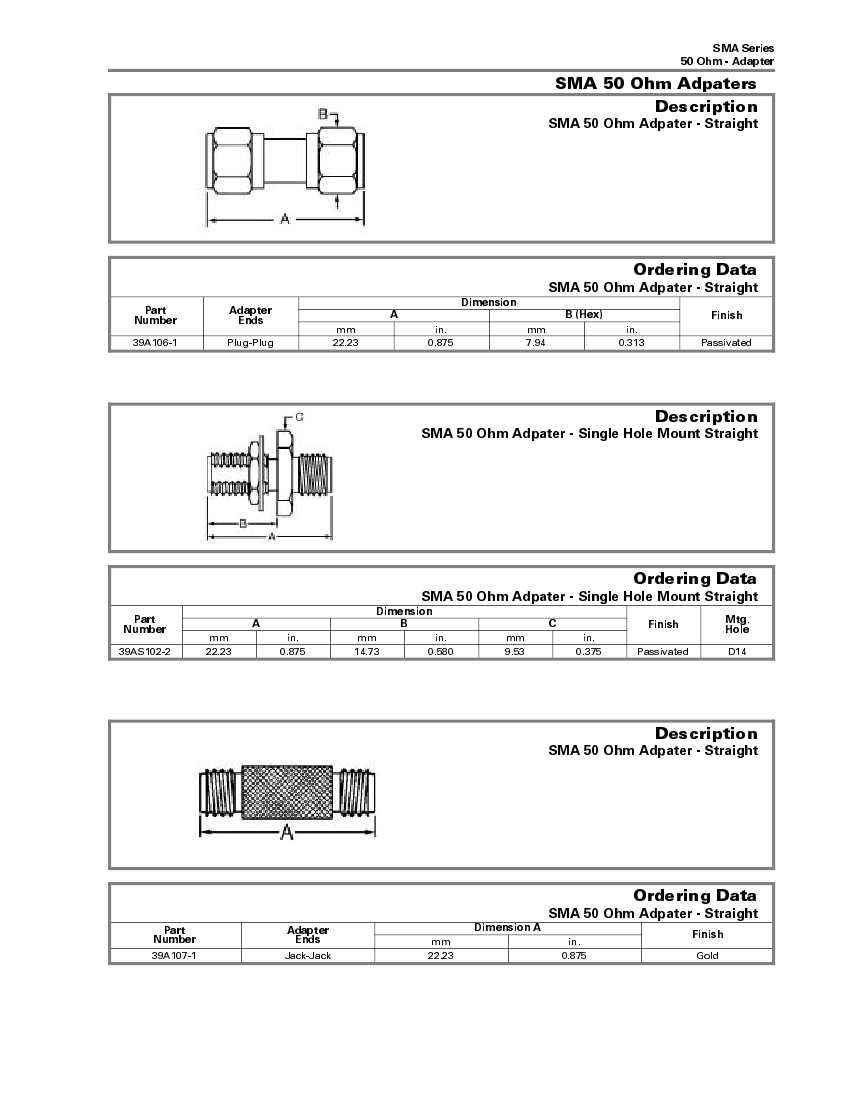

SMA 50 Ohm Adpater

Ohm - Adapter

50

- Straight

SMA 50 Ohm Adpaters

RF/Coaxial

Description

SMA Series

50 Ohm - Adapter

39A106-1

Part

Number

Plug-Plug

Adapter

Ends

mm

22.23

A

Dimension

SMA 50 Ohm Adpater - Straight

Ordering Data

Finish

in.

0.875

mm

7.94

B (Hex)

in.

0.313

Passivated

SMA 50 Ohm Adpater - Single Hole Mount Straight

Description

39AS102-2

Part

Number

mm

22.23

A

in.

0.875

mm

14.73

Dimension

B

SMA 50 Ohm Adpater - Single Hole Mount Straight

Ordering Data

Finish

in.

0.580

mm

9.53

C

in.

0.375

Passivated

Mtg.

Hole

D14

SMA 50 Ohm Adpater - Straight

Description

39A107-1

Part

Number

Jack-Jack

Adapter

Ends

mm

22.23

Dimension A

SMA 50 Ohm Adpater - Straight

Ordering Data

Finish

in.

0.875

Gold

RF/Coaxial

30-99

39A106-1 Related Products

	39A106-1	39AS102-2	39A107-1
Description	RF Connector Adapter, SMA-SMA, Male-Male, Plug	RF Connector Adapter, SMA-SMA, Panel Mount, Cable Mount, Female-Female	RF Connector Adapter, SMA-SMA, Cable Mount, Female-Female, Jack
Is it lead-free?	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown
Adapter type	SMA-SMA	SMA-SMA	SMA-SMA
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE	FEMALE-FEMALE	FEMALE-FEMALE
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB
insulator material	PTFE	PTFE	PTFE
MIL compliance	NO	YES	YES
Manufacturer's serial number	SMA	SMA	SMA
Maximum operating frequency	18 GHz	18 GHz	18 GHz
Panel mounting	NO	YES	NO
voltage standing wave ratio	1.33	1.33	1.33
Base Number Matches	1	1	1
Body/casing type	PLUG	-	JACK
Other features	-	INDUSTRY STANDARD:MIL-C-39012, TWO WAY SMA ADAPTER	INDUSTRY STANDARD:MIL-C-39012, TWO WAY SMA ADAPTER
Installation type	-	CABLE	CABLE
