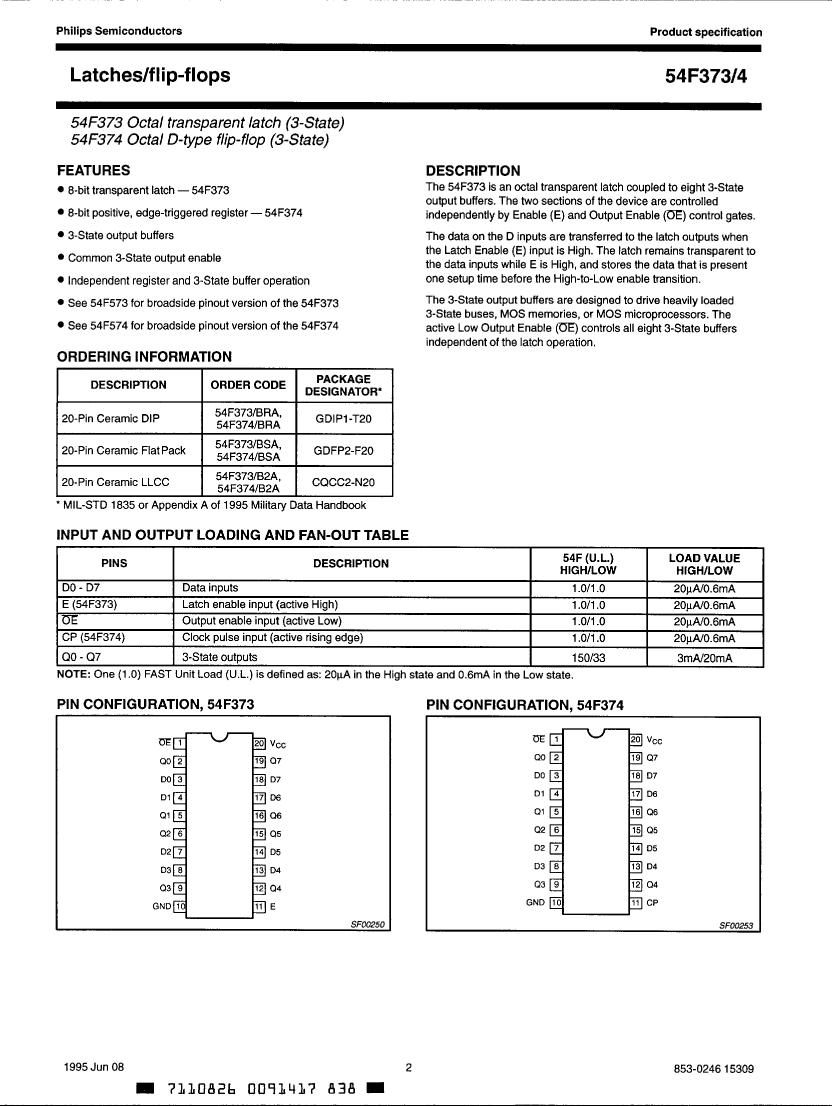

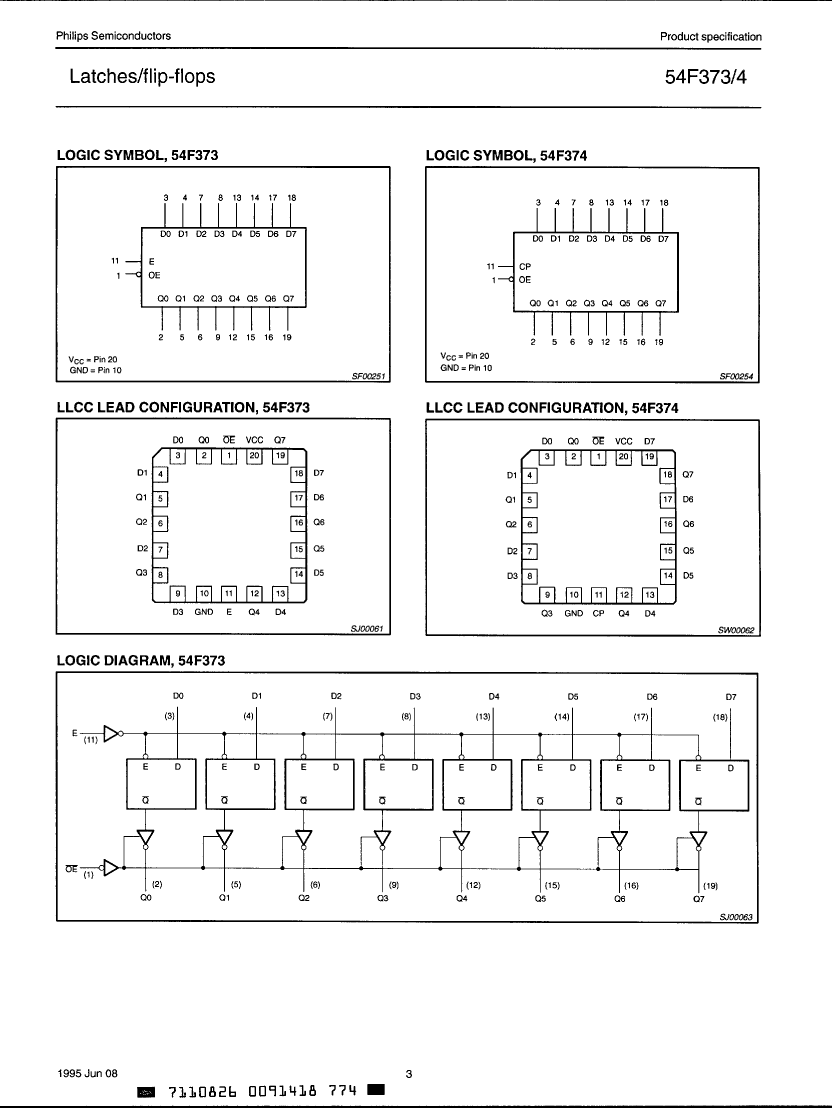

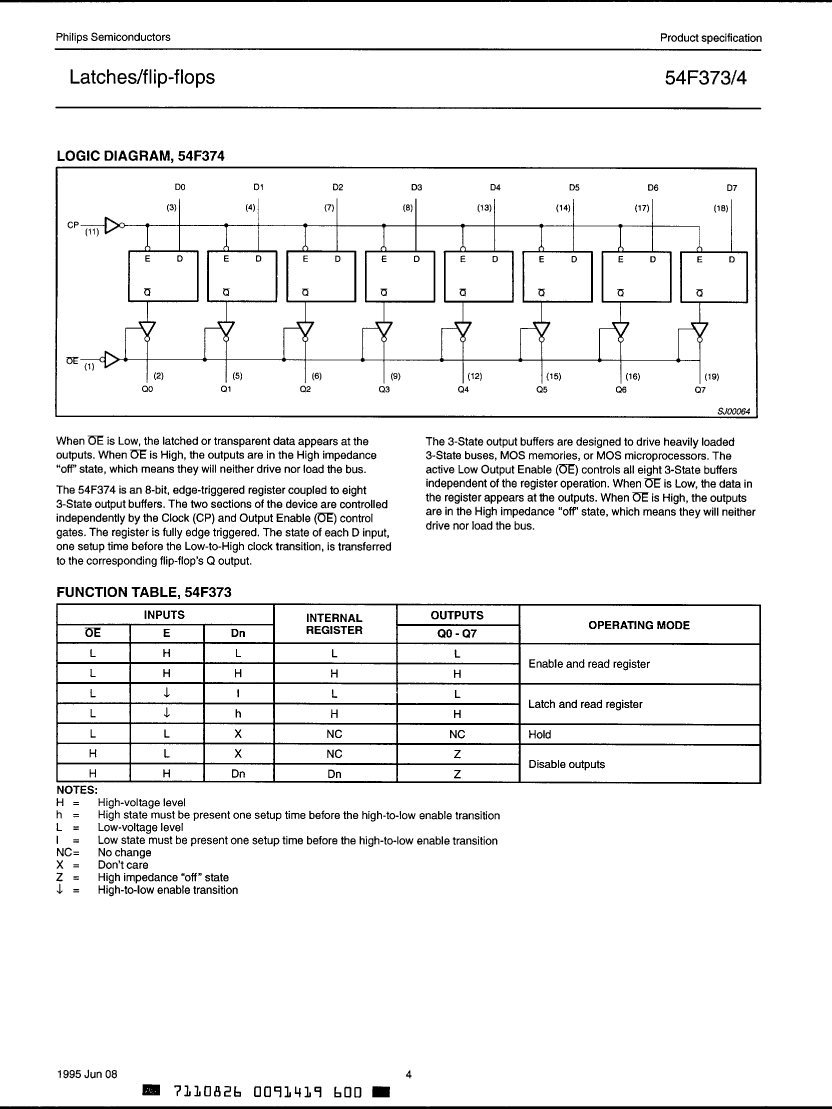

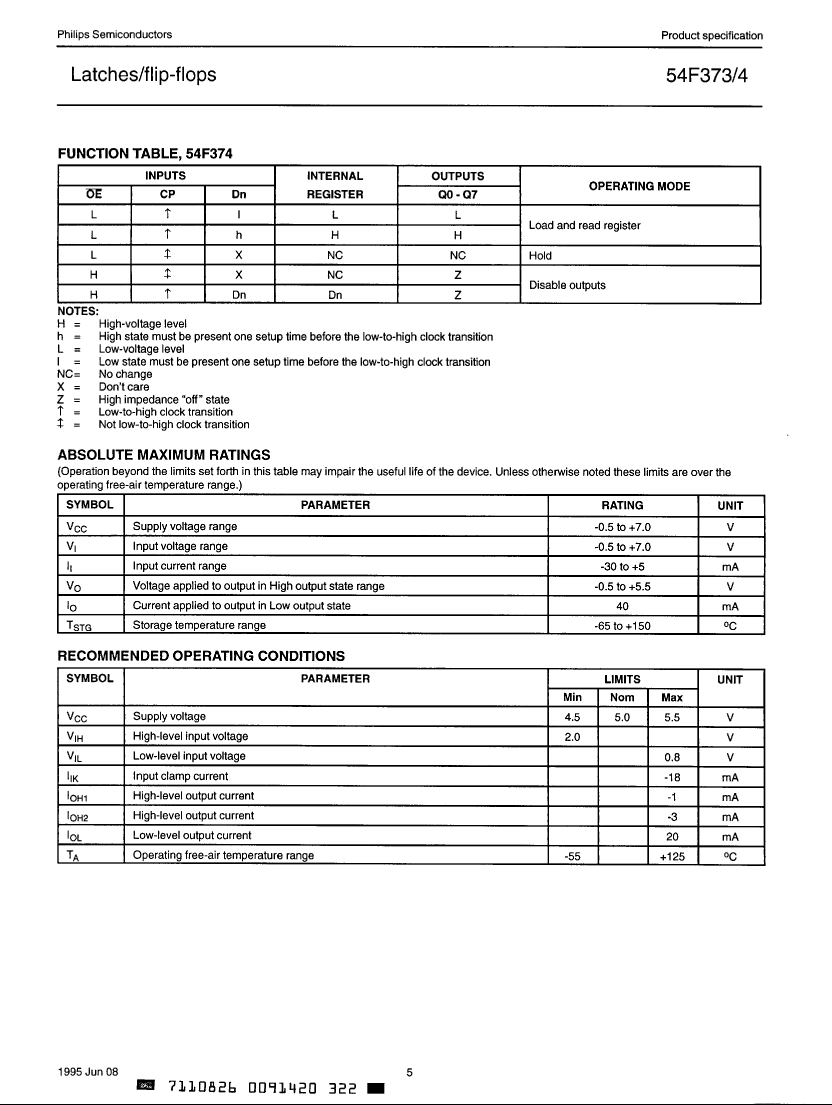

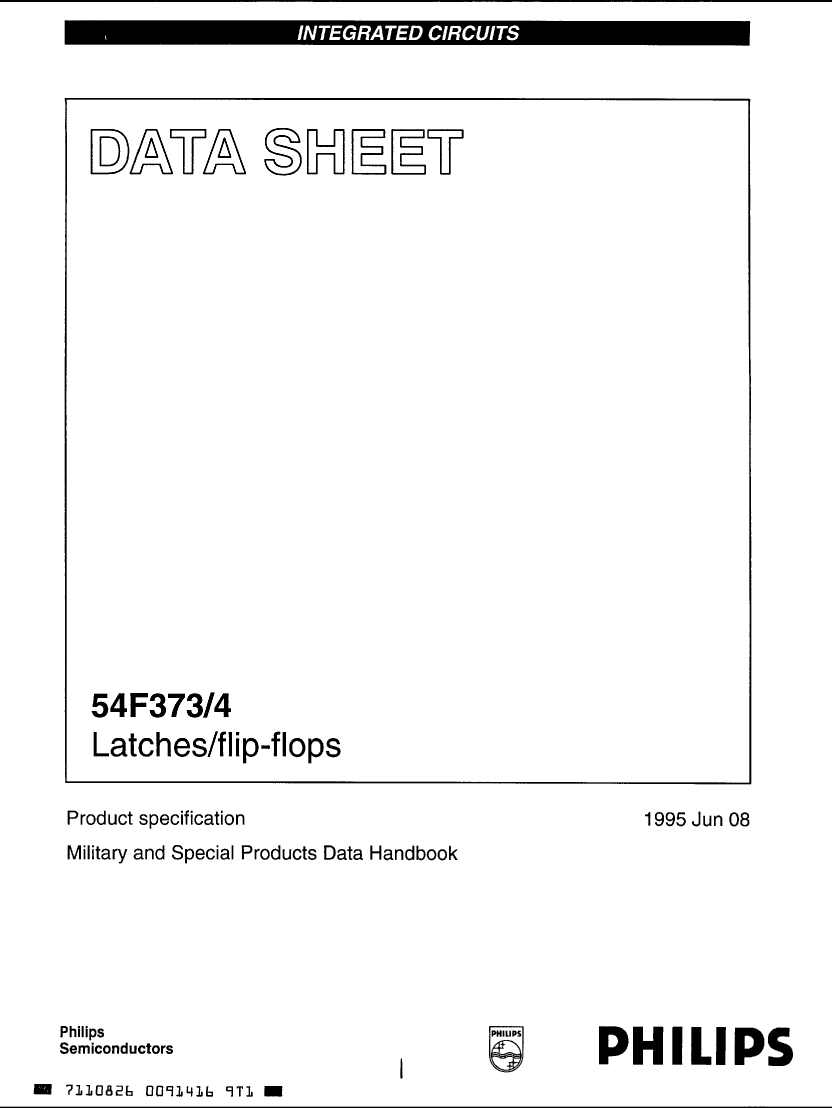

Preview

54F373/B2A: DescriptionD Latch, 1-Func, 8-Bit, TTL, CQCC20; Categorylogic logic; File Size471KB，9 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54F373/B2A Overview

D Latch, 1-Func, 8-Bit, TTL, CQCC20

54F373/B2A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	D LATCH
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

54F373/B2A Related Products

	54F373/B2A	54F374/BRA	54F374/B2A
Description	D Latch, 1-Func, 8-Bit, TTL, CQCC20	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDIP20	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CQCC20
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	DIP, DIP20,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	S-XQCC-N20	R-XDIP-T20	S-XQCC-N20
JESD-609 code	e0	e0	e0
Logic integrated circuit type	D LATCH	D FLIP-FLOP	D FLIP-FLOP
Number of functions	1	8	8
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP	QCCN
Encapsulate equivalent code	LCC20,.35SQ	DIP20,.3	LCC20,.35SQ
Package shape	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD
Base Number Matches	1	1	1
Maker	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Maximum Frequency@Nom-Sup	-	60000000 Hz	60000000 Hz
MaximumI(ol)	-	0.02 A	0.02 A
Maximum supply current (ICC)	-	86 mA	86 mA
Trigger type	-	POSITIVE EDGE	POSITIVE EDGE
