54LS03/BDAJC: DescriptionLS SERIES, QUAD 2-INPUT NAND GATE, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size52KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS03/BDAJC Overview

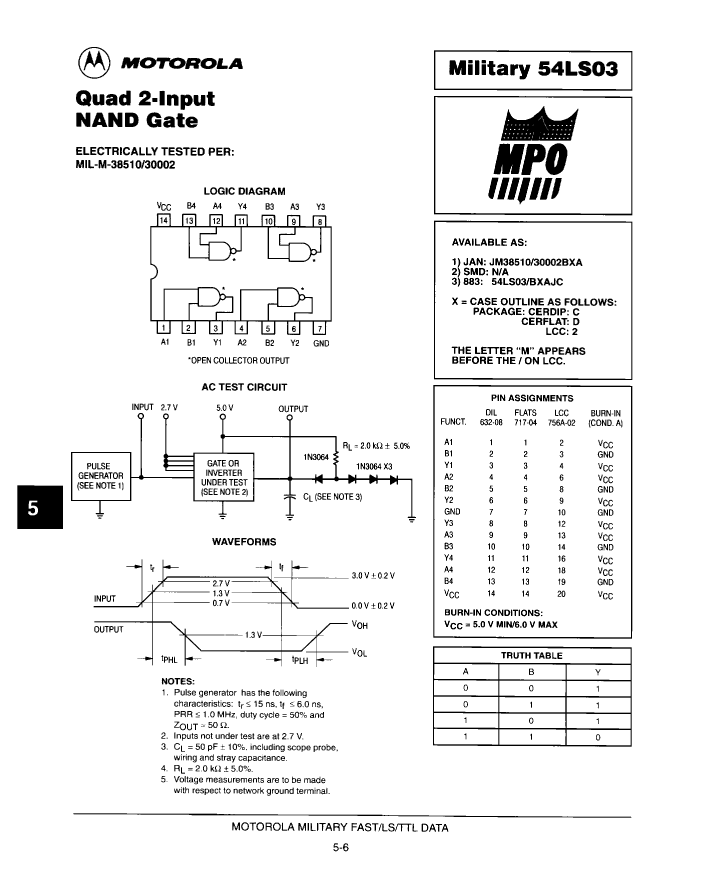

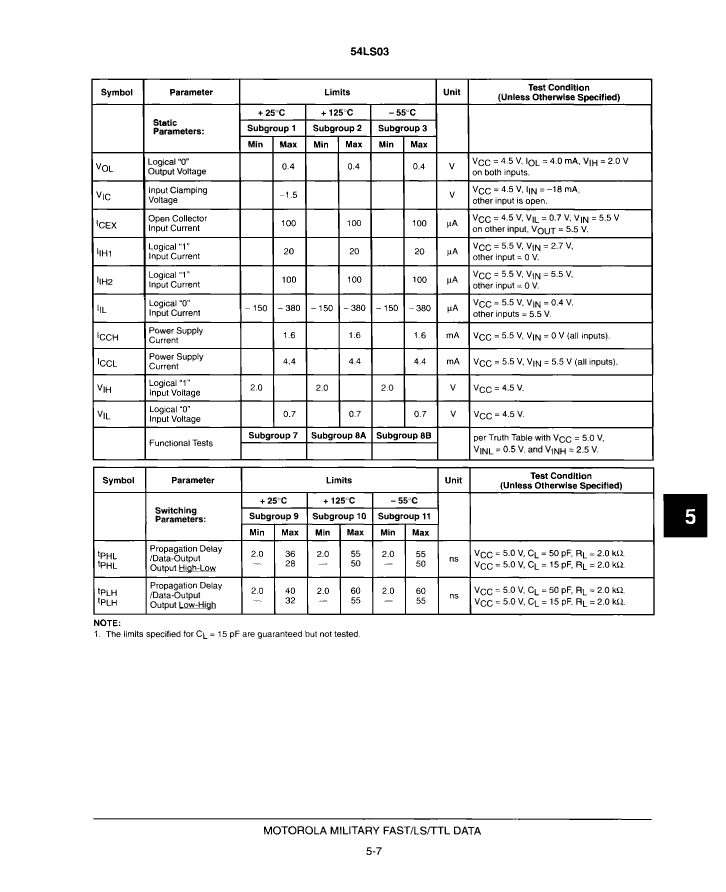

LS SERIES, QUAD 2-INPUT NAND GATE, CDFP14, CERAMIC, FP-14

54LS03/BDAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
length	9.65 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	4.4 mA
Prop。Delay @ Nom-Sup	60 ns
propagation delay (tpd)	50 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.415 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS03/BDAJC Related Products

	54LS03/BDAJC	54LS03M/B2AJC	54LS03/BCAJC
Description	LS SERIES, QUAD 2-INPUT NAND GATE, CDFP14, CERAMIC, FP-14	LS SERIES, QUAD 2-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20	LS SERIES, QUAD 2-INPUT NAND GATE, CDIP14, CERDIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DFP, FL14,.3	CERAMIC, LCC-20	CERDIP-14
Reach Compliance Code	unknown	unknown	unknown
series	LS	LS	LS
JESD-30 code	R-GDFP-F14	S-CQCC-N20	R-GDIP-T14
JESD-609 code	e0	e0	e0
length	9.65 mm	8.885 mm	19.495 mm
Load capacitance (CL)	15 pF	15 pF	15 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4
Number of entries	2	2	2
Number of terminals	14	20	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	QCCN	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	4.4 mA	4.4 mA	4.4 mA
propagation delay (tpd)	50 ns	50 ns	50 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.15 mm	1.9 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.415 mm	8.885 mm	7.62 mm
Base Number Matches	1	1	1
MaximumI(ol)	0.004 A	0.004 A	-
Encapsulate equivalent code	FL14,.3	LCC20,.35SQ	-
power supply	5 V	5 V	-
Prop。Delay @ Nom-Sup	60 ns	60 ns	-
Schmitt trigger	NO	NO	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
Maker	-	Motorola ( NXP )	Motorola ( NXP )
