350211-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 350211-3

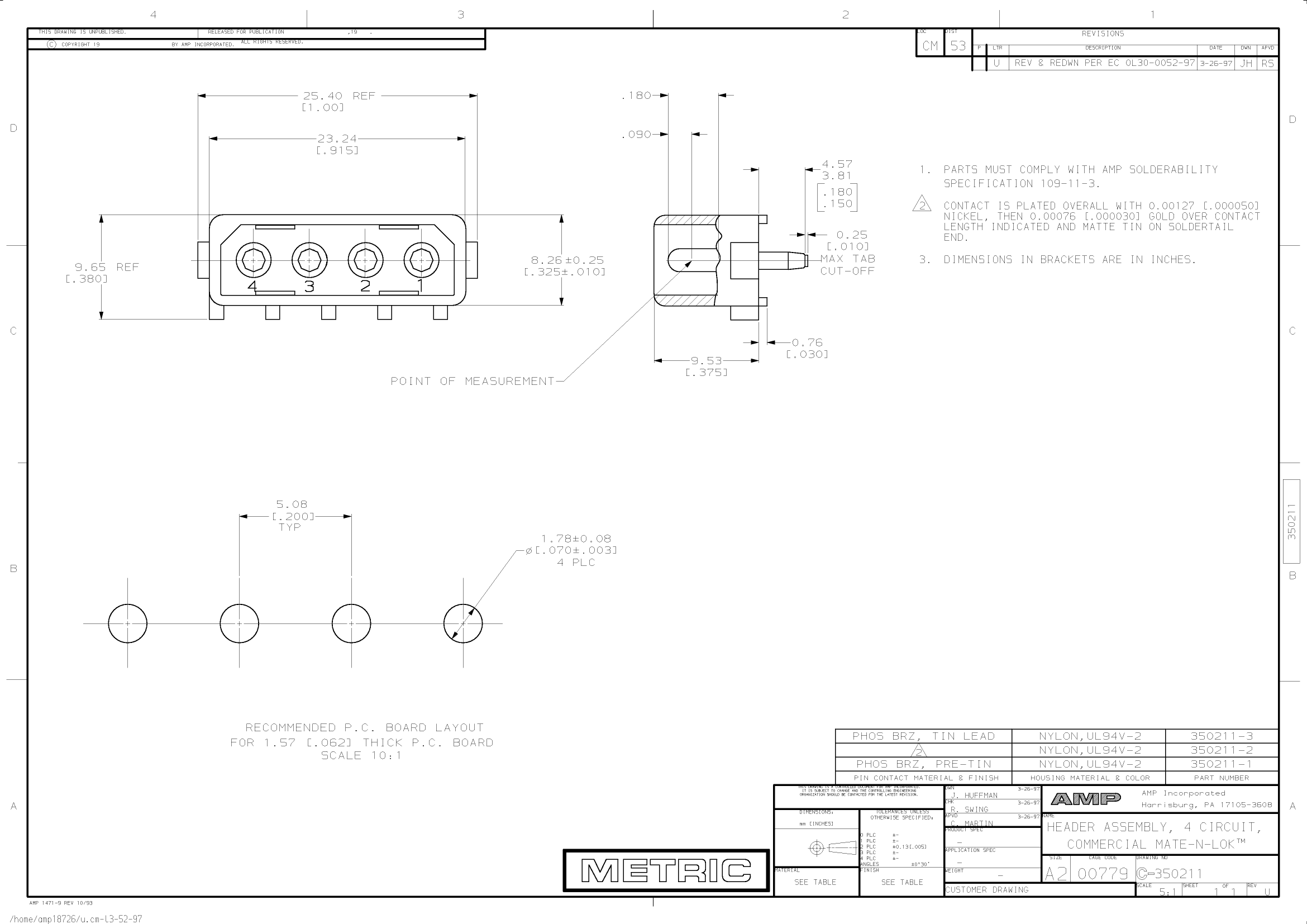

350211-3: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

350211-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	350211-3	-	-	View	Buy Now

350211-3 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle

350211-3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.38 inch
subject depth	0.405 inch
body length	1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	50 Cycles
maximum insertion force	22.24 N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	350211
Plug contact pitch	0.2 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
polarization key	ENDS
Rated current (signal)	12 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.18 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	3.1136 N
Base Number Matches	1

Preview

Download Datasheet

View All

350211-3 Related Products

	350211-3	350211-1	350211-2
Description	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle,	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle,
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
body width	0.38 inch	0.38 inch	0.38 inch
subject depth	0.405 inch	0.405 inch	0.405 inch
body length	1 inch	1 inch	1 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN-PB	NOT SPECIFIED	AU ON NI
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	3 mΩ	3 mΩ	3 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Durability	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	22.24 N	22.24 N	22.24 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	NYLON	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	350211	350211	350211
Plug contact pitch	0.2 inch	0.2 inch	0.2 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	1	1	1
Number of rows loaded	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	ENDS	ENDS	ENDS
Rated current (signal)	12 A	12 A	12 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.18 inch	0.165 inch	0.165 inch
Terminal pitch	5.08 mm	5.08 mm	5.08 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4
Evacuation force-minimum value	3.1136 N	3.1136 N	3.1136 N
Contact completed and terminated	TIN/LEAD	-	TIN
Objectid	-	1177533472	1177533473
YTEOL	-	7.5	7.5
