39P121-8: DescriptionRF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

39P121-8 Overview

RF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug

39P121-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	SMA
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	18 GHz
Panel mounting	NO
Termination type	CRIMP SOLDER
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

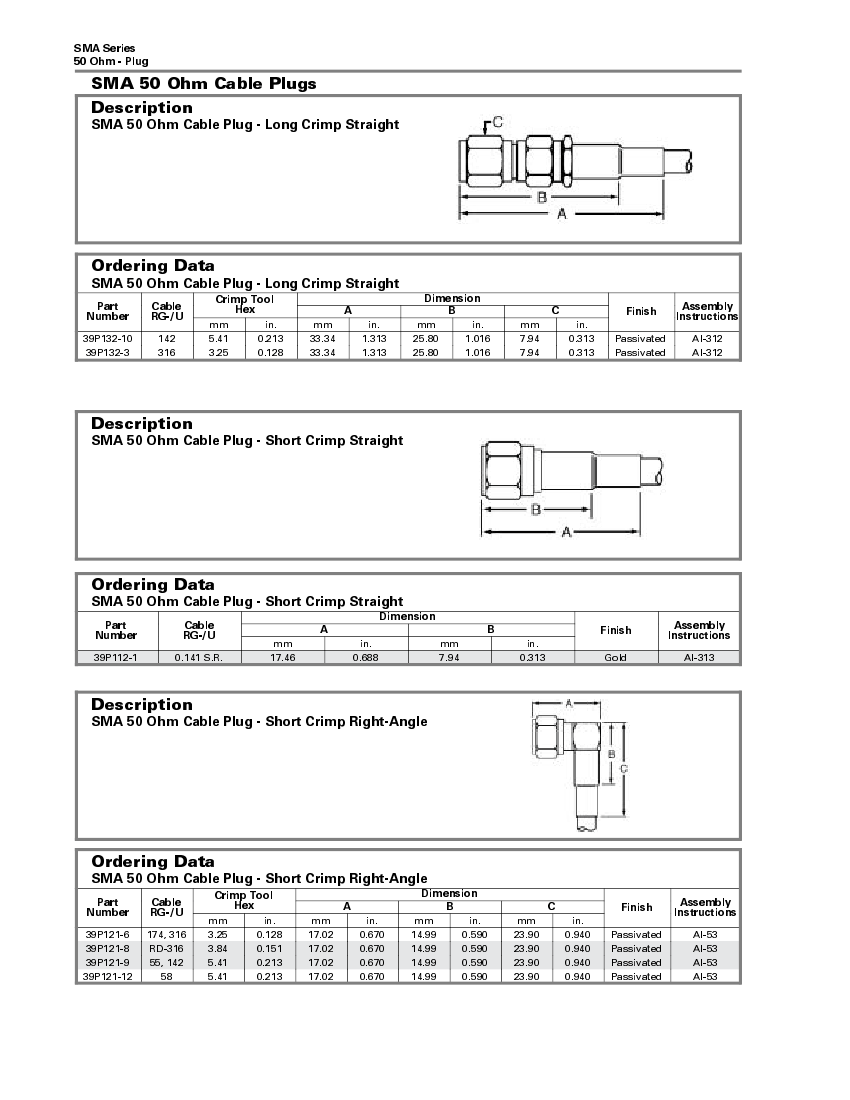

SMA Series

50 Ohm - Plug

SMA 50 Ohm Cable Plugs

Description

SMA

SMA 50 Ohm Cable Plug - Long Crimp Straight

Series

50 Ohm - Plug

RF/Coaxial

Ordering Data

39P132-10

39P132-3

Part

Number

Cable

RG-/U

SMA 50 Ohm Cable Plug - Long Crimp Straight

142

316

mm

5.41

3.25

Crimp Tool

Hex

in.

0.213

0.128

mm

33.34

A

in.

1.313

mm

25.80

Dimension

B

in.

1.016

mm

7.94

C

in.

0.313

Finish

Passivated

Assembly

Instructions

AI-312

Description

SMA 50 Ohm Cable Plug - Short Crimp Straight

Ordering Data

39P112-1

Part

Number

SMA 50 Ohm Cable Plug - Short Crimp Straight

0.141 S.R.

Cable

RG-/U

mm

17.46

A

Dimension

in.

0.688

mm

7.94

B

in.

0.313

Finish

Gold

Assembly

Instructions

AI-313

Description

SMA 50 Ohm Cable Plug - Short Crimp Right-Angle

Ordering Data

39P121-6 174, 316

39P121-8 RD-316

39P121-9 55, 142

39P121-12 58

Part

Number

Cable

RG-/U

SMA 50 Ohm Cable Plug - Short Crimp Right-Angle

mm

3.25

3.84

5.41

Crimp Tool

Hex

in.

0.128

0.151

0.213

mm

17.02

A

in.

0.670

mm

14.99

Dimension

B

in.

0.590

mm

23.90

C

in.

0.940

Finish

Passivated

Assembly

Instructions

AI-53

30-88

RF/Coaxial

39P121-8 Related Products

	39P121-8	39P121-12	39P132-10	39P132-3	39P121-6	39P121-9	39P112-1
Description	RF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Terminal, Plug
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	SMA	SMA	SMA	SMA	SMA	SMA	SMA
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz
Panel mounting	NO	NO	NO	NO	NO	NO	NO
Termination type	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER
voltage standing wave ratio	1.33	1.33	1.33	1.33	1.33	1.33	1.33
Base Number Matches	1	1	1	1	1	1	1
