MIO-3260CZ22GS8A1E Overview

IntelÂ® Atomâ¢ E3825 & CeleronÂ® N2930 Pico-ITX SBC, DDR3L, 18/24-bit LVDS, VGA,DP/HDMI, 1 GbE, Full-size Mini PCIe,4 USB, 2 COM, SMBus, I2C, mSATA & MIOe

Preview

Download Datasheet

View All

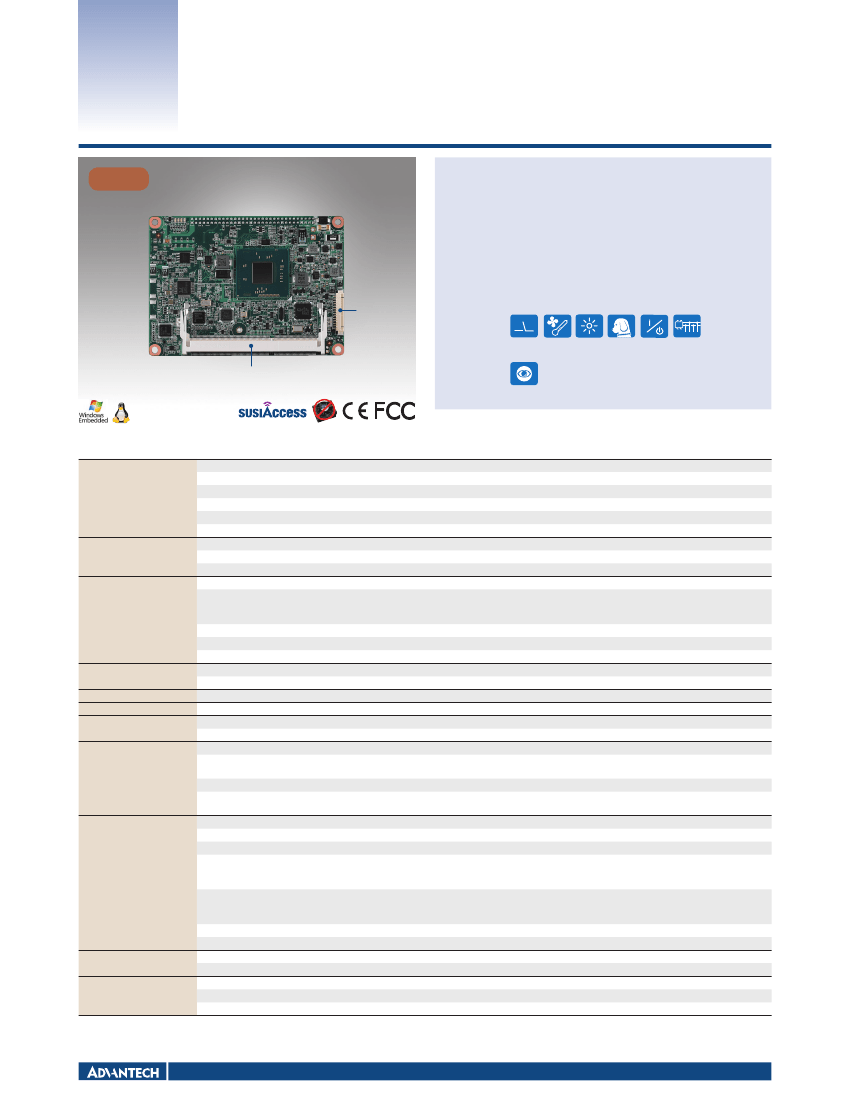

MIO-3260

NEW

Intel

Atom™ E3825 & Celeron

N2930

Pico-ITX SBC, DDR3L, 18/24-bit LVDS, VGA,

DP/HDMI, 1 GbE, Full-size Mini PCIe,

4 USB, 2 COM, SMBus, I

C, mSATA & MIOe

Features

Embedded Intel

Atom™ E3825 & Celeron

N2930 up to Quad-Core

processor design, DDR3L 1333MHz support up to 8GB

Intel Gen 7 DirectX

11.1 support, Dual Independent display: 18/24bit LVDS,

VGA, DP/HDMI

Flexible design using integrated multiple I/O: MIOe to approach vertical

applications & keep domain knowhow

Intel GbE support, Rich I/O interface with 2 COM, 1 SATA, 4 USB 2.0, GPIO,

SMBus, I

C, and MIOe expansion interface

Supports SUSIAccess and Embedded Software APIs

Software APIs:

GPIO

H/W Brightness Watchdog Backlight

Monitor

On/Off

SMBus

& I

18/24 bit LVDS

DDR3L SO-DIMM Socket

Utilities:

Monitoring

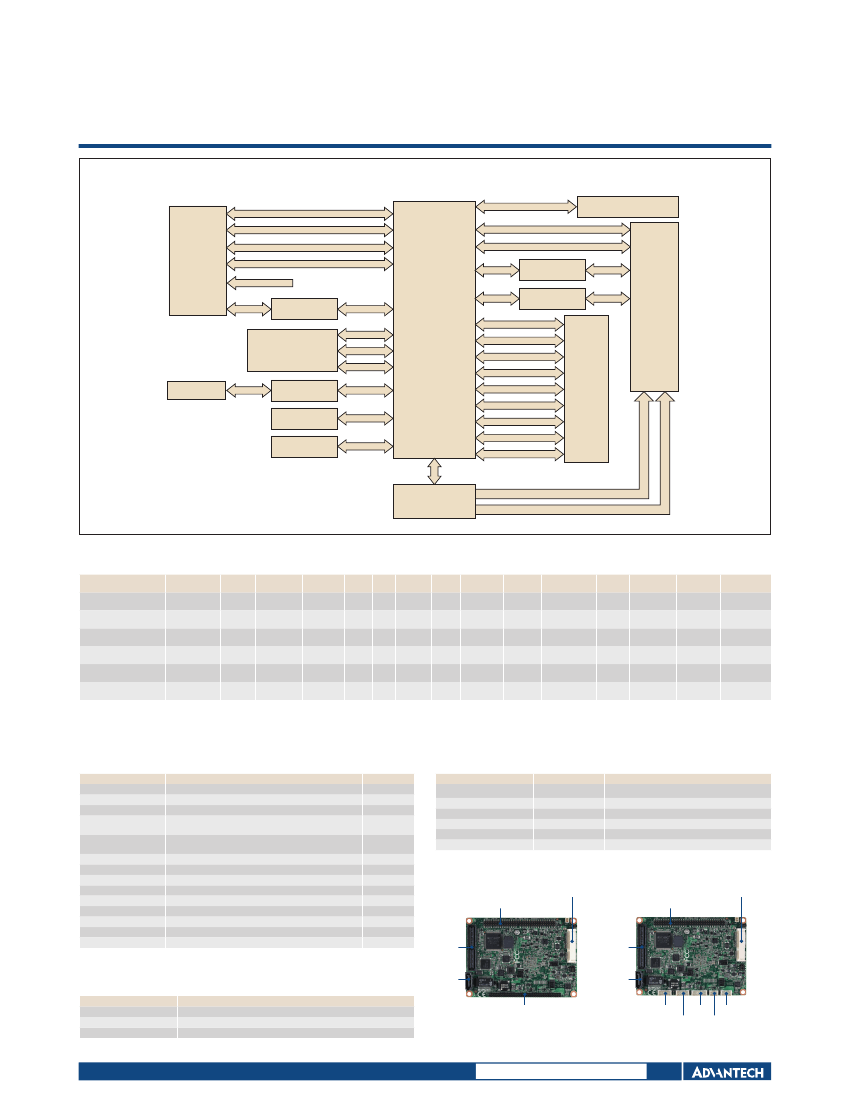

Specifications

Processor System

CPU

Frequency

L2 Cache

Max Turbo Frequency

System Chipset

BIOS

Technology

Max. Capacity

Socket

Chipset

Graphic Engine

Display

LVDS

VGA

Dual Display

Speed

Controller

Chipset

mSATA*

SATA

Mini PCI Express

MIOe

64-pin connecter A

64-pin connector B

Power Type

Power Supply Voltage

Total peripheral power supply output

Power

Power Consumption (Typical)

Power Consumption (Max)

Power Management

Battery

Operation

Non-Operation

Dimensions (L x W)

Weight

Total Height

Intel Atom E3825

Intel Celeron N2930

1.33 GHz (Dual-Core)

1.83 GHz (Quad-Core)

1 MB

2 MB

2.16GHz

Intel Atom SoC processor integrated

AMI EFI 64 Mbit

DDR3L 1333 MHz for N2930, DDR3L 1066 MHz for E3825

8 GB

1 x 204-pin SODIMM (Support 1.35V DDR3L)

Intel Gen7 graphic engine

DirectX

11, Open GL3.0, Open CL 1.1, OGLES 2.0

Encode: H.264, MPEG2

Decode: H.264, MPEG2, VC-1, WMV9

Supports single channel 24-bit LVDS up to 1440 x 900 at 60Hz

Supports 2560 x 1600 at 60Hz

Yes (LVDS+VGA or LVDS+DP/HDMI or VGA+DP/HDMI)

10/100/1000Mbps

Intel I210

Realtek ALC888S, High Deﬁnition Audio (HD), Line-in, Line out, Mic-in

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

1 (Supports mSATA or USB interface module or full size miniPCIe, selected by BIOS, default is mSATA)

1, up to 3Gb/s (300MB/s)

1 x Full-size

SMBus, USB3.0, LPC, 2 x PCIe x1, Line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power,

Power On, Reset

12V DC input, Inverter, VGA, 2 x USB2.0, 1GbE w/ LED**

SMBus, I

C, Power/Reset button, HDD/Power LED, 2 x USB2.0, 8-bit GPIO, HD Audio Line-in, Line out,

Mic-in, 2 x RS-232/422/485

Single 12V DC power input

Supports single 12V input, ± 10%

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

MIO-3260L-S3A1E(E3825): 4.47W

MIO-3260L-S8A1E(N2930): 5.08W

MIO-3260C-S8A1E(N2930): 4.22W

MIO-3260L-S3A1E(E3825): 7.13W

MIO-3260L-S8A1E(N2930): 9.73W

MIO-3260C-S8A1E(N2930): 8.71W

ACPI

3 V / 210 mAH

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

100 x 72 mm (3.9" x 2.8")

MIO-3260L: 0.35 kg (0.77 lb), MIO-3260C: 0.55 kg (1.21 lb), weight of total package

Top Side: 15.7 mm (including heatsink); Bottom Side: 8.5 mm; PCB: 1.6 mm

Memory

Ethernet

Audio

WatchDog Timer

Storage

Expansion

Environment

Physical Characteristics

* The speciﬁcation is supported by request

** MIO-3260C default support GbE only. GbE w/LED is supported by request.

MI/O Extension SBCs, Modules and Chassis

All product specifications are subject to change without notice

Last updated : 9-Jun-2015
