Part Number

Search

B82724B2102N001

Description
1 ELEMENT, 0.1uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, RADIAL LEADED, ROHS COMPLIANT
CategoryPassive components    inductor
File Size543KB,7 Pages
ManufacturerEPCOS (TDK)
Environmental Compliance
Download Datasheet Parametric Compare View All

B82724B2102N001 Online Shopping

Suppliers Part Number Price MOQ In stock
B82724B2102N001 - - View Buy Now

B82724B2102N001 Overview

1 ELEMENT, 0.1uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, RADIAL LEADED, ROHS COMPLIANT

B82724B2102N001 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
structureRectangular
core materialFERRITE
DC Resistance0.88 Ω
Nominal inductance(L)47000 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Lead diameter0.7 mm
Lead length4 mm
Number of functions2
Number of terminals4
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height25 mm
Package length33.6 mm
Package formPCB Mount
Package width32.6 mm
method of packingTray
Maximum rated current1 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsINDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE
surface mountNO
Terminal surfaceTin (Sn)
Terminal locationDUAL IN-LINE
Terminal shapeWIRE
Test frequency0.01 MHz
Tolerance30%
Base Number Matches1
Power line chokes
Current-compensated ring core double chokes
250 V AC, 0.8 … 100 mH, 0.5 … 6 A, +40 °C / +50 °C / +60 °C
Series/Type:
Date:
B82724B
October 2016
a~í~=pÜÉÉí
EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.

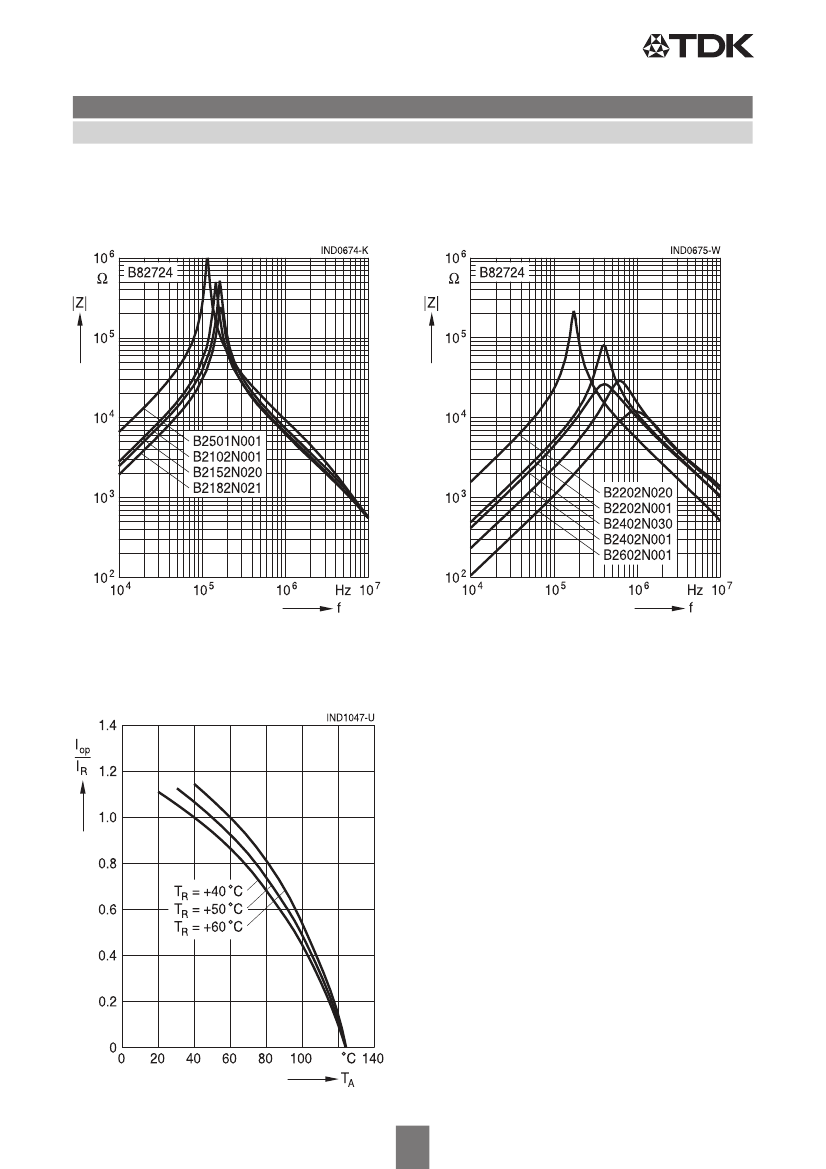

B82724B2102N001 Related Products

B82724B2102N001 B82724B2402N001 B82724B2182N021 B82724B2602N001 B82724B2152N020 B82724B2202N001
Description 1 ELEMENT, 0.1uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, RADIAL LEADED, ROHS COMPLIANT 1 ELEMENT, 0.1uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, RADIAL LEADED, ROHS COMPLIANT 1 ELEMENT, 0.1uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, RADIAL LEADED, ROHS COMPLIANT 1 ELEMENT, 0.1uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, RADIAL LEADED, ROHS COMPLIANT 1 ELEMENT, 0.1uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, RADIAL LEADED, ROHS COMPLIANT 1 ELEMENT, 0.1uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, RADIAL LEADED, ROHS COMPLIANT
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
structure Rectangular Rectangular Rectangular Rectangular Rectangular Rectangular
core material FERRITE FERRITE FERRITE FERRITE FERRITE FERRITE
DC Resistance 0.88 Ω 0.058 Ω 0.4 Ω 0.023 Ω 0.53 Ω 0.22 Ω
Nominal inductance(L) 47000 µH 3900 µH 33000 µH 1800 µH 49000 µH 10000 µH
Inductor Applications POWER INDUCTOR POWER INDUCTOR POWER INDUCTOR POWER INDUCTOR POWER INDUCTOR POWER INDUCTOR
Inductor type GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR
JESD-609 code e3 e3 e3 e3 e3 e3
Lead diameter 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm
Lead length 4 mm 4 mm 4 mm 4 mm 4 mm 4 mm
Number of functions 2 2 2 2 2 2
Number of terminals 4 4 4 4 4 4
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Package height 25 mm 25 mm 25 mm 25 mm 25 mm 25 mm
Package length 33.6 mm 33.6 mm 33.6 mm 33.6 mm 33.6 mm 33.6 mm
Package form PCB Mount PCB Mount PCB Mount PCB Mount PCB Mount PCB Mount
Package width 32.6 mm 32.6 mm 32.6 mm 32.6 mm 32.6 mm 32.6 mm
method of packing Tray Tray Tray Tray Tray Tray
Maximum rated current 1 A 4 A 1.8 A 6 A 1.5 A 2 A
Shape/Size Description RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE
shield NO NO NO NO NO NO
special characteristics INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE
surface mount NO NO NO NO NO NO
Terminal surface Tin (Sn) Tin (Sn) Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) Tin (Sn) - with Nickel (Ni) barrier Tin (Sn)
Terminal location DUAL IN-LINE DUAL IN-LINE DUAL IN-LINE DUAL IN-LINE DUAL IN-LINE DUAL IN-LINE
Terminal shape WIRE WIRE WIRE WIRE WIRE WIRE
Test frequency 0.01 MHz 0.01 MHz 0.01 MHz 0.01 MHz 0.01 MHz 0.01 MHz
Tolerance 30% 30% 30% 30% 30% 30%
Base Number Matches 1 1 1 1 1 1
