54LS133M/B2AJC: DescriptionLS SERIES, 13-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size57KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS133M/B2AJC Overview

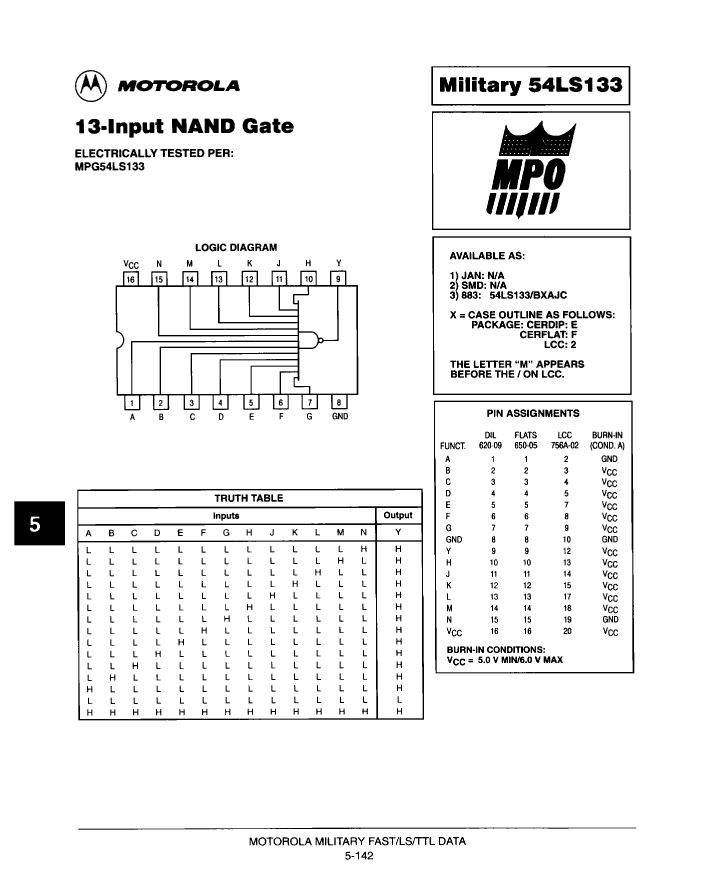

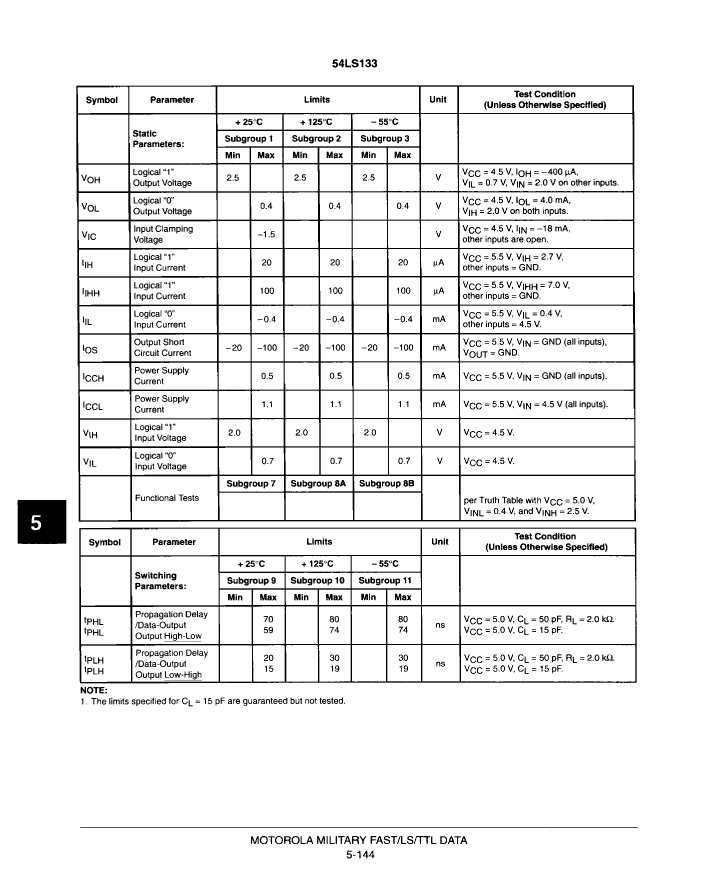

LS SERIES, 13-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20

54LS133M/B2AJC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	1
Number of entries	13
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	1.1 mA
Prop。Delay @ Nom-Sup	80 ns
propagation delay (tpd)	74 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.885 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS133M/B2AJC Related Products

	54LS133M/B2AJC	54LS133/BEAJC	54LS133/BFAJC
Description	LS SERIES, 13-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20	LS SERIES, 13-INPUT NAND GATE, CDIP16, CERDIP-16	LS SERIES, 13-INPUT NAND GATE, CDFP16, CERAMIC, FP-16
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	QCCN, LCC20,.35SQ	DIP,	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	unknow
series	LS	LS	LS
JESD-30 code	S-CQCC-N20	R-GDIP-T16	R-GDFP-F16
JESD-609 code	e0	e0	e0
length	8.885 mm	19.3 mm	9.65 mm
Load capacitance (CL)	15 pF	15 pF	15 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE
Number of functions	1	1	1
Number of entries	13	13	13
Number of terminals	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP	DFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	1.1 mA	1.1 mA	1.1 mA
propagation delay (tpd)	74 ns	74 ns	74 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	4.19 mm	2.15 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.885 mm	7.62 mm	6.415 mm
Is it lead-free?	Contains lead	-	Contains lead
Parts packaging code	QLCC	-	DFP
Contacts	20	-	16
MaximumI(ol)	0.004 A	-	0.004 A
Encapsulate equivalent code	LCC20,.35SQ	-	FL16,.3
power supply	5 V	-	5 V
Schmitt trigger	NO	-	NO
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B
Base Number Matches	1	1	-
