87583-3010RPLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87583-3010RPLF

87583-3010RPLF: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size200KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

87583-3010RPLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87583-3010RPLF	-	-	View	Buy Now

87583-3010RPLF Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, LEAD FREE

87583-3010RPLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87583
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	COPPER ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

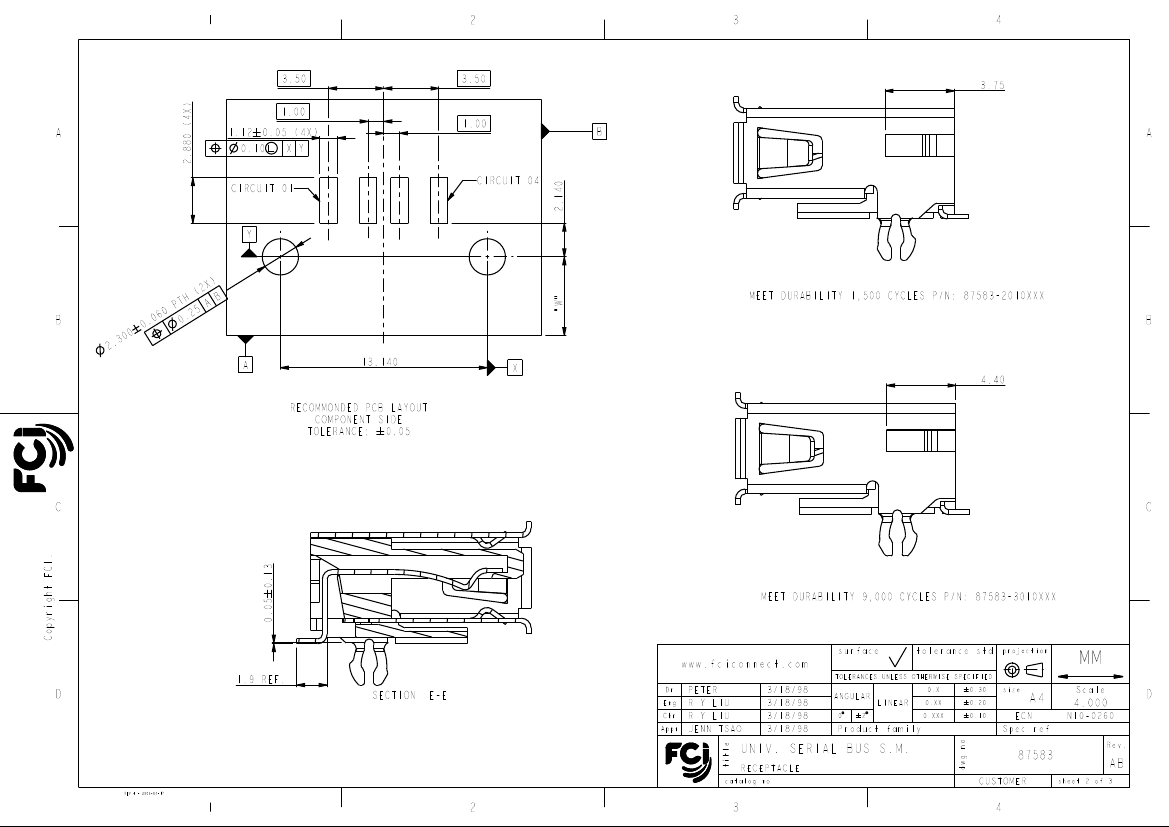

Preview

Download Datasheet

View All

13.10

14.50

14.0

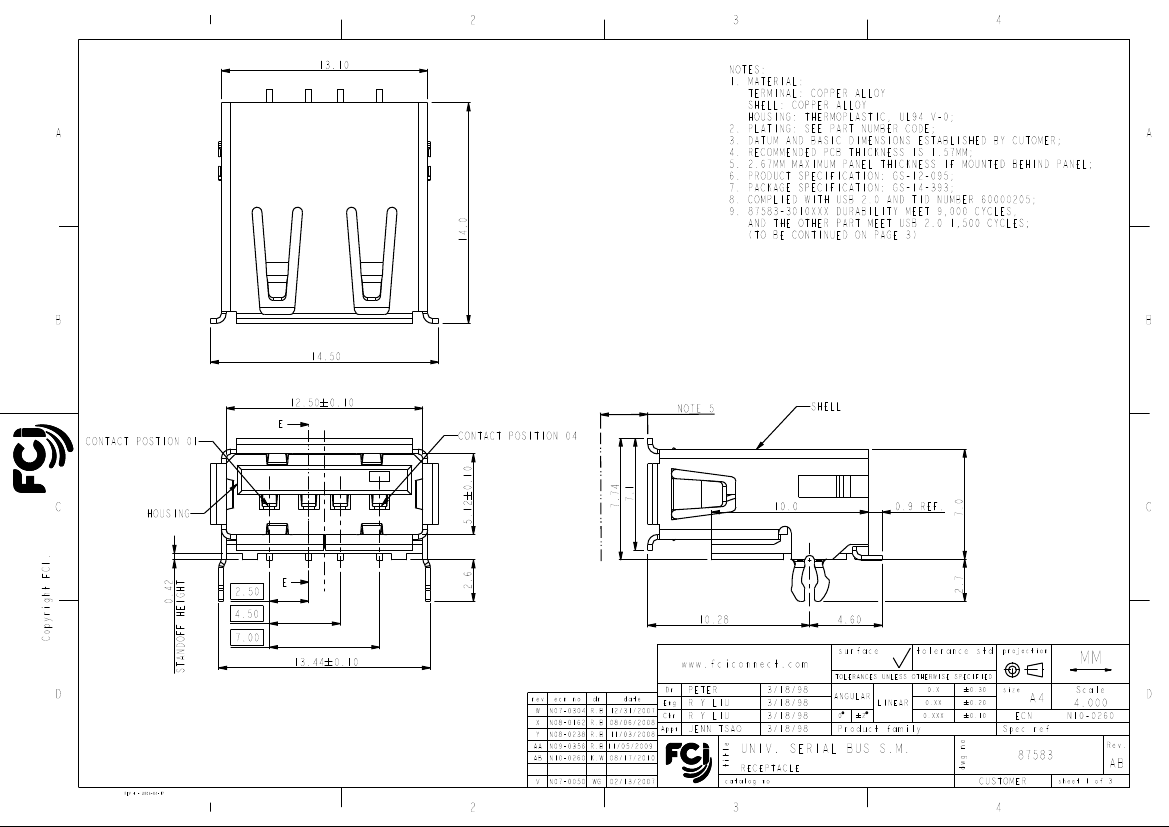

NOTES:

1. MATERIAL:

TERMINAL: COPPER ALLOY

SHELL: COPPER ALLOY

HOUSING: THERMOPLASTIC, UL94 V-0;

2. PLATING: SEE PART NUMBER CODE;

3. DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUTOMER;

4. RECOMMENDED PCB THICKNESS IS 1.57MM;

5. 2.67MM MAXIMUM PANEL THICKNESS IF MOUNTED BEHIND PANEL;

6. PRODUCT SPECIFICATION: GS-12-095;

7. PACKAGE SPECIFICATION: GS-14-393;

8. COMPLIED WITH USB 2.0 AND TID NUMBER 60000205;

9. 87583-3010XXX DURABILITY MEET 9,000 CYCLES,

AND THE OTHER PART MEET USB 2.0 1,500 CYCLES;

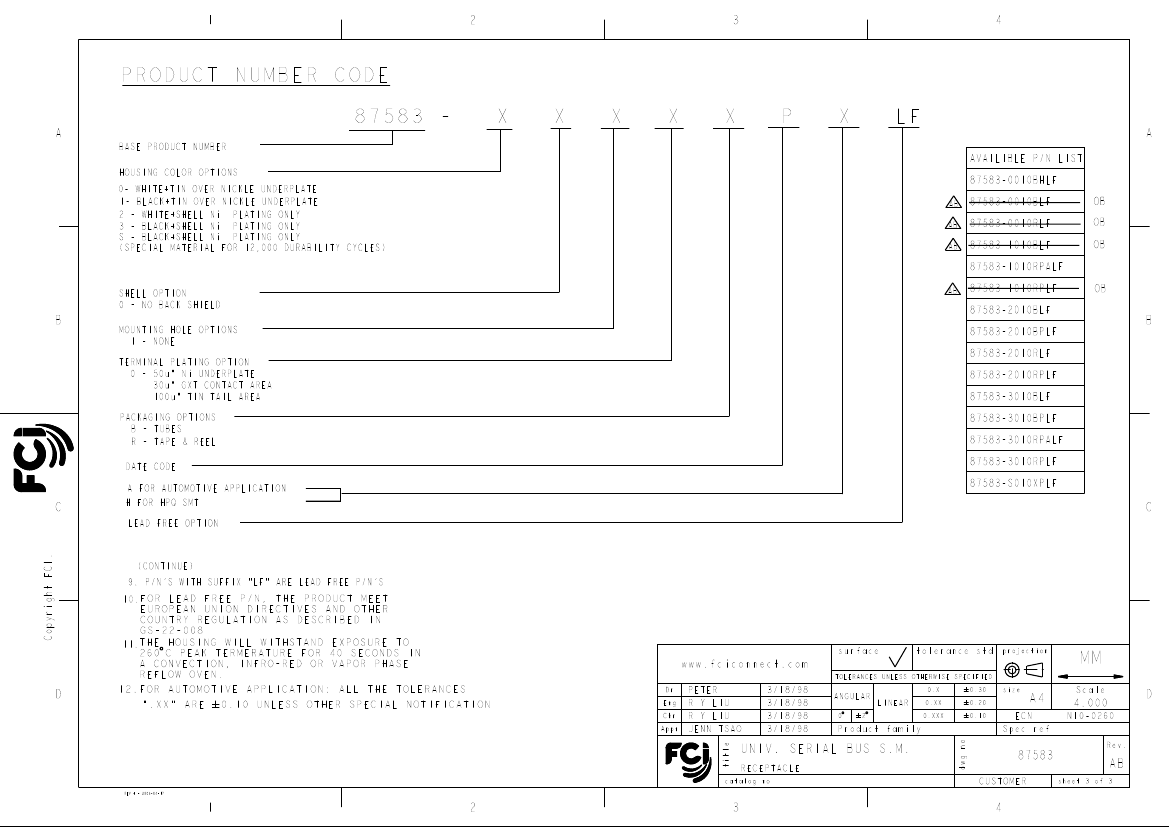

(TO BE CONTINUED ON PAGE 3)

12.50 0.10

CONTACT POSTION 01

CONTACT POSITION 04

5.12 0.10

NOTE 5

SHELL

7.74

7.1

7.0

HOUSING

10.0

0.9 REF.

2.6

0.42

STANDOFF HEIGHT

2.50

4.50

7.00

10.28

4.60

surface

tolerance std

projection

2.7

13.44 0.10

rev

ecn no

N07-0304

N08-0162

N08-0238

N09-0356

N10-0260

N07-0050

R.B

K.W

date

12/31/2007

08/06/2008

11/03/2008

08/17/2010

02/13/2007

Eng

Chr

Appr

www.fciconnect.com

TOLERANCES UNLESS OTHERWISE SPECIFIED

Scale

PETER

R Y LIU

JENN TSAO

title

3/18/98

ANGULAR

0.X

0.30

0.20

0.10

size

LINEAR

0.XX

0.XXX

4.000

N10-0260

Rev.

Product family

dwg no

ECN

Spec ref

R.B 11/05/2009

UNIV. SERIAL BUS S.M.

RECEPTACLE

87583

CUSTOMER

sheet

1 of 3

catalog no

REV F - 2006-04-17

PDS: Rev

Printed:

2012

eDOC

PDM: Rev:AB

:AB

STATUS:

STATUS:Released

Printed: Feb 14,

Nov 28, 2012

Released

87583-3010RPLF Related Products

	87583-3010RPLF	87583-2010BALF	87583-0010RHLF	87583-0010BHLF	87583-0010BLF	87583-0010RLF	87583-1010RPLF	87583-S010RPLF
Description	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, LEAD FREE	USB S/D LF	USB S/D LF	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, LEAD FREE	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, LEAD FREE	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, LEAD FREE	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, LEAD FREE	Telecom and Datacom Connector,
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	-	conform to
package instruction	LEAD FREE	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	-
Reach Compliance Code	compliant	-	compliant	compliant	compliant	unknown	compliant	compliant
Body/casing type	RECEPTACLE	-	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Connector type	TELECOM AND DATACOM CONNECTOR	USB - A	TELECOM AND DATACOM CONNECTOR	-	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER PALLADIUM NICKEL	-	NOT SPECIFIED	-	NICKEL PALLADIUM GOLD (30) OVER NICKEL (50)	NICKEL PALLADIUM GOLD (30) OVER NICKEL (50)	GOLD (30) OVER PALLADIUM NICKEL	NOT SPECIFIED
Contact completed and terminated	TIN (100) OVER NICKEL	-	NOT APPLICABLE	-	Tin (Sn) - with Nickel (Ni) barrier	TIN (100) OVER NICKEL (50)	TIN (100) OVER NICKEL	-
Contact point gender	FEMALE	-	FEMALE	-	FEMALE	FEMALE	FEMALE	-
DIN compliance	NO	-	NO	-	NO	NO	NO	-
empty shell	NO	-	NO	-	NO	NO	NO	-
Filter function	NO	-	NO	-	NO	NO	NO	-
IEC compliance	NO	-	NO	-	NO	NO	NO	-
insulator material	POLYETHYLENE	-	POLYETHYLENE	-	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	-
MIL compliance	NO	-	NO	-	NO	NO	NO	-
Mixed contacts	NO	-	NO	-	NO	NO	NO	-
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	BOARD	Surface mount, right angle	BOARD	-	BOARD	BOARD	BOARD	-
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Shell material	COPPER ALLOY	-	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-
Termination type	SURFACE MOUNT	-	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Total number of contacts	4	-	4	-	4	4	4	-
UL Flammability Code	94V-0	-	94V-0	-	94V-0	94V-0	94V-0	-
Base Number Matches	1	-	-	1	1	1	1	1
