33JR115-2: DescriptionRF Connector, Female, Receptacle; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

33JR115-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	33JR115-2	-	-	View	Buy Now

33JR115-2 Overview

RF Connector, Female, Receptacle

33JR115-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	RF CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	33
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

Preview

Download Datasheet

View All

Special Series

Receptacle

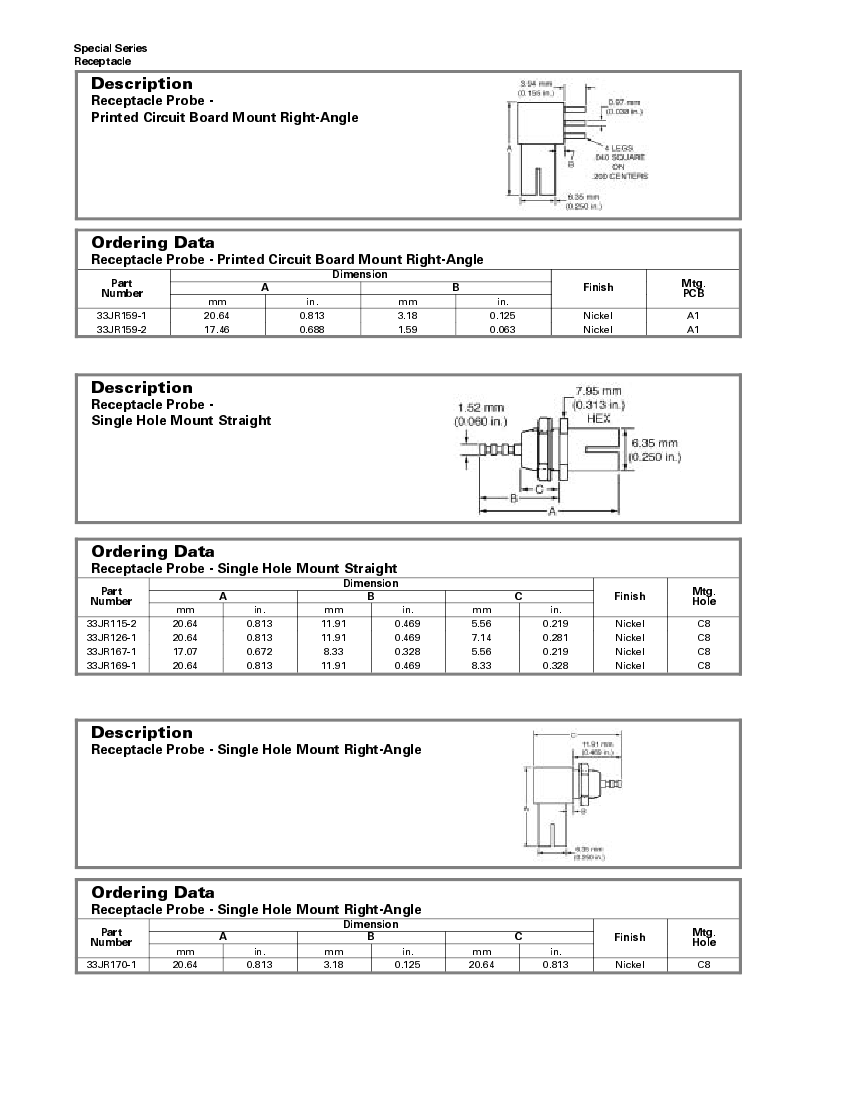

Description

Receptacle Probe -

Printed Circuit Board Mount Right-Angle

Special Series

Receptacle

RF/Coaxial

Ordering Data

33JR159-1

33JR159-2

Part

Number

Receptacle Probe - Printed Circuit Board Mount Right-Angle

mm

20.64

17.46

A

Dimension

in.

0.813

0.688

mm

3.18

1.59

B

in.

0.125

0.063

Finish

Nickel

Mtg.

PCB

A1

Description

Receptacle Probe -

Single Hole Mount Straight

Ordering Data

33JR115-2

33JR126-1

33JR167-1

33JR169-1

Part

Number

Receptacle Probe - Single Hole Mount Straight

mm

20.64

17.07

20.64

A

in.

0.813

0.672

0.813

mm

11.91

8.33

11.91

Dimension

B

in.

0.469

0.328

0.469

mm

5.56

7.14

5.56

8.33

C

in.

0.219

0.281

0.219

0.328

Finish

Nickel

Mtg.

Hole

C8

Description

Receptacle Probe - Single Hole Mount Right-Angle

Ordering Data

33JR170-1

Part

Number

Receptacle Probe - Single Hole Mount Right-Angle

mm

20.64

A

in.

0.813

mm

3.18

Dimension

B

in.

0.125

mm

20.64

C

in.

0.813

Finish

Nickel

Mtg.

Hole

C8

30-142

RF/Coaxial

33JR115-2 Related Products

	33JR115-2	33JR159-1	33JR159-2	SB2560CT	33JR126-1	33JR167-1	33JR169-1
Description	RF Connector, Female, Receptacle	RF Connector, Female, Board Mount, Solder Terminal, Receptacle	RF Connector, Female, Board Mount, Solder Terminal, Receptacle	SCHOTTKY BARRIER RECTIFIER	RF Connector, Female, Panel Mount, Receptacle	RF Connector, Female, Receptacle	RF Connector, Female, Receptacle
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	-	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	-	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE
Coupling type	SNAP	SNAP	SNAP	-	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	-	NO	NO	NO
Filter function	NO	NO	NO	-	NO	NO	NO
IEC compliance	NO	NO	NO	-	NO	NO	NO
insulator material	TEFLON	TEFLON	TEFLON	-	TEFLON	TEFLON	TEFLON
MIL compliance	NO	NO	NO	-	NO	NO	NO
Manufacturer's serial number	33	33	33	-	33	33	33
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	-	STRAIGHT	STRAIGHT	STRAIGHT
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	-	NO	NO	NO
Base Number Matches	1	1	1	-	1	1	1
