354-1-090-0-F-RS0

Description
Board Connector, 90 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking
CategoryThe connector    The connector
File Size924KB,1 Pages
ManufacturerMPE-Garry GmbH
Download Datasheet Parametric View All

354-1-090-0-F-RS0 Overview

Board Connector, 90 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking

354-1-090-0-F-RS0 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
body width0.169 inch
subject depth0.13 inch
body length1.816 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage350VAC V
insulator materialTHERMOPLASTIC
Manufacturer's serial number354
Plug contact pitch0.039 inch
Match contact row spacing0.039 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.5974 mm
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.9906 mm
Termination typeSURFACE MOUNT
Total number of contacts90
Base Number Matches1

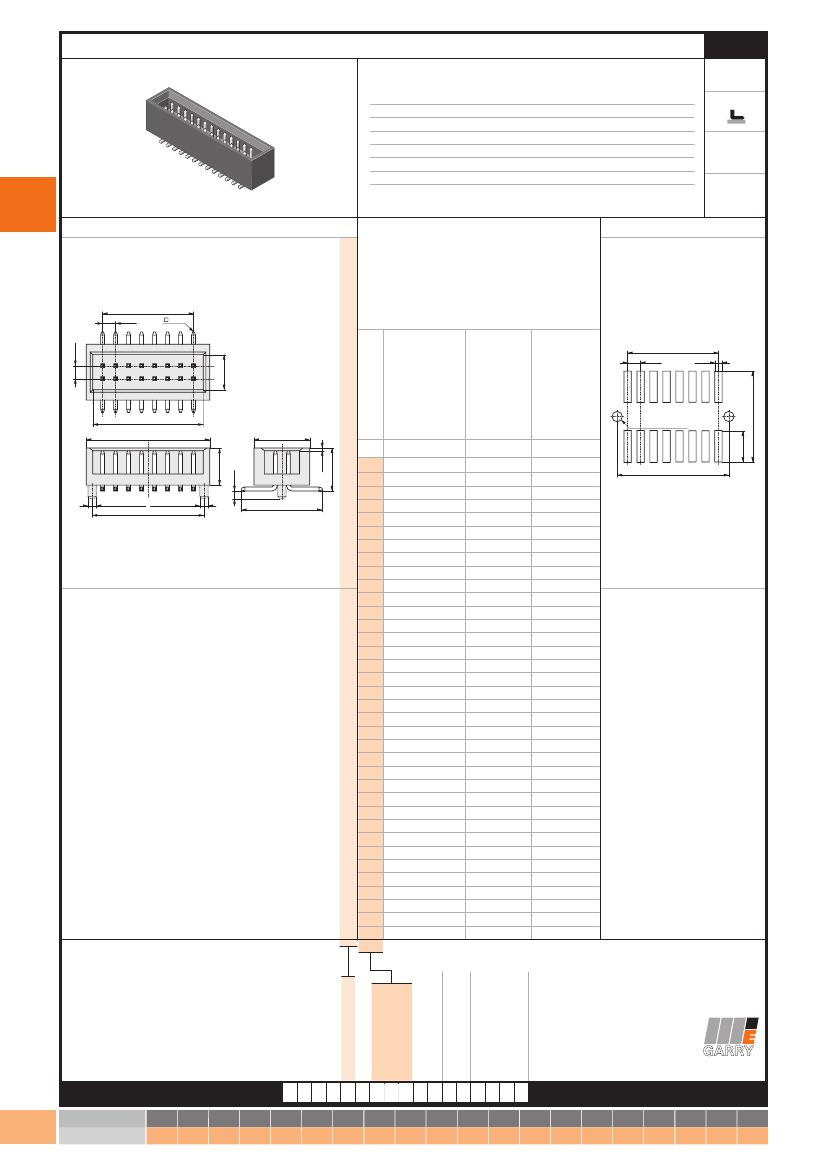

Pin Header Shrouded 1,00 mm
Rated current
1,0 A
Rated voltage
50 V
RMS
/ V
DC
Withstand voltage
250 V
RMS
for one minute
Material contact
Copper alloy
Material insulator
High temp. thermoplast UL94V-0
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
All dimensions in mm.
Series
354
pitch
termination
contact
size
1,00
Product
group
3
max.
pincount
0,30
120
Variation
PCB Layout
1,00
B
0,30
1,00 x (n/2-1)
1,00
0,76
C
A
2,85
4,30
0,20
3,30
Ø 0,80 +0,10
- 0,00
Ø 0,64 ±0,05 Ø 0,64 ±0,05
1,00 x n/2 +0,60
6,20
008
010
012
014
016
018
020
022
024
026
028
030
032
034
036
038
040
042
044
046
048
050
052
054
056
058
060
062
064
066
068
070
080
090
100
120
n
5,65
6,65
7,65
8,65
9,65
10,65
11,65
12,65
13,65
14,65
15,65
16,65
17,65
18,65
19,65
20,65
21,65
22,65
23,65
24,65
25,65
26,65
27,65
28,65
29,65
30,65
31,65
32,65
33,65
34,65
35,65
36,65
41,65
46,65
51,65
61,65
A
3,00
4,00
5,00
6,00
7,00
8,00
9,00
10,00
11,00
12,00
13,00
14,00
15,00
16,00
17,00
18,00
19,00
20,00
21,00
22,00
23,00
24,00
25,00
26,00
27,00
28,00
29,00
30,00
31,00
32,00
33,00
34,00
39,00
44,00
49,00
59,00
B
4,50
5,50
6,50
7,50
8,50
9,50
10,50
11,50
12,50
13,50
14,50
15,50
16,50
17,50
18,50
19,50
20,50
21,50
22,50
23,50
24,50
25,50
26,50
27,50
28,50
29,50
30,50
31,50
32,50
33,50
34,50
35,50
40,50
45,50
50,50
60,50
C
Positioning peg (0,1)
Plating contact (T,F)
Positioning peg:
0 = Without peg
1 = With peg
Plating:
T = Sn
F = Au
0,60
1,00 x n/2 + 0,60
Cap:
0 = Without cap
1 = With cap
No. of contacts
Cap (0,1)
Variation
www.mpe-connector.de
Order code:
354-1-???-?-?-RS?
306
4-4
3-8
Mating series
see page
2,40
7,00
1
MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de
1,00
no. of contacts
2,70
see figure left
see figure left
see figure left
