54F158A/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F158A/B2A

54F158A/B2A: DescriptionMultiplexer, 4-Func, 2 Line Input, TTL, CQCC20,; Categorylogic logic; File Size145KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54F158A/B2A Overview

Multiplexer, 4-Func, 2 Line Input, TTL, CQCC20,

54F158A/B2A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.02 A
Number of functions	4
Number of entries	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	15 mA
Prop。Delay @ Nom-Sup	12.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

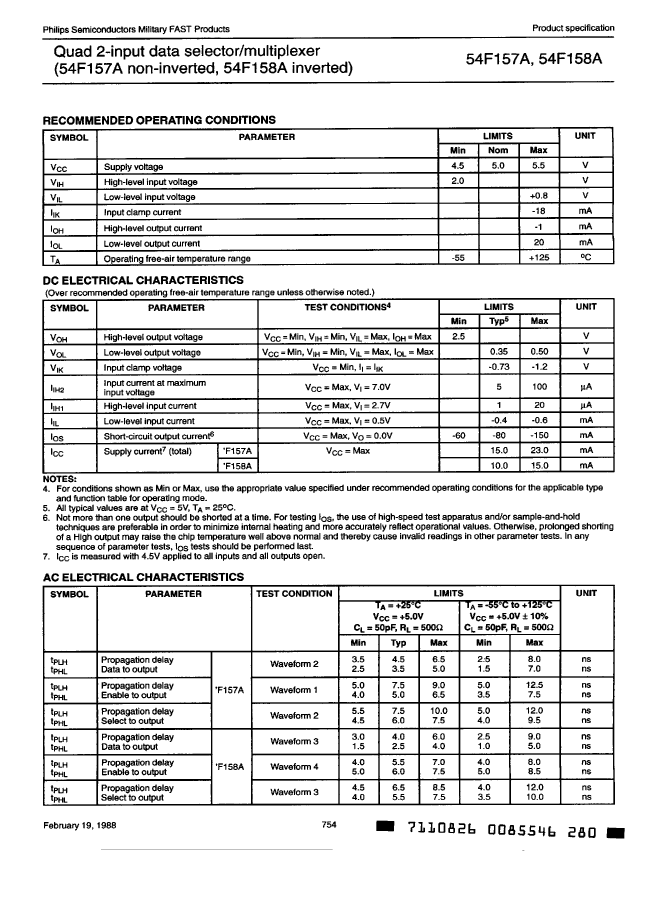

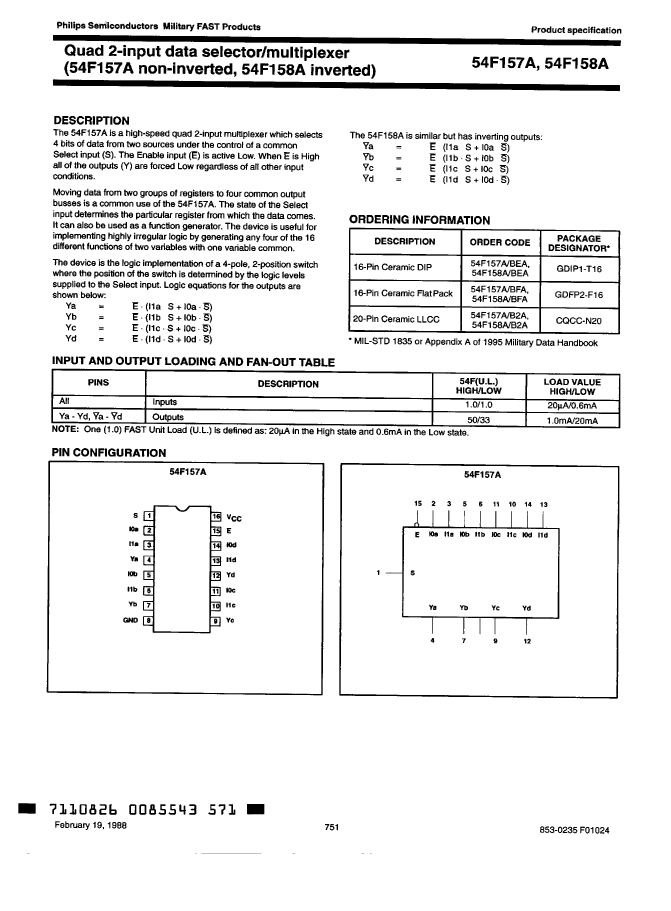

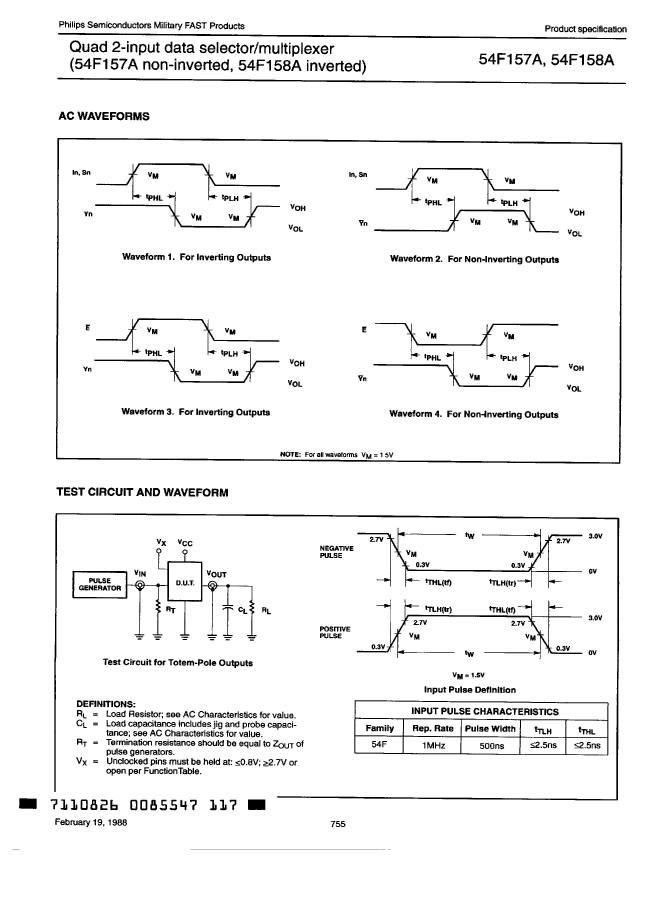

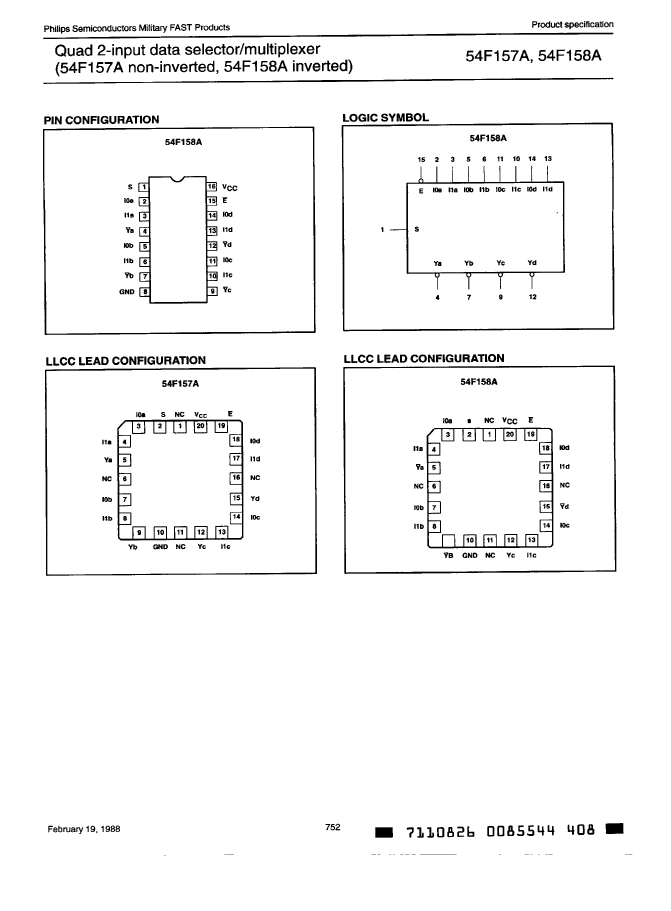

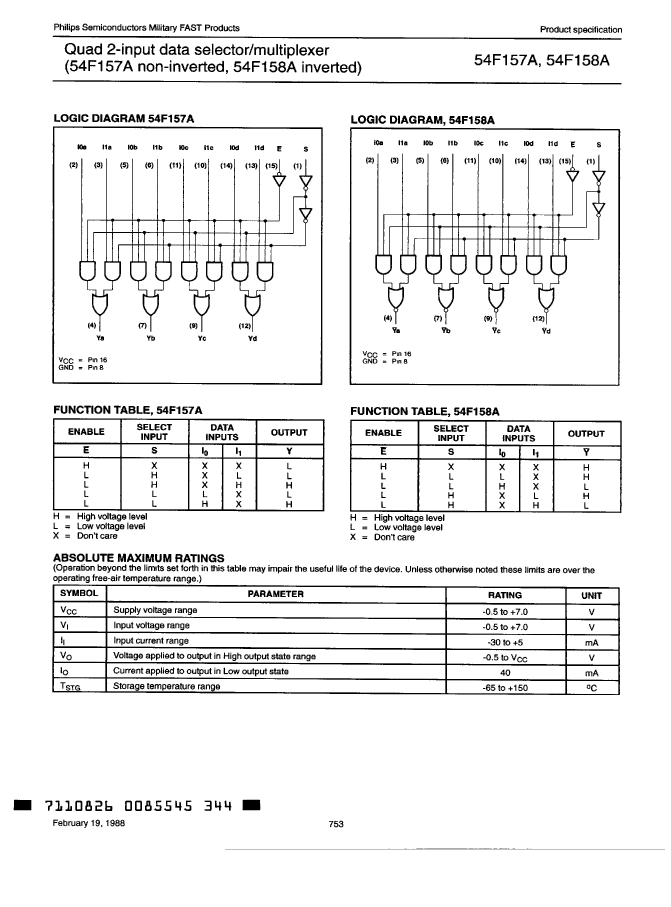

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54F158A/B2A Related Products

	54F158A/B2A	54F157A/B2A	54F157A/BFA	54F157A/BEA	54F158A/BEA	54F158A/BFA
Description	Multiplexer, 4-Func, 2 Line Input, TTL, CQCC20,	Multiplexer, 4-Func, 2 Line Input, TTL, CQCC20,	Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-XQCC-N20	S-XQCC-N20	R-XDFP-F16	R-XDIP-T16	R-XDIP-T16	R-XDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	20	20	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCN	DFP	DIP	DIP	DFP
Encapsulate equivalent code	LCC20,.35SQ	LCC20,.35SQ	FL16,.3	DIP16,.3	DIP16,.3	FL16,.3
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	FLATPACK
Maximum supply current (ICC)	15 mA	23 mA	23 mA	23 mA	15 mA	15 mA
Prop。Delay @ Nom-Sup	12.5 ns	12.5 ns	12.5 ns	12.5 ns	12.5 ns	12.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
surface mount	YES	YES	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
