325-4120-E24 datasheet, PDF - EEWORLD Datasheet

325-4120-E24: DescriptionBoard Connector, 80 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size491KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

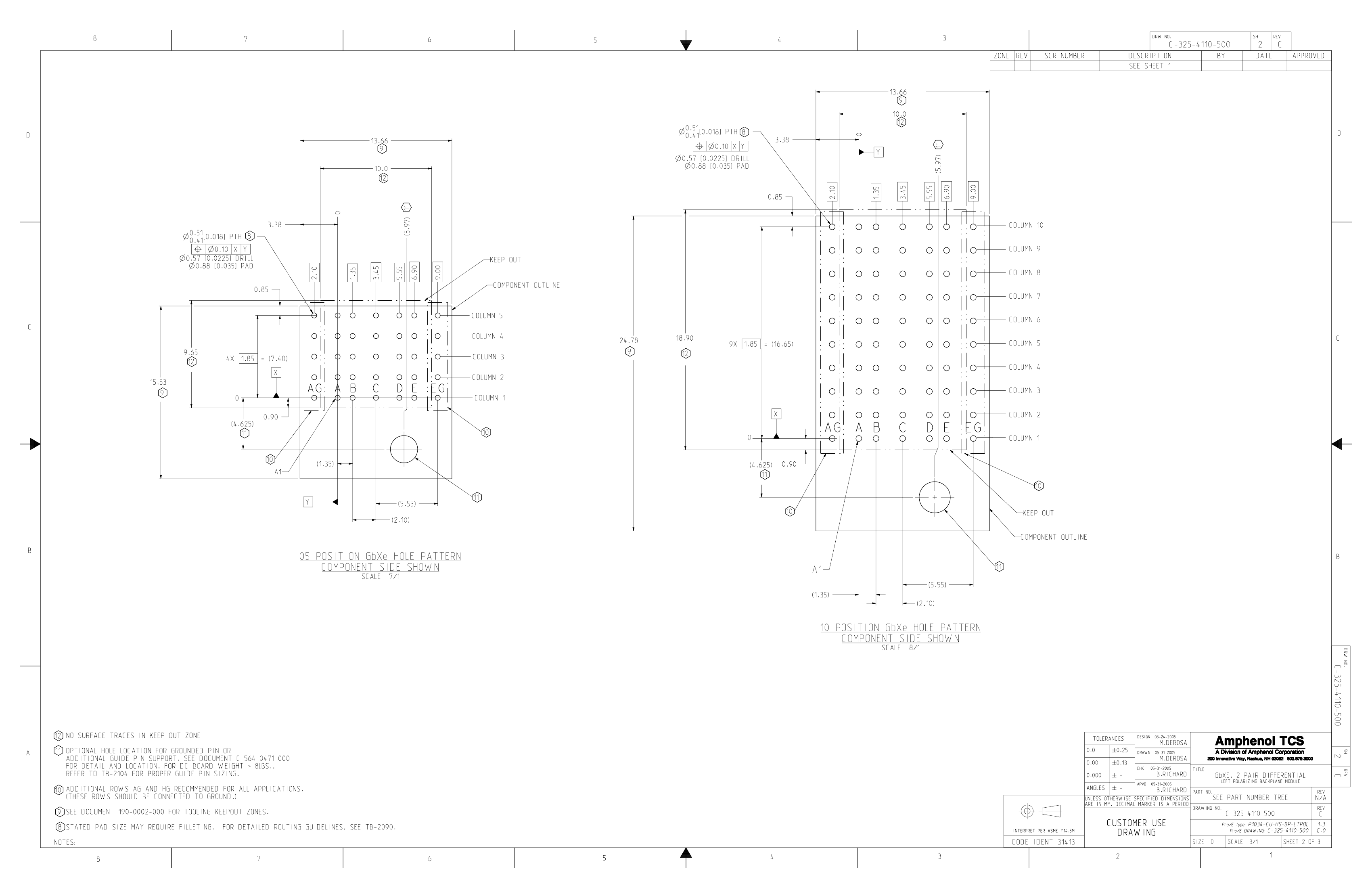

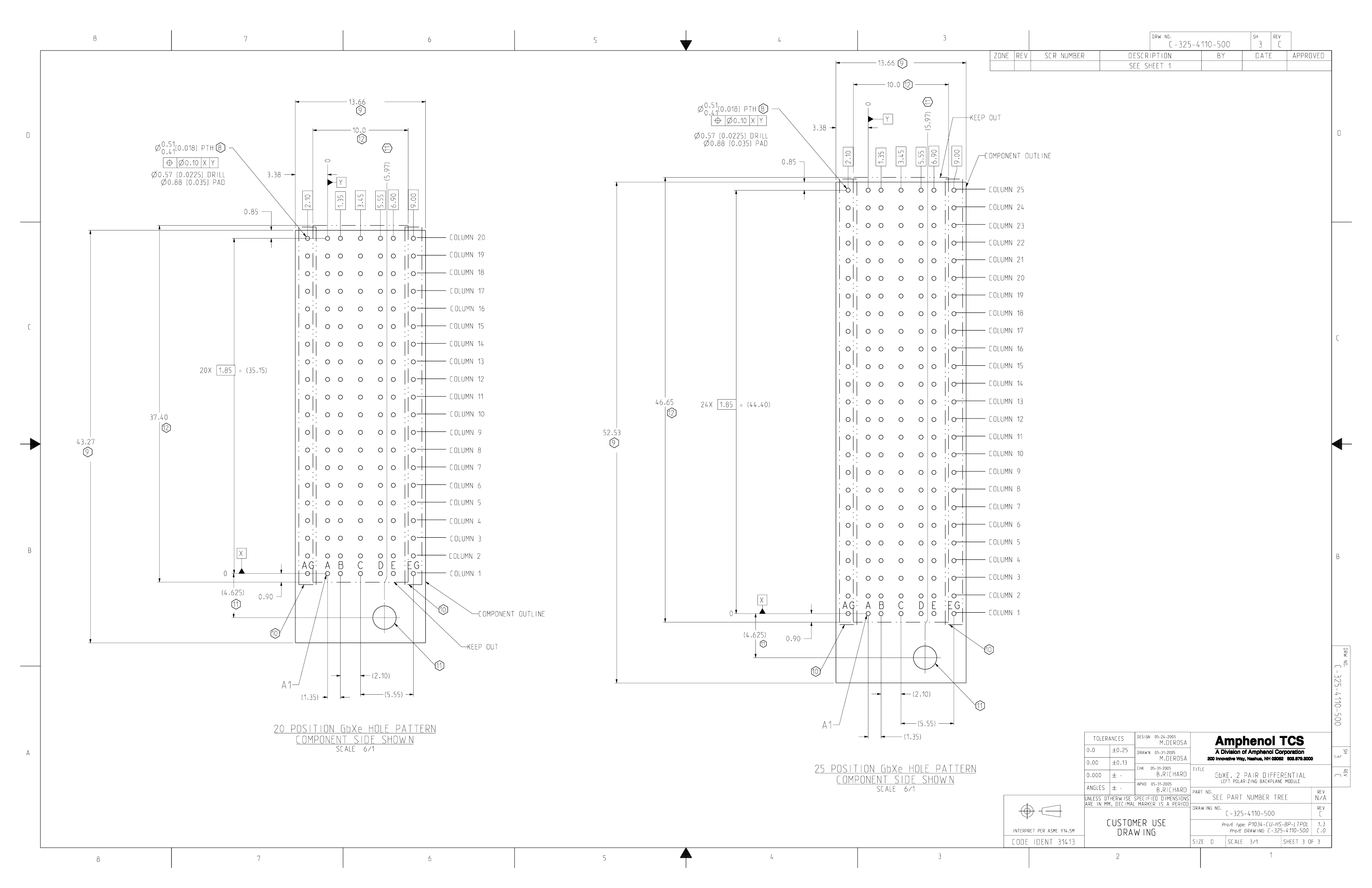

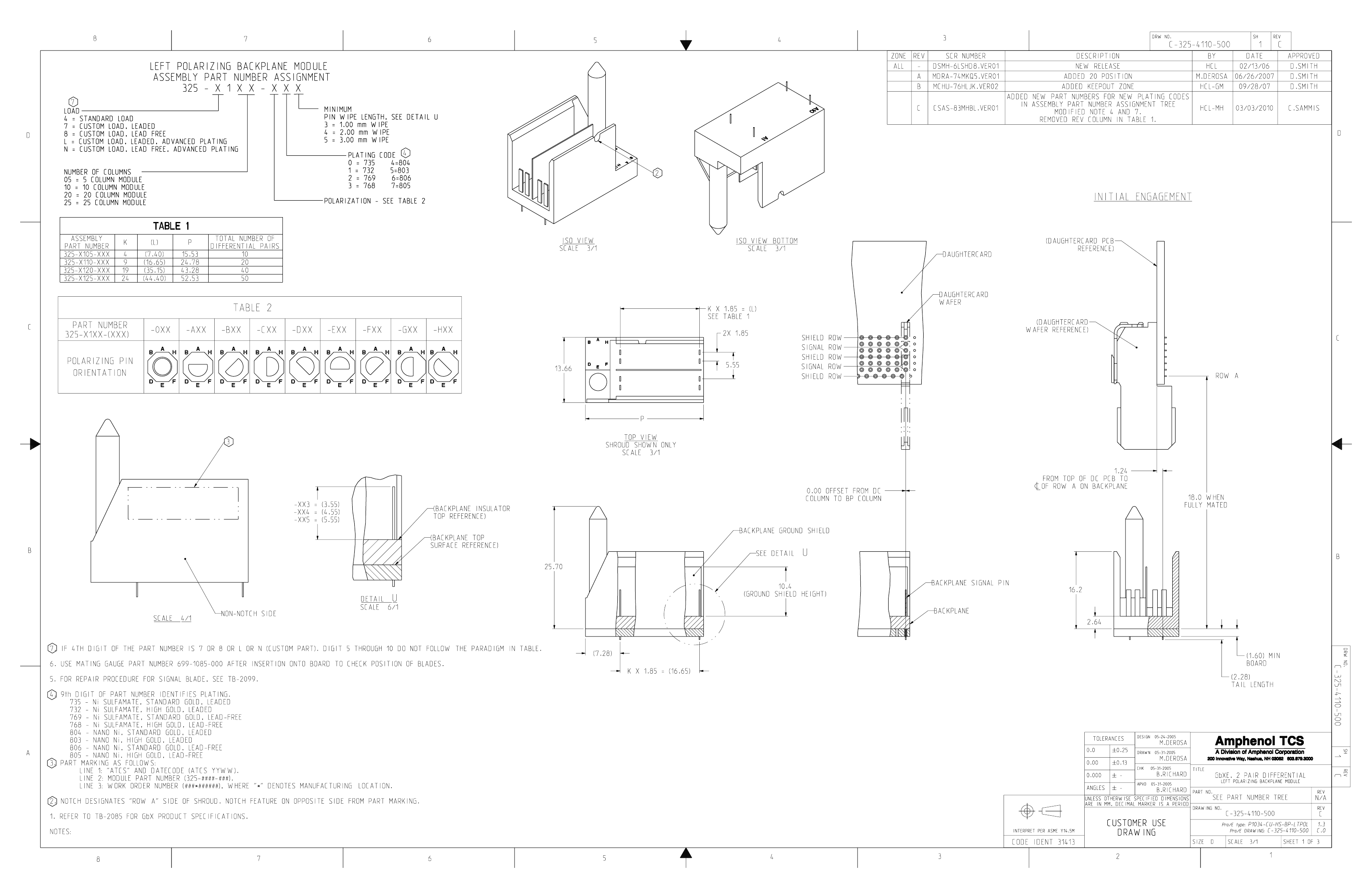

325-4120-E24 Overview

Board Connector, 80 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
Other features	PANEL MOUNT
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL SULFAMATE
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	1.85 mm
Termination type	SOLDER
Total number of contacts	80
Base Number Matches	1
