54F192F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F192F

54F192F: DescriptionDecade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size151KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

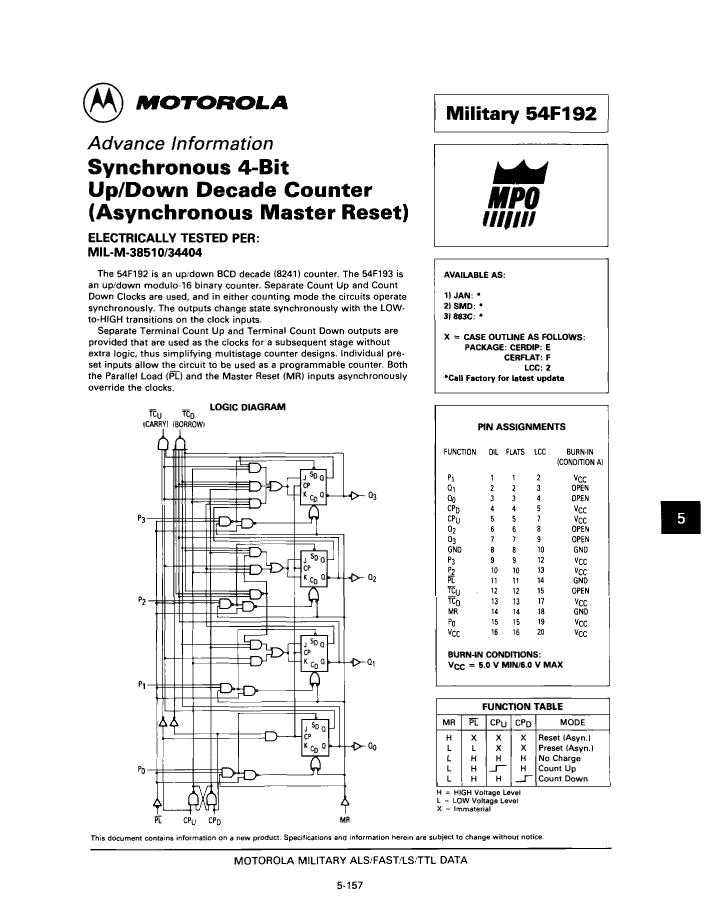

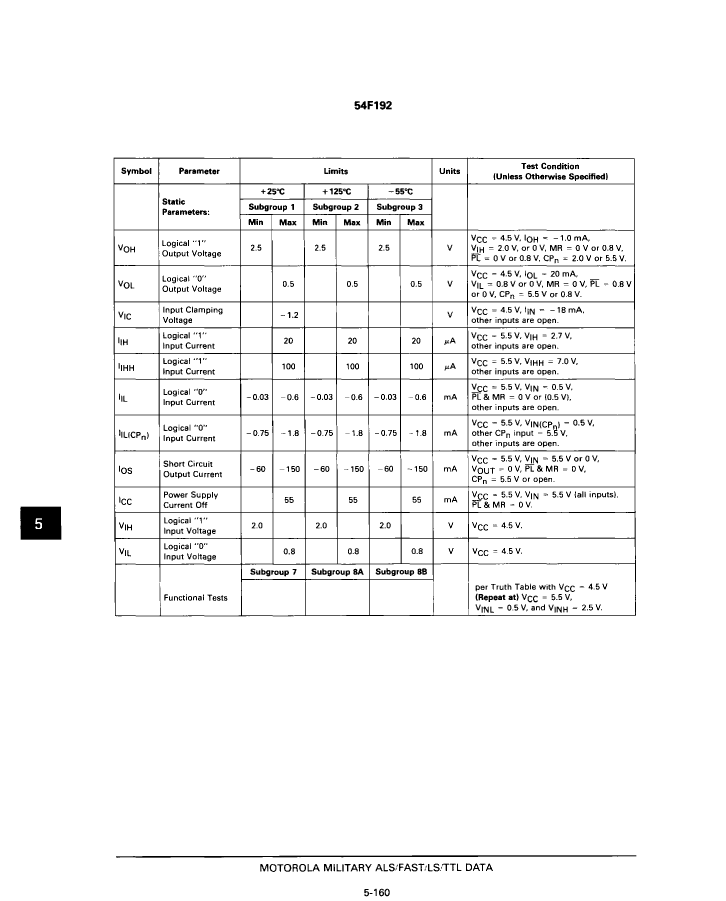

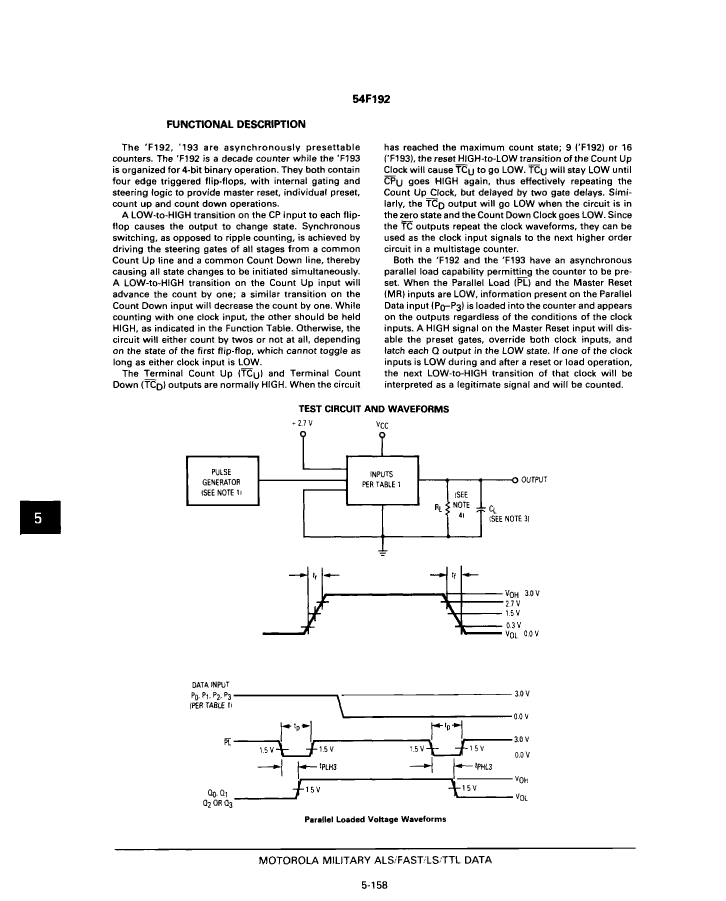

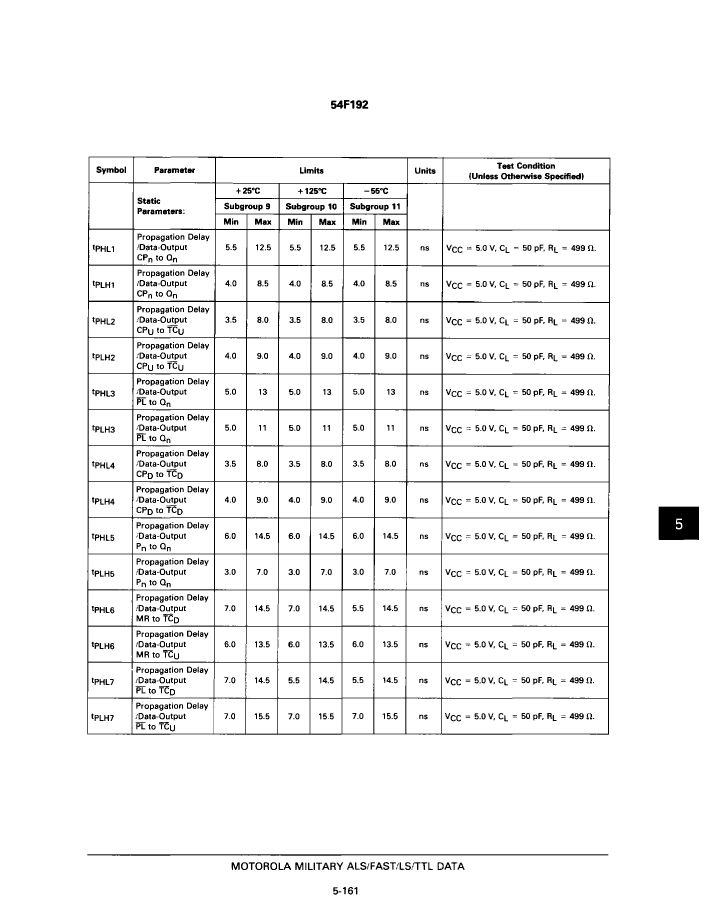

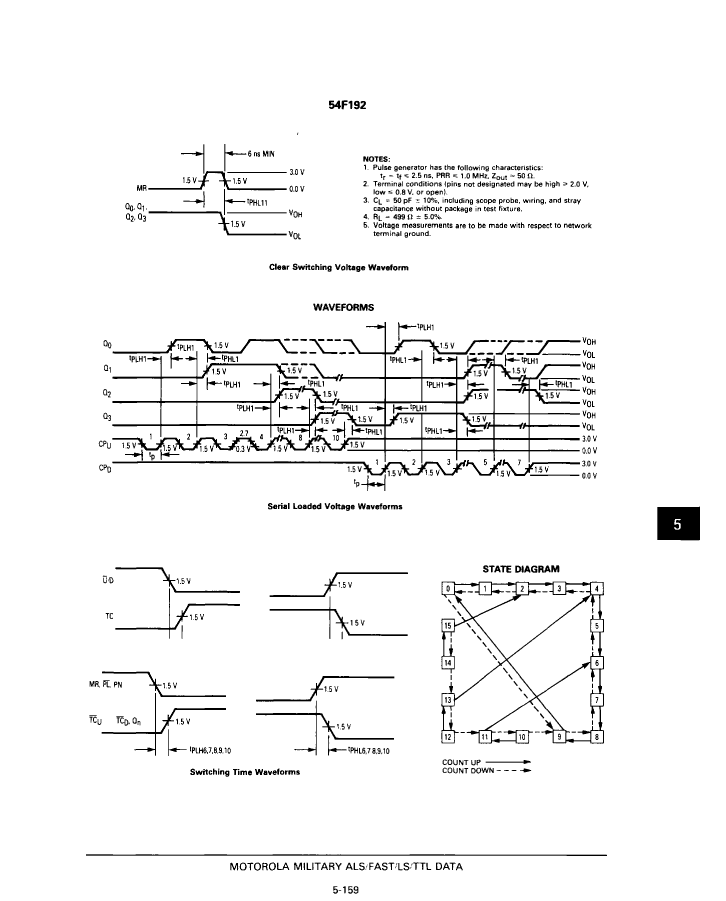

54F192F Overview

Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDFP16, CERAMIC, FP-16

54F192F Parametric

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknown
Other features	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Counting direction	BIDIRECTIONAL
series	F/FAST
JESD-30 code	R-GDFP-F16
length	9.65 mm
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	12.5 ns
Certification status	Not Qualified
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	6.415 mm
minfmax	90 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

54F192F Related Products

	54F192F	54F1922	54F192E
Description	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDFP16, CERAMIC, FP-16	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CQCC20, CERAMIC, LCC-20	F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, CDIP16, CERDIP-16
package instruction	DFP,	QCCN,	DIP,
Reach Compliance Code	unknown	unknown	unknown
Other features	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDFP-F16	S-CQCC-N20	R-GDIP-T16
length	9.65 mm	8.89 mm	19.3 mm
Load/preset input	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4
Number of functions	1	1	1
Number of terminals	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	QCCN	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE
propagation delay (tpd)	12.5 ns	12.5 ns	12.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.15 mm	1.9 mm	4.19 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	6.415 mm	8.89 mm	7.62 mm
minfmax	90 MHz	90 MHz	90 MHz
Base Number Matches	1	1	1
