Datasheet> All Categories > logic> logic> 54F74/BDAJC

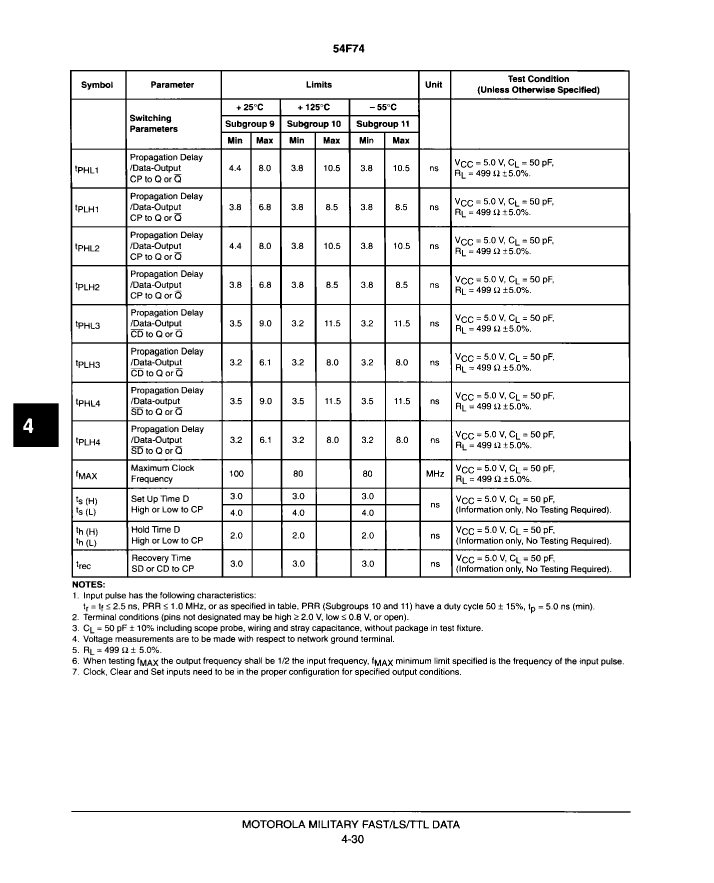

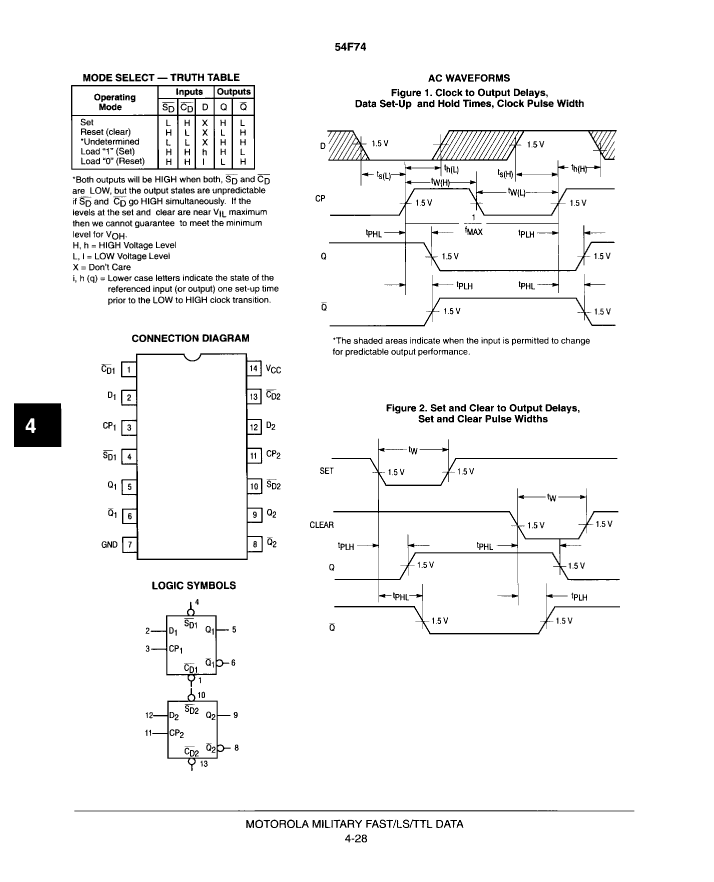

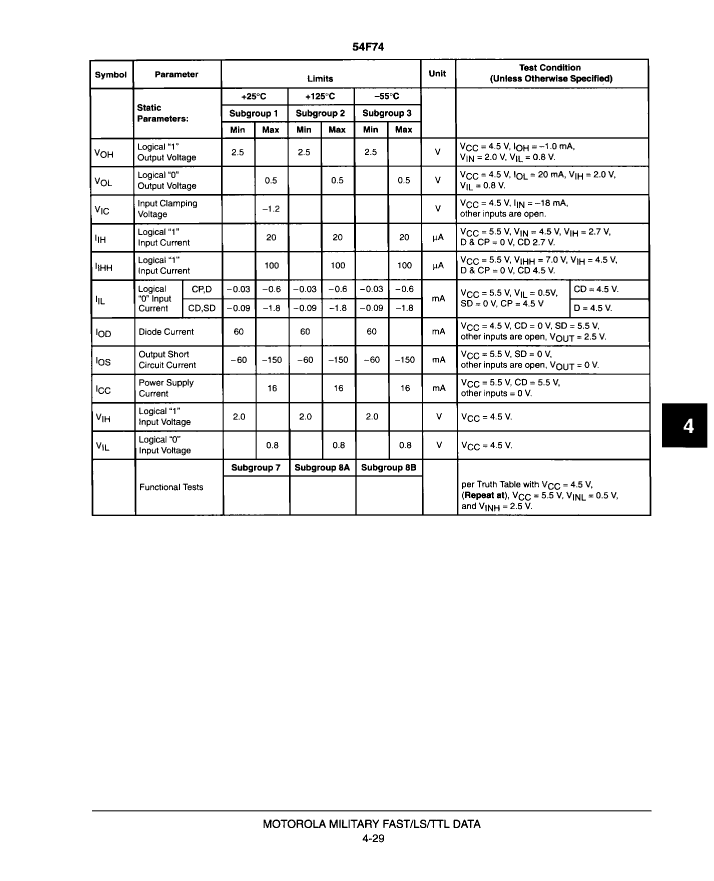

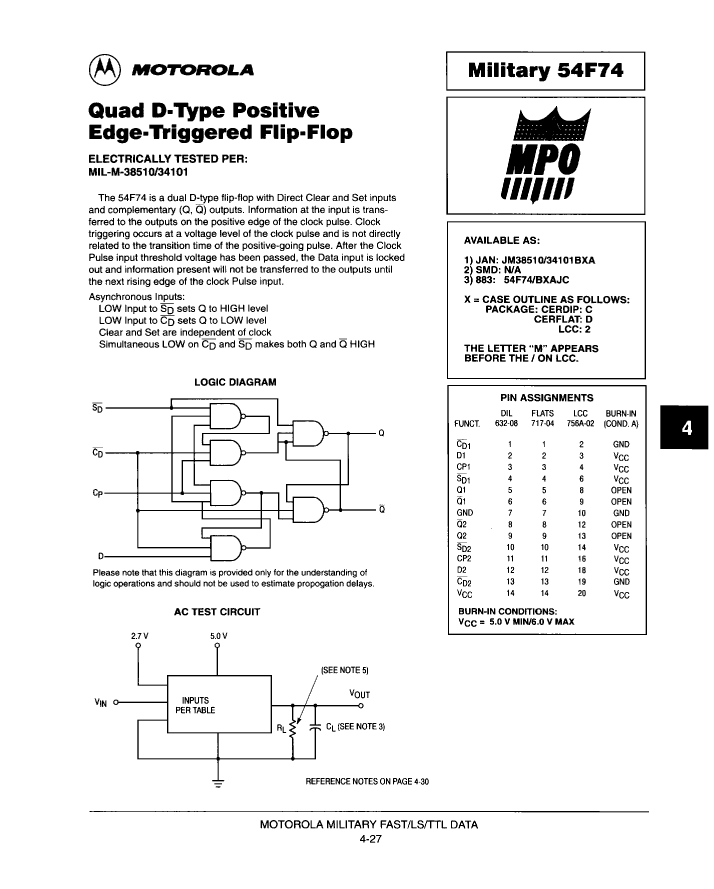

Preview

54F74/BDAJC: DescriptionF/FAST SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size105KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F74/BDAJC Overview

F/FAST SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP14, CERAMIC, FP-14

54F74/BDAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CERAMIC, FP-14
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
length	9.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	100000000 Hz
MaximumI(ol)	0.02 A
Number of digits	1
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	16 mA
propagation delay (tpd)	10.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	6.415 mm
minfmax	80 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

54F74/BDAJC Related Products

	54F74/BDAJC	54F74/BCAJC	54F74M/B2AJC
Description	F/FAST SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP14, CERAMIC, FP-14	F/FAST SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP14, CERDIP-14	F/FAST SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	CERAMIC, FP-14	DIP,	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDFP-F14	R-GDIP-T14	S-CQCC-N20
JESD-609 code	e0	e0	e0
length	9.65 mm	19.495 mm	8.885 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	1	1	1
Number of functions	2	2	2
Number of terminals	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	16 mA	16 mA	16 mA
propagation delay (tpd)	10.5 ns	10.5 ns	10.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.15 mm	5.08 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	6.415 mm	7.62 mm	8.885 mm
minfmax	80 MHz	80 MHz	80 MHz
Base Number Matches	1	1	1
Maximum Frequency@Nom-Sup	100000000 Hz	-	100000000 Hz
MaximumI(ol)	0.02 A	-	0.02 A
Encapsulate equivalent code	FL14,.3	-	LCC20,.35SQ
power supply	5 V	-	5 V
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B
Parts packaging code	-	DIP	QLCC
Contacts	-	14	20
