3204A-BNCM

Description
RF BNC Connector, Male
CategoryThe connector    The connector
File Size33KB,1 Pages
ManufacturerCobham Semiconductor Solutions
Download Datasheet Parametric Compare View All

3204A-BNCM Overview

RF BNC Connector, Male

3204A-BNCM Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number3204A-BNCM
Installation methodSTRAIGHT
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.35
Base Number Matches1

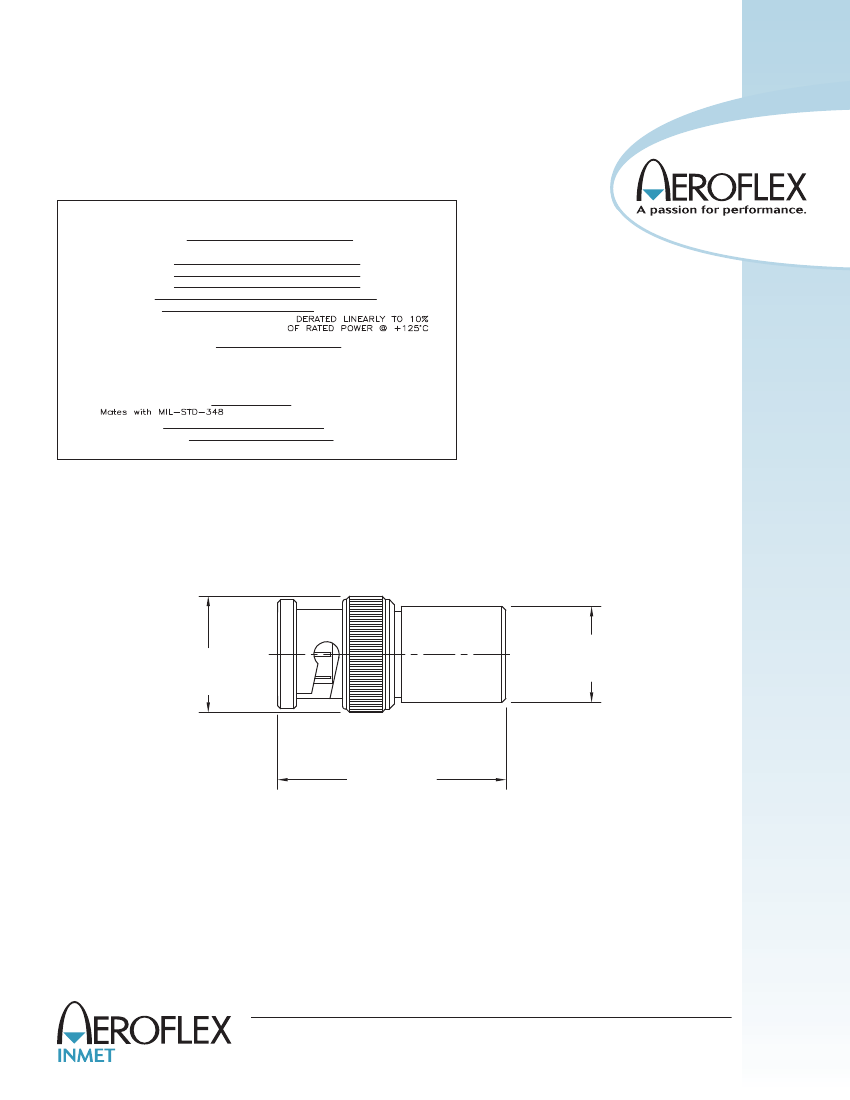

TERMINATIONS
BNC, DC - 4 GHz, 2 Watts
SPECIFICATIONS:
Models: 3204A-BNCM
Electrical:
Frequency Range
VSWR
DC - 1.0 GHz
1.0 - 2.5 GHz
2.5 - 4.0 GHz
Impedance
Power (Avg).
Operating Temp Range
DC - 4.0 GHz
1.10:1 MAX.
1.20:1 MAX.
1.35:1 MAX.
50 Ohms
2 Watts Avg. @ 25°C
-55°C to +125°C
Mechanical:
BNC Male Connectors
Coupling Nut
Center Conductor
Ternary Alloy Plated Brass
Nickel Plated Brass
Gold Plated Brass
Model Number:
3204A-BNCM
Ø.58±0.05
[14.80±1.27]
Ø.48±0.05
[12.20±1.27]
1.14 [29.00]
REF. ONLY
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design specifications are subject to change without notice.
Contact factory for technical specifications before purchasing or use.
3204A-BNCM: REV A
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet • inmetsales@aeroflex.com
