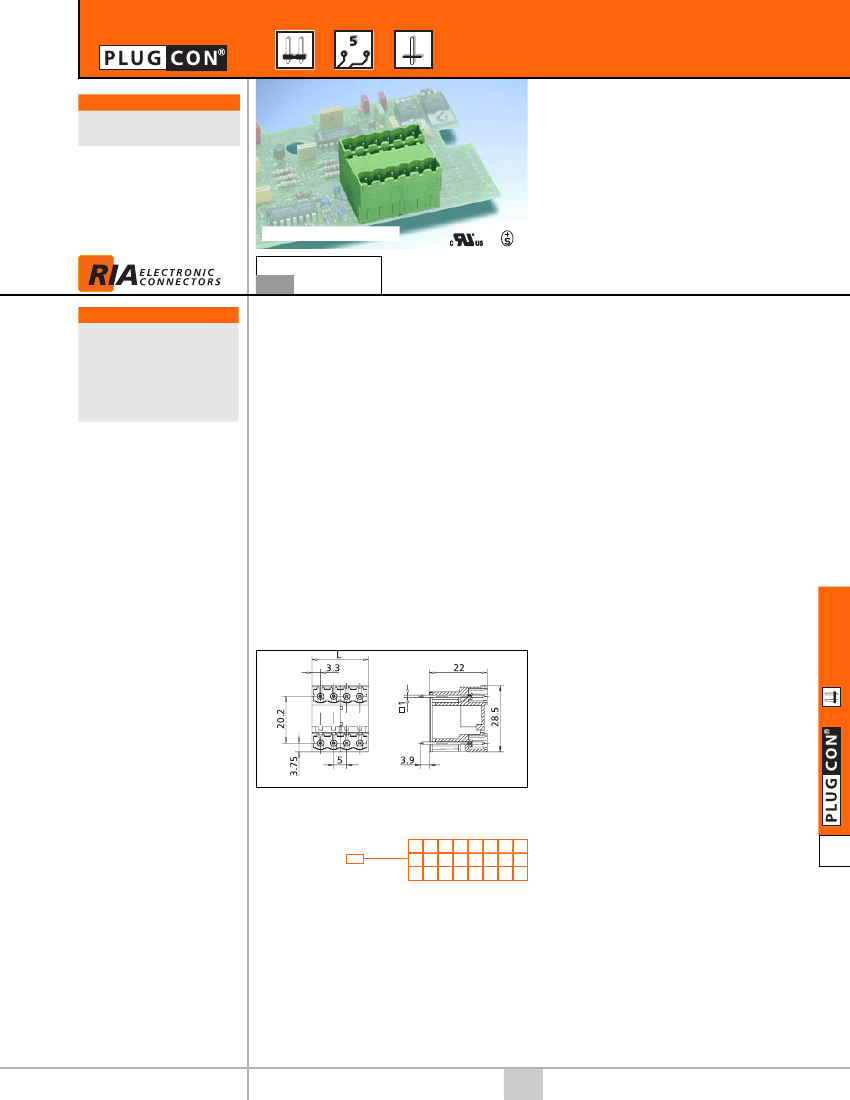

mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1
Type
278
Terminal block that mates with
Type 278
Type 349
Type 313
Type 314
Page DB-12
Page DB-10
Page DB-11
square pins
1 mm square
Electrical Data
Voltage
Current
Square pins
PCB hole diameter
300 V
12 A
1 mm square - mating
1 mm square - solder
1.5 mm
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
green
tin plating over nickel plating
4 to 48
Additional data - page H-3
Color
Pin
Pole sizes
Dimensions (mm)
L = (circuits - 1) x centerline + 6.6
Part Numbers
Part No.
392781
Other pole sizes on demand.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
Subject to technical changes and printing errors.
H-23
H
Type 278
Complete the part number
by adding the pole size.
centerline 5 mm
04 06 08 10 12 14 16
18 20 22 24 26 28 30 32
34 36 38 40 42 44 46 48
