3N74 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 3N74

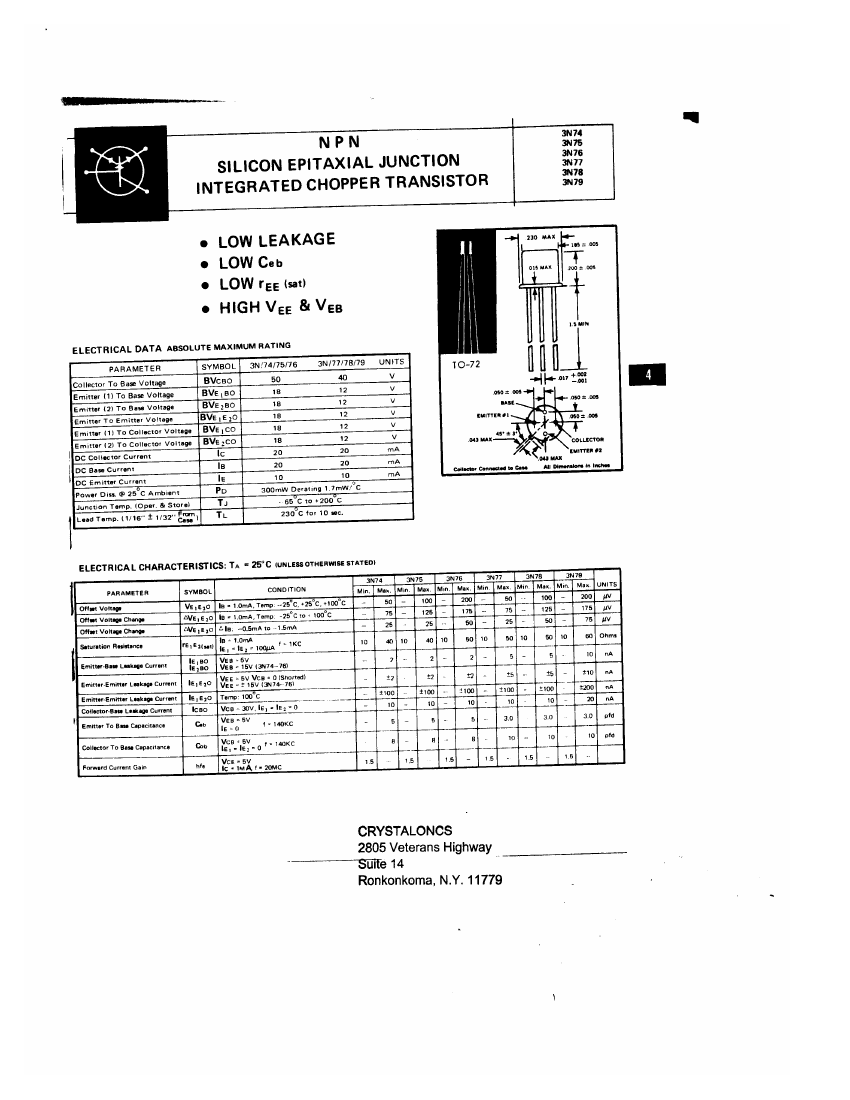

3N74: DescriptionSmall Signal Bipolar Transistor, 0.02A I(C), 1-Element, NPN, Silicon, TO-72,; CategoryDiscrete semiconductor The transistor; File Size54KB，1 Pages; ManufacturerCRYSTALONICS Inc.

Download Datasheet Parametric Compare View All

3N74 Overview

Small Signal Bipolar Transistor, 0.02A I(C), 1-Element, NPN, Silicon, TO-72,

3N74 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	CYLINDRICAL, O-MBCY-W4
Reach Compliance Code	unknown
Shell connection	COLLECTOR
Maximum collector current (IC)	0.02 A
Configuration	SINGLE
JEDEC-95 code	TO-72
JESD-30 code	O-MBCY-W4
JESD-609 code	e0
Number of components	1
Number of terminals	4
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	CHOPPER
Transistor component materials	SILICON
Nominal transition frequency (fT)	30 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

3N74 Related Products

	3N74	3N76	3N77	3N78	3N79	3N75
Description	Small Signal Bipolar Transistor, 0.02A I(C), 1-Element, NPN, Silicon, TO-72,	Small Signal Bipolar Transistor, 0.02A I(C), 1-Element, NPN, Silicon, TO-72,	Small Signal Bipolar Transistor, 0.02A I(C), 1-Element, NPN, Silicon, TO-72,	Small Signal Bipolar Transistor, 0.02A I(C), 1-Element, NPN, Silicon, TO-72,	Small Signal Bipolar Transistor, 0.02A I(C), 1-Element, NPN, Silicon, TO-72,	Small Signal Bipolar Transistor, 0.02A I(C), 1-Element, NPN, Silicon, TO-72,
package instruction	CYLINDRICAL, O-MBCY-W4	CYLINDRICAL, O-MBCY-W4	CYLINDRICAL, O-MBCY-W4	CYLINDRICAL, O-MBCY-W4	CYLINDRICAL, O-MBCY-W4	CYLINDRICAL, O-MBCY-W4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-72	TO-72	TO-72	TO-72	TO-72	TO-72
JESD-30 code	O-MBCY-W4	O-MBCY-W4	O-MBCY-W4	O-MBCY-W4	O-MBCY-W4	O-MBCY-W4
Number of components	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	CHOPPER	CHOPPER	CHOPPER	CHOPPER	CHOPPER	CHOPPER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Is it Rohs certified?	incompatible	incompatible	-	-	incompatible	incompatible
Base Number Matches	1	1	1	1	1	-
