67
Note for wire range
Additional wire sizes and/or
combinations of same size
wires as follows:
Type 69
#### 2 No. 22 - 18 AWG
(field-wiring);
2 No. 26 - 18 AWG or
1 No. 26 - 14 AWG
(factory-wiring)
Type 11
#(1) Wire range extended
to No. 30 AWG for
factory-wiring

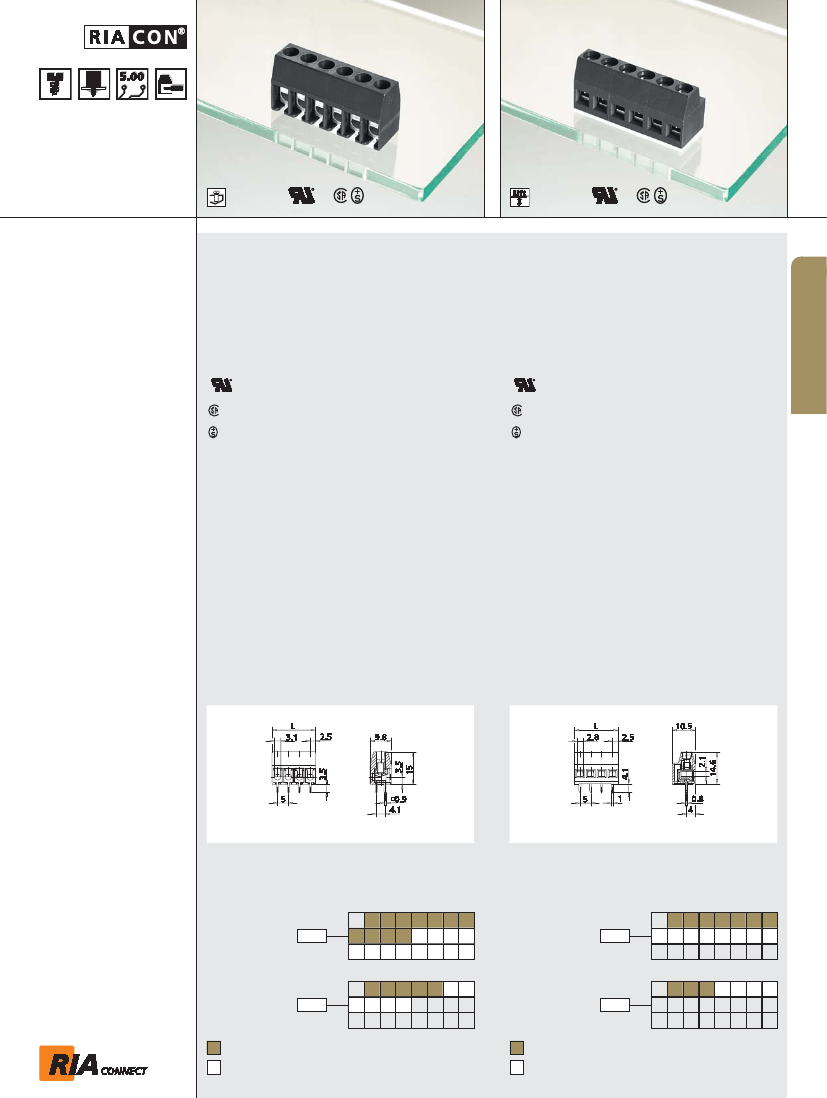

Type 069
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, wire protector
Type 011
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, lift system
A
Technical Data
V / A / AWG
V / A / AWG
300 / 20 / 22 - 12
300 / 20 / 22 - 12
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 28 - 12
300 / 15 / 22 - 14
0.33 - 1.5 mm² 250 V / 4 kV / 15 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.9 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
2 x 0.9 x 0.9 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
3.5 mm
Pole size
2 - 24
Color
black
Dimensions in mm
1 mm = 0.0394 in.
0.08 - 1.5 mm² 125 V / 4 kV / 13 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.9 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
7 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
4.1 mm
Pole size
2 - 16
Color
black
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 069
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 011
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
P/N
310691
Type 069
centerline 10 mm / 0.394 inches
P/N
310111
Type 011
02 03 04 05 06 07 08
09 10 11 12
centerline 10 mm / 0.394 inches
02 03 04 05 06 07 08
P/N
310692
P/N
310112
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
