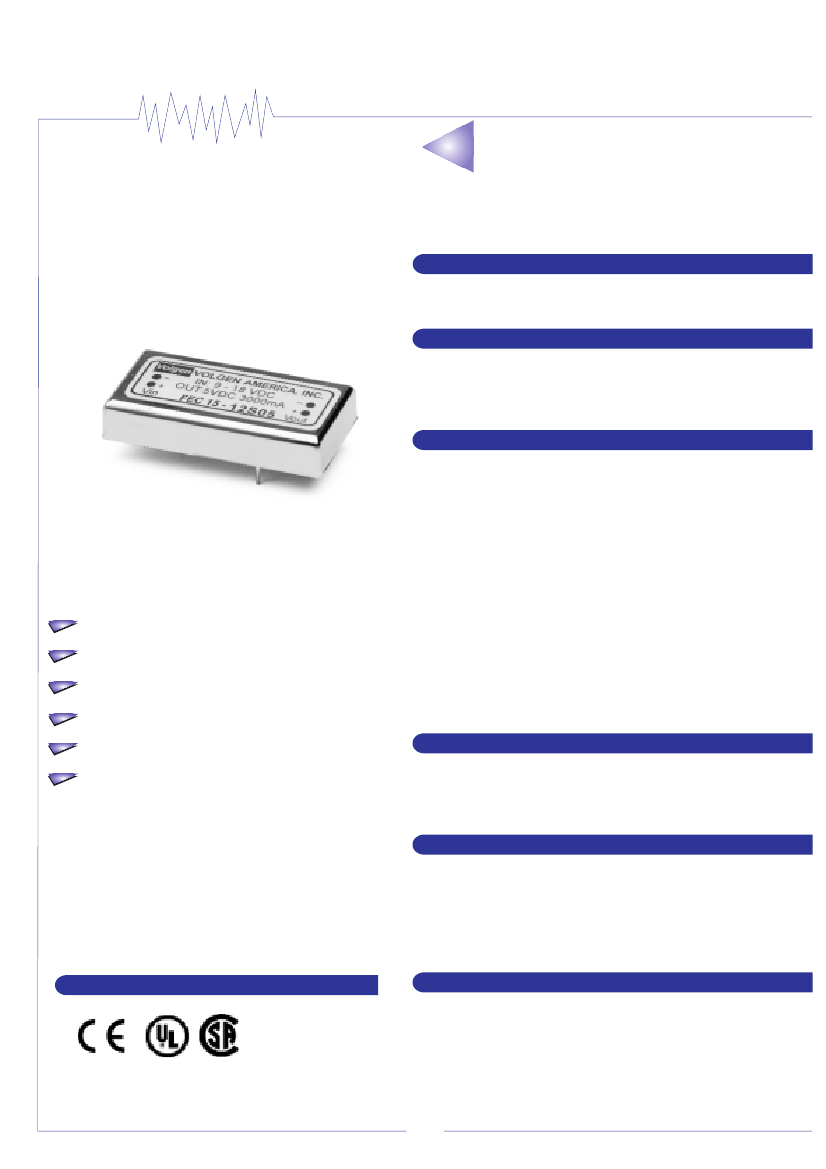

FEC15

SINGLE AND DUAL OUTPUT, HIGH DENSITY

15 WATTS DC/DC CONVER TERS

ELECTRICAL SPECIFICATIONS

All specifications are typical at nominal input, full load, and 25˚C

unless otherwise noted.

INPUT SPECIFICATIONS

Input Voltage Range 12V nominal......9 to 18V

24V nominal......18 to 36V

48V nominal......36 to 72V

Input Filter...........................................Pi Network

OUTPUT SPECIFICATIONS

Voltage Accuracy................................±1%

Ripple and Noise, 20 MHz BW

Single Output......................................50mV P-P, 20mV RMS

Dual Output.........................................75mV P-P, 20mV RMS

Line Regulation, HL-LL.......................±1.0%

Load Regulation, 100% to 10%..........±1.0% (Single)

±2.0% (Dual)

Temperature Coefficient......................±0.02%/˚C

Short Circuit Protection.......................Continuous

Overvoltage Protection Threshold:

3.3V Output.........................................3.9V

5V Output............................................6.2V

12V Output..........................................15V

15V Output..........................................18V

Transient Response Recovery Time,

25% Load Step Change......................500µsec

FEATURES

2:1 INPUT RANGE

INCLUDE 3.3VDC OUTPUT

SIX-SIDED SHIELD

2 YEAR WARRANTY

DELIVERS 15 WATTS AT 71˚C AMBIENT

SMALL 1”X2” X0.375” PACKAGE

GENERAL SPECIFICATIONS

Switching Frequency...........................500kHz, (Single) typ.

300kHz, (Dual) typ.

Isolation Voltage.................................1600VDC, min

Isolation Resistance...........................10˚Ohms , min

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature Range............-25˚C to +71˚C

Storage Temperature Range................-55˚C to +125˚C

Cooling.................................................Free-air Convection

EMI/RFI................................................Six-sided Continuous Shield

MTBF....................................................5.651x10

Hours

(MIL-HDBK-217F TA=25˚C Full Load)

SAFETIES / EMI

PHYSICAL SPECIFICATIONS

TUV

Case Material.....................................Nickel-Coated Copper with

Non-Conductive Base

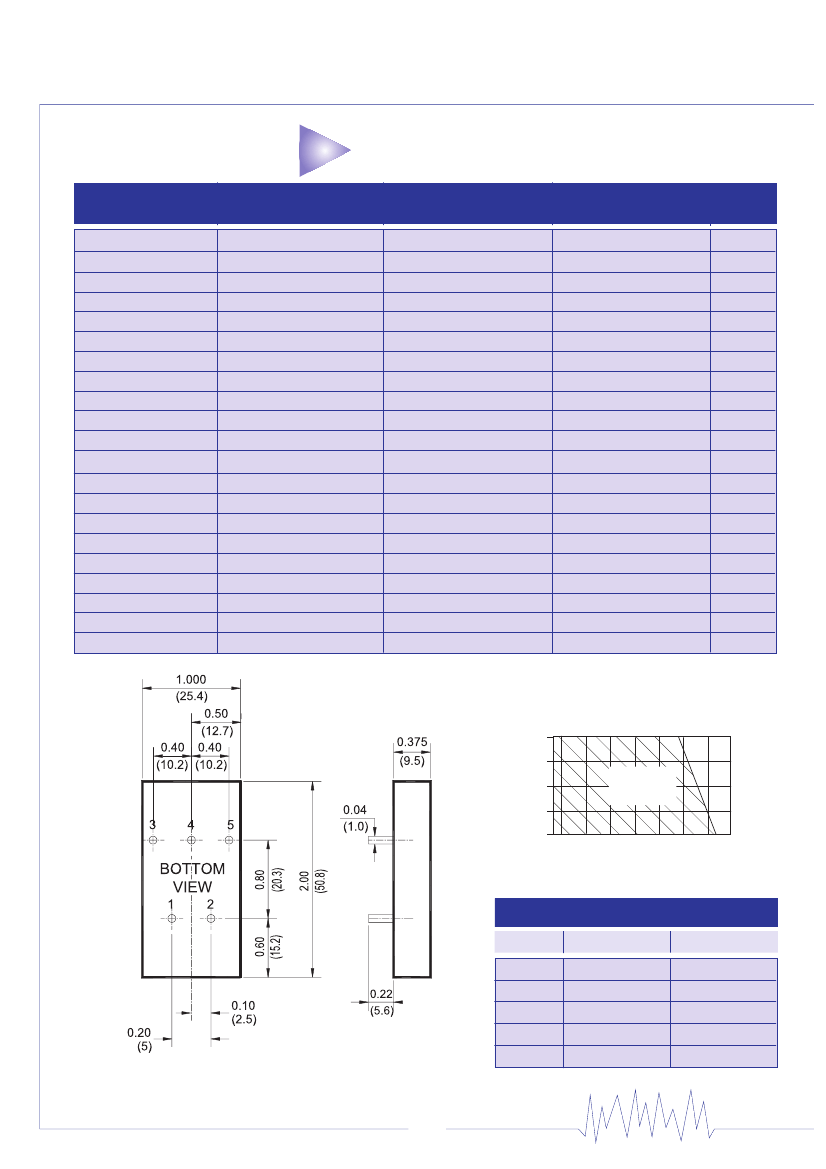

Dimensions.........................................2.0x1.0x0.375 Inches

(50.8x25.4x9.5 mm)
