31028103

Description
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size101KB,1 Pages
ManufacturerMETZ CONNECT
Websitehttp://www.metz-connect.com/
Environmental Compliance
Download Datasheet Parametric View All

31028103 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

31028103 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch5.08 mm
Termination typeSOLDER
Total number of contacts3
UL Flammability Code94V-0
Base Number Matches1

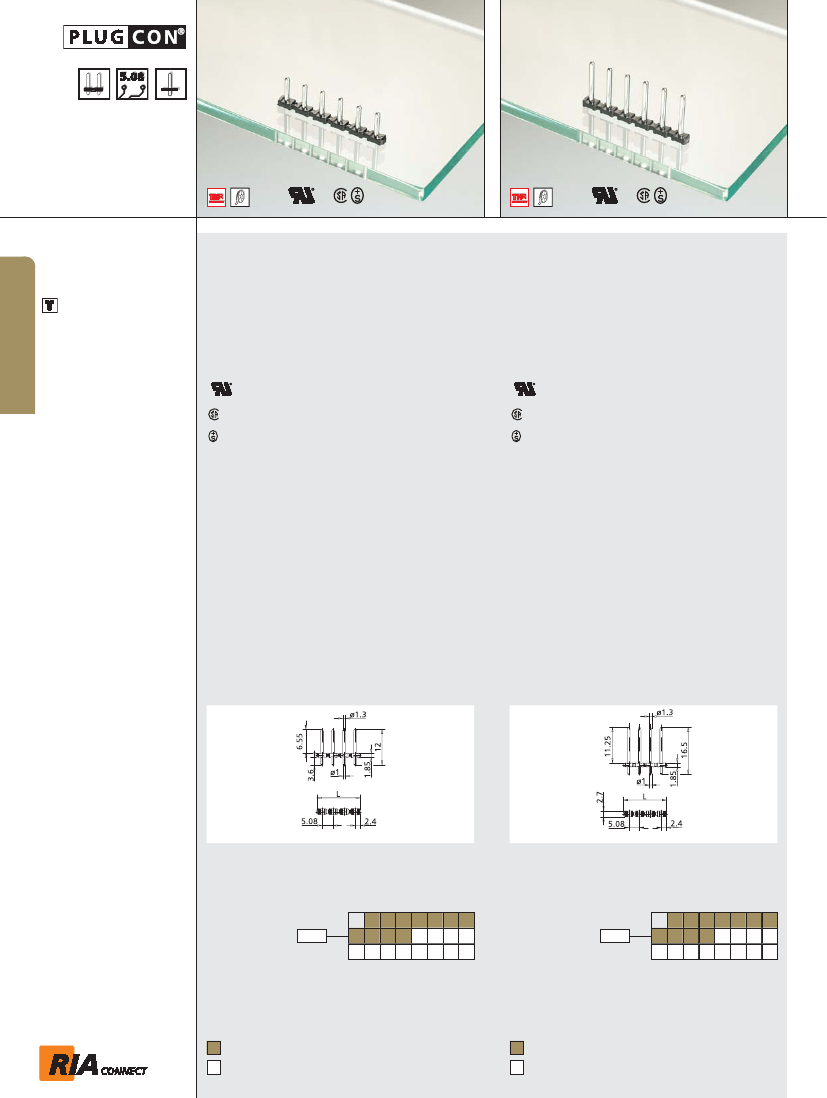

142
Terminal blocks
A
Type 018
Header, centerline 5.08 mm / 0.200 inches, vertical
mounting, round contact pins 1.3 mm / 0.051 inches
Type 028
Header, centerline 5.08 mm / 0.200 inches, vertical
mounting, round contact pins 1.3 mm / 0.051 inches
to
Type 018
and
Type 028
Type 079
page 97
Technische Daten
V/A
V/A
300 / 15
300 / 15
250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.78 mm
Insulating material class
CTI 400
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.6 mm
Pole size
2 - 24
Color
black
Technische Daten
V/A
V/A
300 / 15
300 / 15
250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.78 mm
Insulating material class
CTI 400
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.6 mm
Pole size
2 - 24
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 4.8 mm / 0.189 inches
L = (pole size - 1) x centerline + 4.8 mm / 0.189 inches
Part numbers (P/N)
Type 018
centerline 5.08 mm / 0.200 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 028
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 5.08 mm / 0.200 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
310181
P/N
310281
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
