31041112

Description
Board Connector,
CategoryThe connector    The connector
File Size97KB，1 Pages
ManufacturerMETZ CONNECT
Websitehttp://www.metz-connect.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

31041112 Overview

Board Connector,

31041112 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD CONNECTOR
OptionsGENERAL PURPOSE
Base Number Matches1

Preview

Download Datasheet

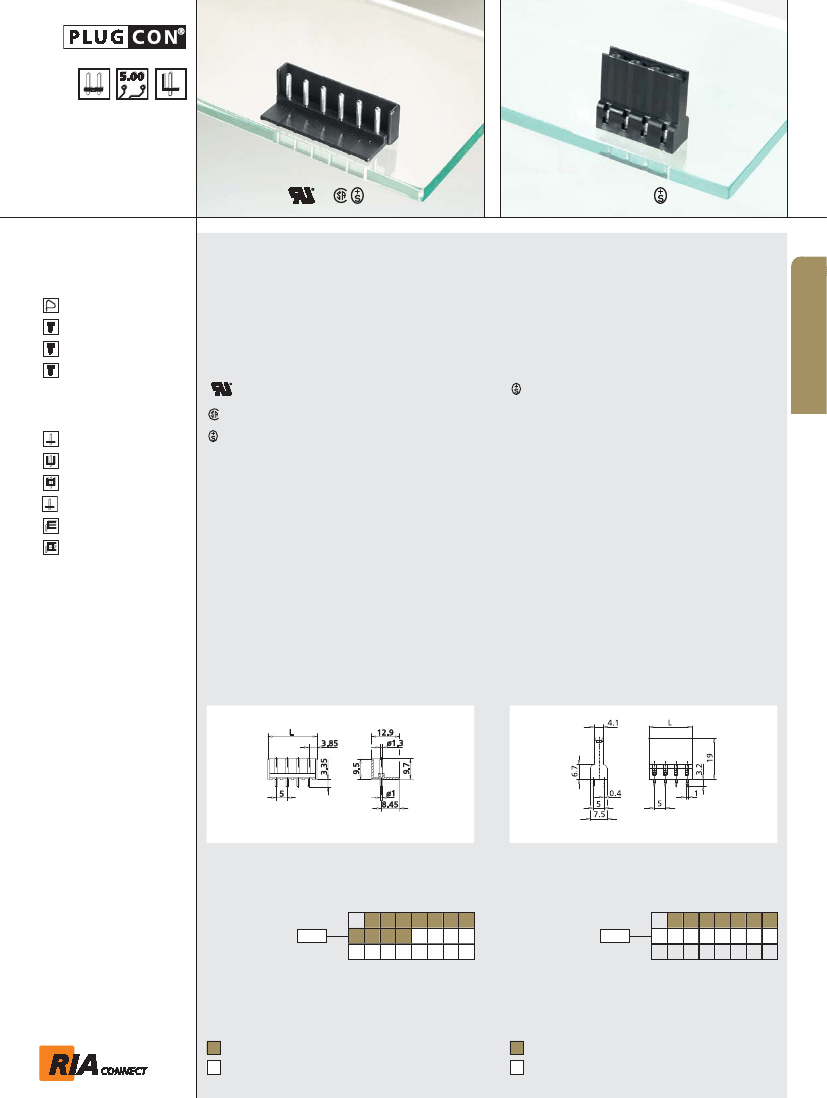

129
Terminal blocks
to
Type 041
ASP025
Type 007
Type 077
Type 107
page 47
page 89
page 89
page 90
Type 041
Header, centerline 5 mm / 0.197 inch, vertical
mounting, round contact pins 1.3 mm / 0.051 inch,
with guidance
Type 026
PCB socket strip, centerline 5 mm / 0.197 inch, vertical
mounting
A
Technical Data
V/A
300 / 15
300 / 15
250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.7 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP00
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.35 mm
Pole size
2 - 24
Color
black
Technical Data
250 V / 4 kV / 5 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Min. insul. strip length
12 mm
Solder pin dimension
0.4*1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
3.2 mm
Pole size
2 - 16
Color
black
to
Type 026
Type 017
Type 019
Type 020
Type 027
Type 029
Type 030
page 126
page 130
page 132
page 126
page 137
page 139
V/A
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 7.7 mm / 0.303 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 041
centerline 5 mm / 0.197 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 026
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
P/N
310411
P/N
310261
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
