F
orce
Optical Broadcast Systems
Model 3015
Data
Ethernet Data Transceiver
Allows Teleport operators to implement
SNMP or web page monitoring and control
of 3000 Series modules over optical fiber.
3RU Rack-mount configuration.
1310 nm operation to 20 km or
1550 nm operation to 60 km.
Half duplex or full duplex
operation at 10 or 100 Mb/s.
The module will auto-detect
whether transmission is half duplex
or full duplex and the data rate.
Front panel indicator LEDs
give a quick assessment of
the module’s operational status.

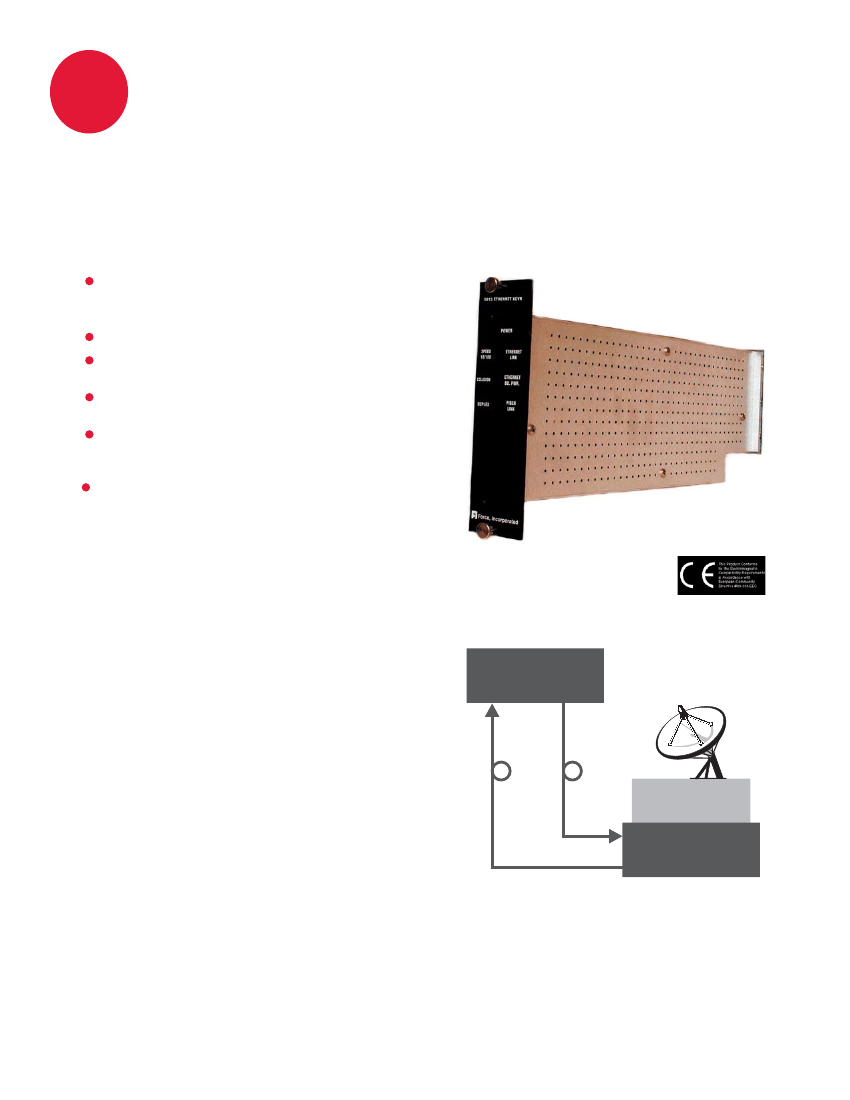

Model 3015 Ethernet Data Module
The Force Model 3015 Ethernet Data Transceiver Module
is designed to allow system operators to incorporate
SNMP monitoring and control of the modules in the 3000
Series Satellite L-Band/IF 70/140 MHz transport system.
By installing the Model 3015 in a 3000 Series transport
system, the Teleport operator has a means of
implementing a system management and control
interface via an optical link, eliminating the need for
additional cabling in remote locations. The output of the
Ethernet module connects to the input of a Model
3000UB or 3000UD power supply with integral SNMP
interface, giving the operator access to real-time system
status via an SNMP management tool. The output of the
receiving Ethernet module may also be connected to a
hub or router, allowing the user to connect multiple
3000UB or 3000UD power supplies housed in the same
outbuilding. Ethernet also provides the user with the
ability to create computer networks between distant
locations or interface with equipment at 10 or 100 Mb/s
rather than RS-232 or other data protocols. As part of the
3000 Series L-Band family, the Model 3015 provides the
professional satellite operator a high performance
solution for satellite communications.
3000 Chassis, 3015
Module, and Transport
Transmitters/Receivers
Satellite Pedestal
and Associated
Equipment
20 km
(@ 1310 nm)
3000 Chassis, 3015
Module, and Transport
Transmitters/Receivers
825 Park Street, Christiansburg, VA 24073 • USA (800) 732-5252 • TEL (540) 382-0462 • FAX (540) 381-0392 •csr-sales@forceinc.com • www.forceinc.com
© 2005 by Force, Incorporated. Force, Incorporated reserves the right to make changes to the product described in this document in the interest of product improvement. All rights reserved.
Specifications and Ordering Information
Optical and Performance Characteristics
Min
Opt. Output Pwr. (1310 nm)
Opt. Output Pwr. (1550 nm)
Optical Sensitivity (all Rx)
Optical Loss Range
Operating Wavelength
Operating Wavelength
Ethernet Data Rate
Data Packet Error Rate
Typ
-11
-9
-34
1310
1550
10
100
0.01
Max
Units
dBm
dBm
dBm
dB
nm
nm
Mb/s
Mb/s
%
Electrical Characteristics
Min
Power Supply Voltage
Current Draw
Typ
+20
300
Max
Units
VDC
mA
0
26
Physical Characteristics
Min
Module Weight
Module Dimensions
Typ
Max
8
227
5.056 x 1.39 x 12.00
129 x 35 x 305
Units
oz.
g
in.
mm
1. This product conforms to the Electromagnetic Compatibility
Requirements in accordance with European Community
Directive #89-336-EEC.
Environmental Characteristics
Operating Temp. Range
Storage Temp. Range
Humidity
Min
-0
-40
5
Typ
Max
+50
+60
95
Units
°C
°C
%

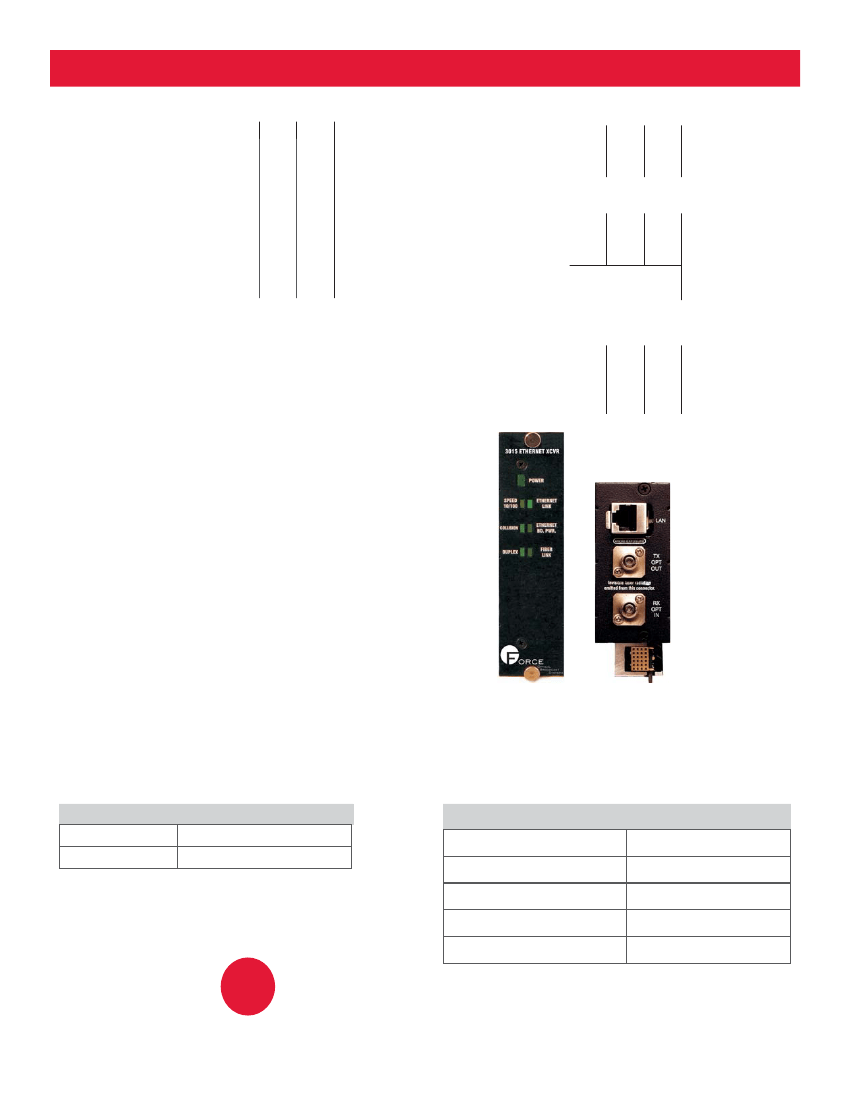

Model 3015 Data Module Front and Rear Panels
Transceiver P/N
3010 Transceiver Options
3RU, 1310 nm, SC/APC
3RU, 1550 nm, SC/APC
Ethernet Data
3015X-SCSP
1
3015X-SDSP
1
3RU Chassis and all Power Supplies
Chassis, Power Supply and Panel Options
3RU Chassis, Holds 8 Modules and 2 P.S.
3RU Power Supply, Universal AC
Part Number
3000CB-NN
3000UC-NN
PS3000
3000EA-NN
3000EB-NN
1. System performance specifications indicated for use with 9/125 µm single-mode
fiber. FC/APC connector options are also available. Contact Force, Inc. for
complete specifications and part numbers.
Wall-mount Power Supply, +20 Volts DC,
Used with Stand-alone Units
3RU Blank Panel for Unused Module Slots
(optional)
3RU Blank Panel for Unused P.S. Slot (optional)
Rev. 2.5 12/01/05
