31-2264

Description
RF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack
CategoryThe connector    The connector
File Size69KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

31-2264 Overview

RF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack

31-2264 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresAPPLICABLE CABLES: RG 59/U; RG 62/U; RG 140/U; RG 210/U
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF TNC CONNECTOR
Contact to complete cooperationGOLD/SILVER
Contact completed and terminatedGOLD/SILVER
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.18 dB
insulator materialTFE/DELRIN
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberTNC
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCRIMP
voltage standing wave ratio1.3
Base Number Matches1

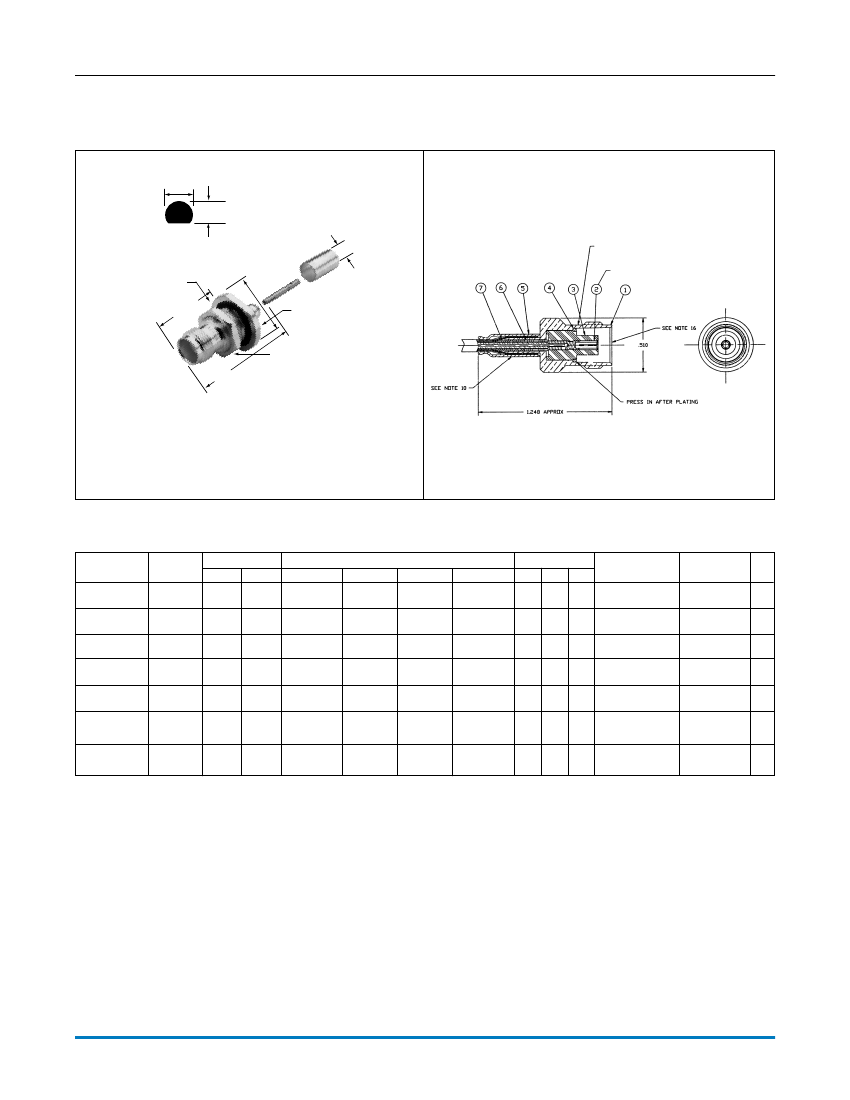

TNC
Jacks
Fig. 1
.510(13.0)
Y
Amphenol
®
Fig. 2
.475(12.1)
c•
dia.
e
max.
panel
.812
(20.6)
b
.687(17.4)
across
2 flats
.625(15.9)
hex nut
as
TNC Crimp Type Bulkhead Jack
31-2318
31-2264
31-2389
31-2264-RFX
31-2389-RFX
Cable Jack Assembly
79600
31-2317
TNC ANGLE JACKS
Cable
RG-/U
59, 62,
140, 210
58, 141A
59
59, 62
174, 188, 316
Conn.
Type
Blkh. Jack
Blkh. Jack
Blkh. Jack
Blkh. Jack
Blkh. Jack
Straight
Cable Plugs
Straight
Cable Plug
Cable Attachment
Outer
Inner
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Dimensions, inches (millimeters)
a
b
c
q
e
1.417
1.407
1.38
1.19
1.31(33.3)
s
.687
.625
.510
.470
.795(20.2)
.261
.206
.260
.123
.115(2.9)
.160(4.1)
.240(6.1)
.138(3.5)
.138(3.5)
.115(2.9)
Notes
CAI Plt. Ins.
C36
C36
C36
C36
C36
P34
P15
P15
P15
P15
D1
D1
D23
D23
D1
Military
Number
Amphenol
Number
31-2264
31-2389
31-2264-RFX
31-2389-RFX
31-2318
*
Fig.
1
1
1
1
1
58
Clamp
Solder
1.25
.625
.562
C34
P17
D1
79600
2
174, 188, 316
Crimp
Crimp
1.248
.510
.261
C36
P15
D1
31-2317
2
* Recognized under the component program of U.L., Inc.
s
Includes outer ferrule
Amphenol Corporation Tel: 800-627-7100
www.amphenolrf.com
144

31-2264 Related Products

31-2264 31-2317
Description RF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack RF TNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug
Reach Compliance Code unknown unknown
Other features APPLICABLE CABLES: RG 59/U; RG 62/U; RG 140/U; RG 210/U APPLICABLE CABLES: RG 174/U; RG 188/U
Body/casing type JACK PLUG
Characteristic impedance 50 Ω 50 Ω
Connector type RF TNC CONNECTOR RF TNC CONNECTOR
Contact to complete cooperation GOLD/SILVER GOLD/SILVER
Contact completed and terminated GOLD/SILVER GOLD/SILVER
Contact point gender FEMALE FEMALE
Coupling type THREADED THREADED
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
Insertion loss 0.18 dB 0.18 dB
insulator material TFE/DELRIN TFE/DELRIN
JESD-609 code e4 e4
MIL compliance NO NO
Manufacturer's serial number TNC TNC
Installation method STRAIGHT STRAIGHT
Installation type CABLE CABLE
Maximum operating frequency 11 GHz 11 GHz
Options GENERAL PURPOSE GENERAL PURPOSE
Panel mounting YES NO
Termination type CRIMP CRIMP
voltage standing wave ratio 1.3 1.3
Base Number Matches 1 1
