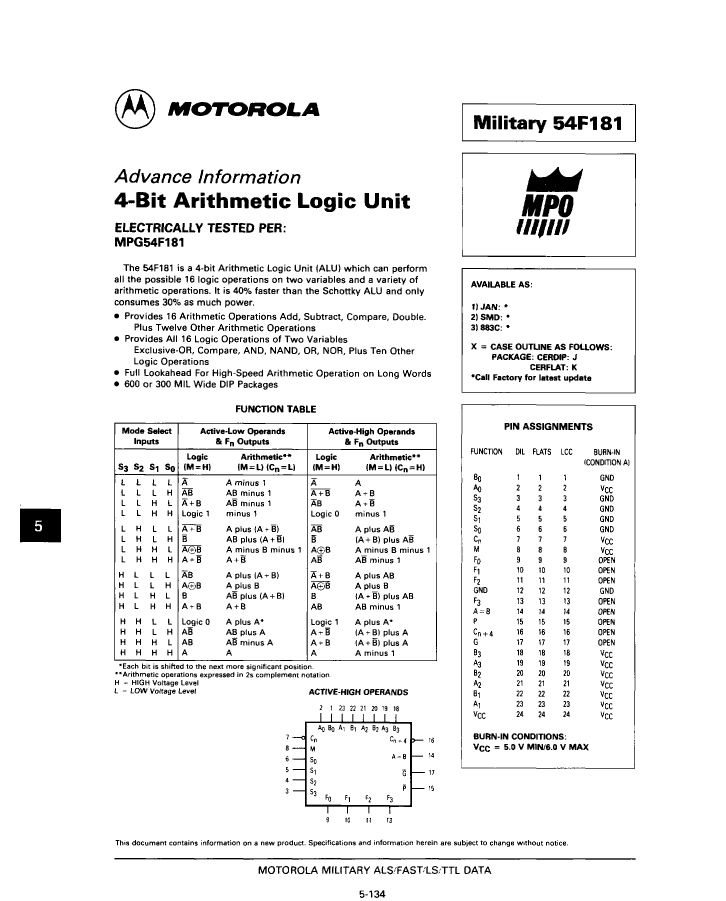

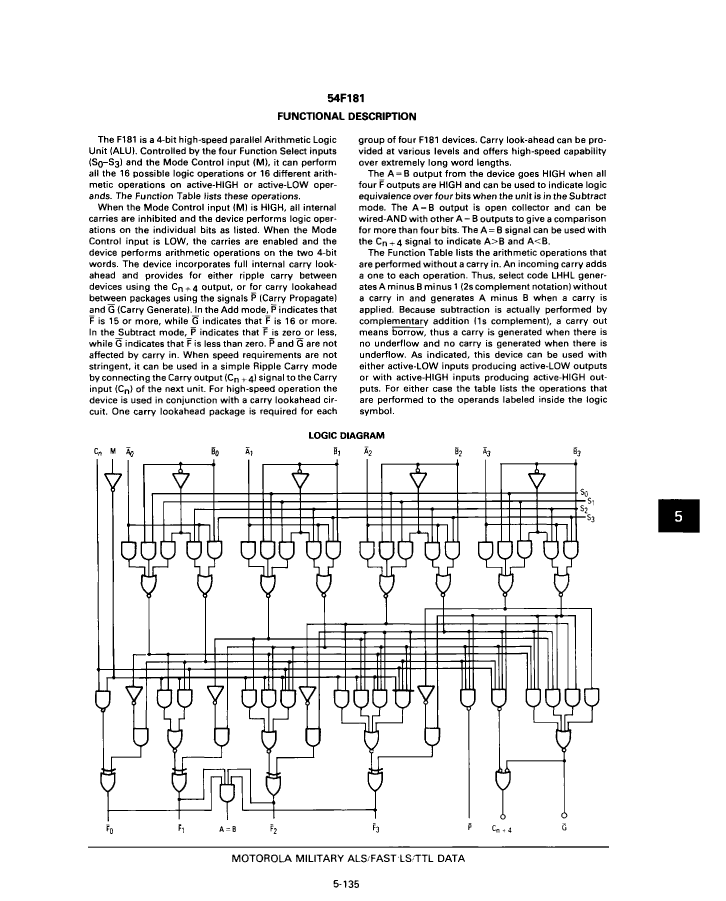

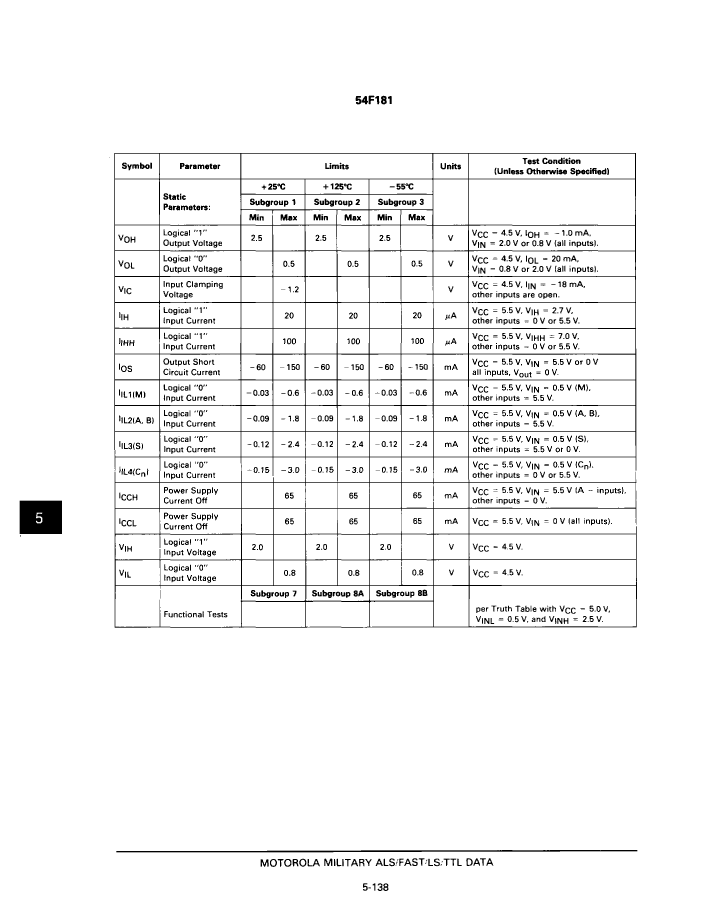

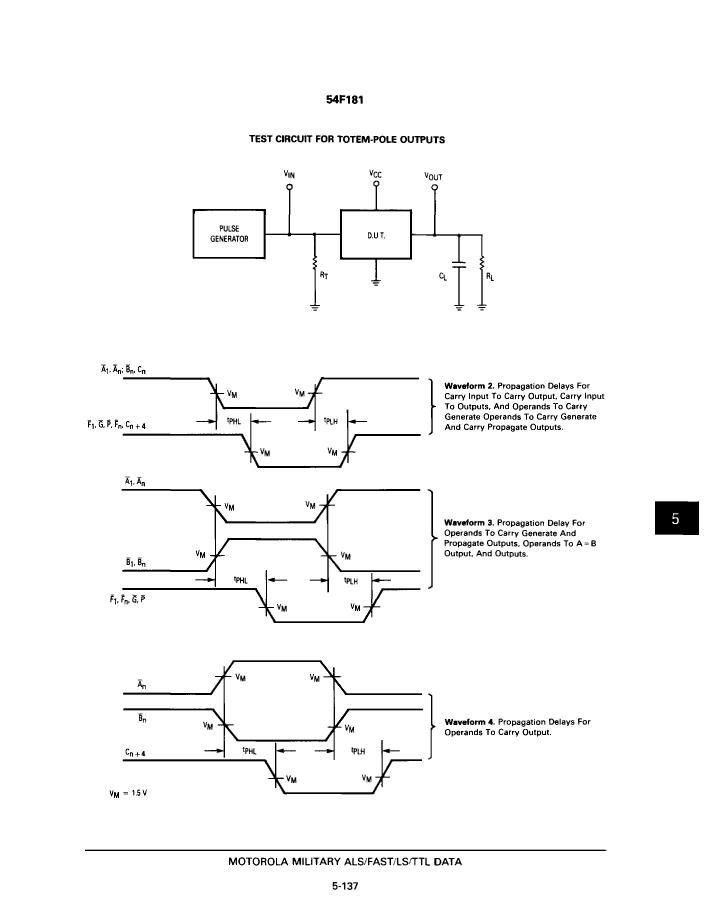

54F181K datasheet, PDF - EEWORLD Datasheet

54F181K: DescriptionArithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, CDFP24, CERAMIC, FP-24; Categorylogic logic; File Size175KB，7 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F181K Overview

Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, CDFP24, CERAMIC, FP-24

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknown
Other features	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; WITH INTERNAL CARRY LOOKAHEAD
series	F/FAST
JESD-30 code	R-CDFP-F24
length	15.24 mm
Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of digits	4
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Maximum seat height	2.03 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	9.59 mm
Base Number Matches	1

	54F181K	54F181J
Description	Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, CDFP24, CERAMIC, FP-24	Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, CDIP24, CERDIP-24
package instruction	DFP,	DIP,
Reach Compliance Code	unknown	unknown
Other features	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; WITH INTERNAL CARRY LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; WITH INTERNAL CARRY LOOKAHEAD
series	F/FAST	F/FAST
JESD-30 code	R-CDFP-F24	R-CDIP-T24
length	15.24 mm	32.005 mm
Logic integrated circuit type	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT
Number of digits	4	4
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
propagation delay (tpd)	18 ns	18 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.03 mm	5.59 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	9.59 mm	15.24 mm
Base Number Matches	1	1
