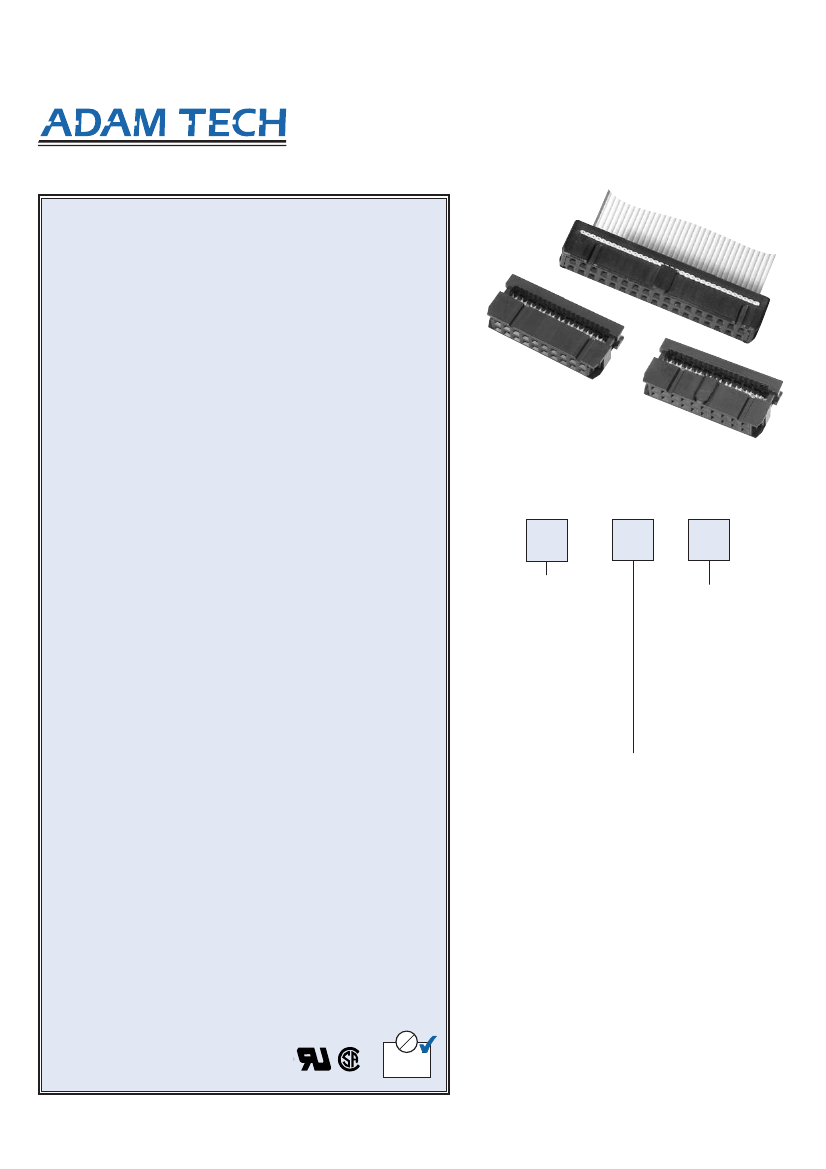

.100" IDC SOCKET
Adam Technologies, Inc.
.100" X .100" [2.54 X 2.54] CENTERLINE
FCS SERIES
INTRODUCTION:
Adam Tech FCS Series .100" IDC Sockets are extremely popular,
low profile, precision designed flat cable sockets that feature .100"
pin to pin and row to row centerlines. These sockets quickly and
easily mass terminate flat cable in one simple step. Their versatility
allows them to mate with a multitude of .025" sq. post pin headers.
Our superior selectively gold plated contact design provides a
smooth high pressure wiping action to ensure excellent continuity.
They are used with a single layer of .050" flat cable. Their small size,
light weight, low cost and high density make them ideal for use in
many applications.
FEATURES:
Choice of Single or Dual beam contact design
Low Profile and High Density
Uses Single layer .050" standard Flat Cable
Quickly and easily mass terminates Flat Cable
Smooth High Pressure Wiping Contacts
MATING CONNECTORS:
Adam Tech .100" BHR series box headers and PH2 series pin
headers
SPECIFICATIONS:
Material:
Insulator: PBT, glass reinforced, rated UL94V-0
Insulator Color: Black
Contacts: Phosphor Bronze
Contact Plating:
Gold flash (30
µin
optional) over nickel underplate on contact area,
tin over copper underplate on IDC area
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max.
Contact resistance: 30 mΩ max. initial
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: FCS-D2: 0.5 lbs per contact max.
Withdrawal force: FCS-D2: 0.094 lbs per contact min.
Recommended wire size: 28 Awg stranded
Cable retention: 28 lbs. min axial force per inch.
Mating durability: 500 cycles min.
Temperature Rating:
Operating temperature: -40°C to +105°C
PACKAGING:
Anti-ESD plastic trays
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
ORDERING INFORMATION
FCS
SERIES INDICATOR
FCS
= Flat Cable
IDC Socket
with standard
single wipe
contacts
FCS-D2
= Flat cable
IDC socket
with dual
wipe contacts
50
SG
PLATING
SG
= Selective
gold plating
POSITIONS
06, 08, 10, 12, 14, 16, 20,
24, 26, 30, 34, 40,44, 50,
56, 60, 62, 64
STRAIN RELIEF:
FSR -
XX( XX = No. of Positions]
PULL TABS:
PT -
(No. of positions]
Note:
Mating box headers
for this series
located on page 257
KEYING PLUGS:
FCS-K
(Key plugs can also be molded into connector,
consult factory]
Pb
UL
®
®
®
D E
V
RoHS
COMPLIANT
2002
/ 95
/ EC
OPTIONS:
Add designator(s) to end of part number
30
= 30 µin gold in contact area
GY
= Gray color insulator
N
= No polarization bump
320
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
