PTC thermistors for
switching applications
Plastic case, 110 V and 230 V
Series/Type:
Date:
B593**
November 2009
© EPCOS AG 2009. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
Switching applications
PTC thermistors in plastic case, 110 V and 230 V
Applications
Delayed switching of loads
For frequent switching
Starting resistance in switch-mode power
supplies
Features
Encased thermistor disk with clamp contacts
Flame-retardant plastic case
Case material UL-listed
Silver-plated lead-free solder pins
Manufacturer's logo and type designation
stamped on in white
Stable performance throughout
100 000 switching cycles
RoHS-compatible
Delivery mode
Packed in blister trays
General technical data
Switching cycles
Tolerance of R
R
Operating temperature range
Operating temperature range
Dimensional drawing
Dimensions in mm
(V = 0)
(V = V
max
)
N
∆R
R
T
op
T
op
100000
±25
25/+125
0/+60
%
°C
°C
Electrical specifications and ordering codes
Type
R
R
Ω
R
min
Ω
I
R
mA
I
S
mA
100
60
50
40
20
30
15
16
I
Smax
(V = V
max
)
A
0.70
0.42
0.33
0.27
0.15
0.10
0.10
0.12
I
r
(V = V
max
)
mA
6.0
4.0
4.0
3.5
2.0
2.0
1.5
1.5
t
S
@
I
Smax
s
T
ref
(typ.)
°C
Ordering code
V
max
= 160 V, V
R
= 110 V
J282
80
50 48
V
max
= 265 V, V
R
= 230 V
J284
200 110 30
J285
320 200 24
J286
500 260 20
J289 2000 900 10
J29
5000 2000 14
J29
5000 3200 7
J290 3200 1500 8
≤
0.5 120
≤
0.5
≤
0.5
≤
0.5
≤
0.5
≤
2.0
≤
0.5
≤
0.5
120
120
120
120
190
115
115
B59339A1800P020
B59339A1201P020
B59339A1321P020
B59339A1501P020
B59339A1202P020
B59346A1502P020
B59339A1502P020
B59339A1322P020
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 12
Switching applications
PTC thermistors in plastic case, 110 V and 230 V
Reliability data
Test
Electrical endurance,
cycling
Electrical endurance,
constant
Damp heat
Standard
IEC 60738-1
IEC 60738-1
IEC 60738-1
Test conditions
Room temperature, I
Smax
; V
max
Number of cycles: 50 000
Storage at V
max
/T
op,max
(V
max
)
Test duration: 1000 h
Temperature of air: 40
°C
Relative humidity of air: 93%
Duration: 56 days
Test according to IEC 60068-2-78
T
1
= T
op,min
(0 V), T
2
= T
op,max
(0 V)
Number of cycles: 5
Test duration: 30 min
Test according to IEC 60068-2-14, Test Na
Frequency range: 10 to 55 Hz
Displacement amplitude: 0.75 mm
Test duration: 3
×
2 h
Test according to IEC 60068-2-6, Test Fc
Acceleration: 390 m/s
2
Pulse duration: 6 ms; 6
×
4000 pulses
Dry heat: T = T
op,max
(0 V)
Test duration: 16 h
Damp heat first cycle
Cold: T = T
op,min
(0 V)
Test duration: 2 h
Damp heat 5 cycles
Tests performed according to
IEC 60068-2-30
∆R
25
/R
25
< 25%
< 25%
< 10%
Rapid change
of temperature
IEC 60738-1
< 10%
Vibration
IEC 60738-1
< 5%
Shock
Climatic sequence
IEC 60738-1
IEC 60738-1
< 5%
< 10%
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 12
Switching applications
PTC thermistors in plastic case, 110 V and 230 V

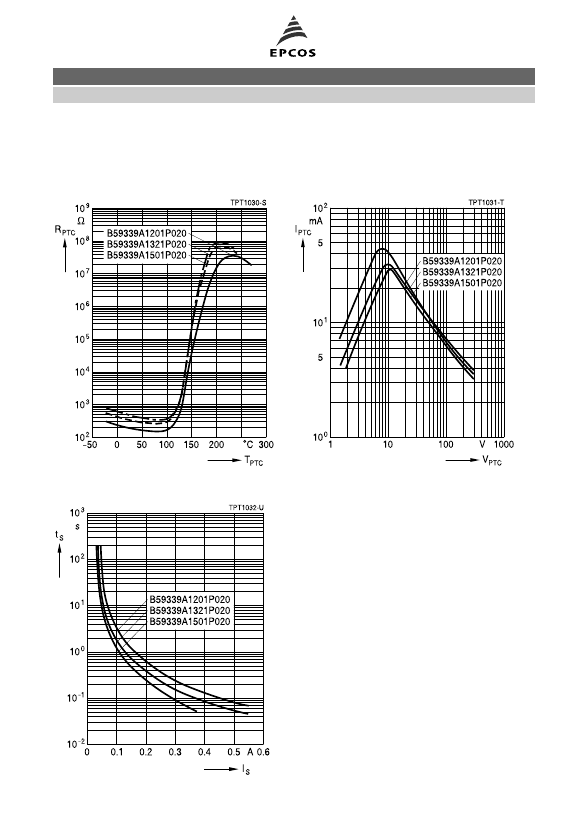

Characteristics (typical)
PTC resistance R
PTC
versus
PTC temperature T
PTC
(measured at low signal voltage)
PTC current I
PTC
versus PTC voltage V
PTC
(measured at 25
°C
in still air)
Switching time t
S
versus switching current I
S
(measured at 25
°C
in still air)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 12
Switching applications
PTC thermistors in plastic case, 110 V and 230 V
Characteristics (typical)
PTC resistance R
PTC
versus
PTC temperature T
PTC
(measured at low signal voltage)
PTC current I
PTC
versus PTC voltage V
PTC
(measured at 25
°C
in still air)
Switching time t
S
versus switching current I
S
(measured at 25
°C
in still air)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 12
