D15S91C6PL00LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D15S91C6PL00LF

D15S91C6PL00LF: DescriptionD Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, M3, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D15S91C6PL00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D15S91C6PL00LF	-	-	View	Buy Now

D15S91C6PL00LF Overview

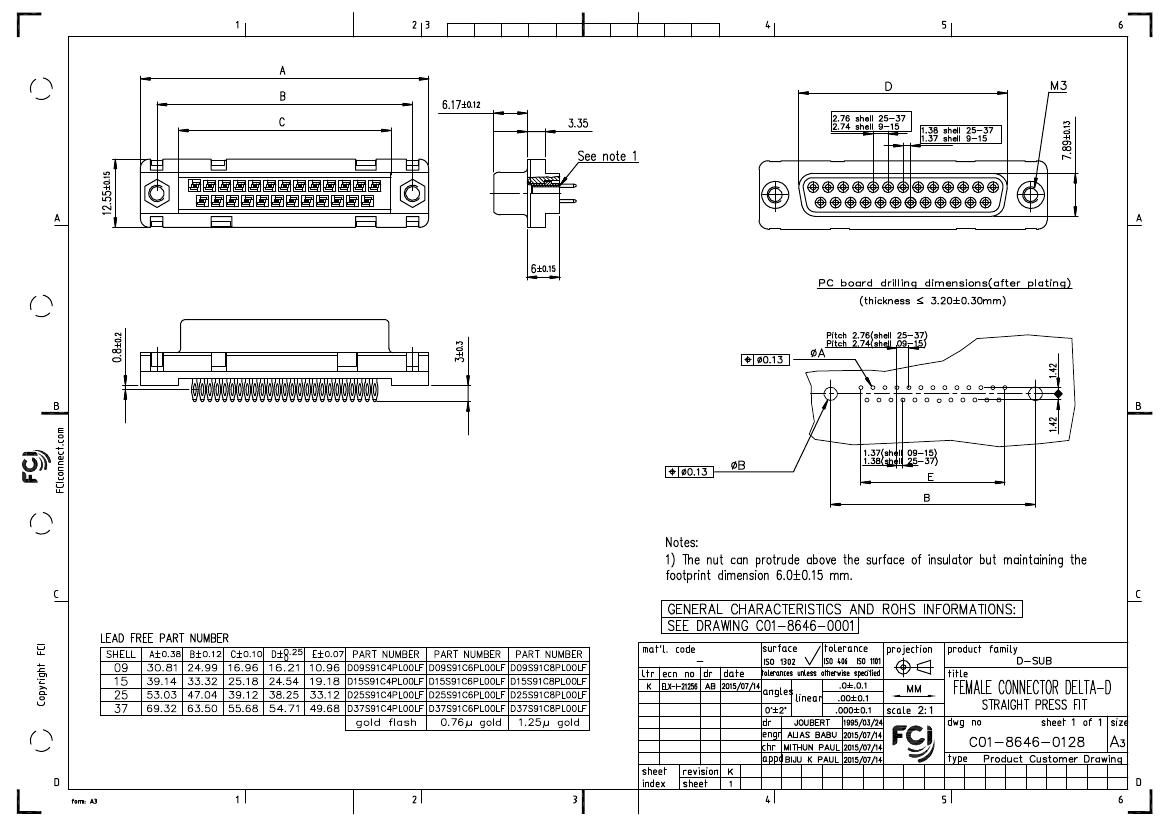

D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, M3, Plug, ROHS COMPLIANT

D15S91C6PL00LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.236 inch
body length	1.541 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M3
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.118 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

PDS: Rev :K

STATUS:Released

Printed: Jul 20, 2015
