59569-101001LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 59569-101001LF

59569-101001LF: DescriptionBoard Connector, 36 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size610KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

59569-101001LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59569-101001LF	-	-	View	Buy Now

59569-101001LF Overview

Board Connector, 36 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

59569-101001LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	11 weeks
Other features	15 GROUND CONTACTS IN 3 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

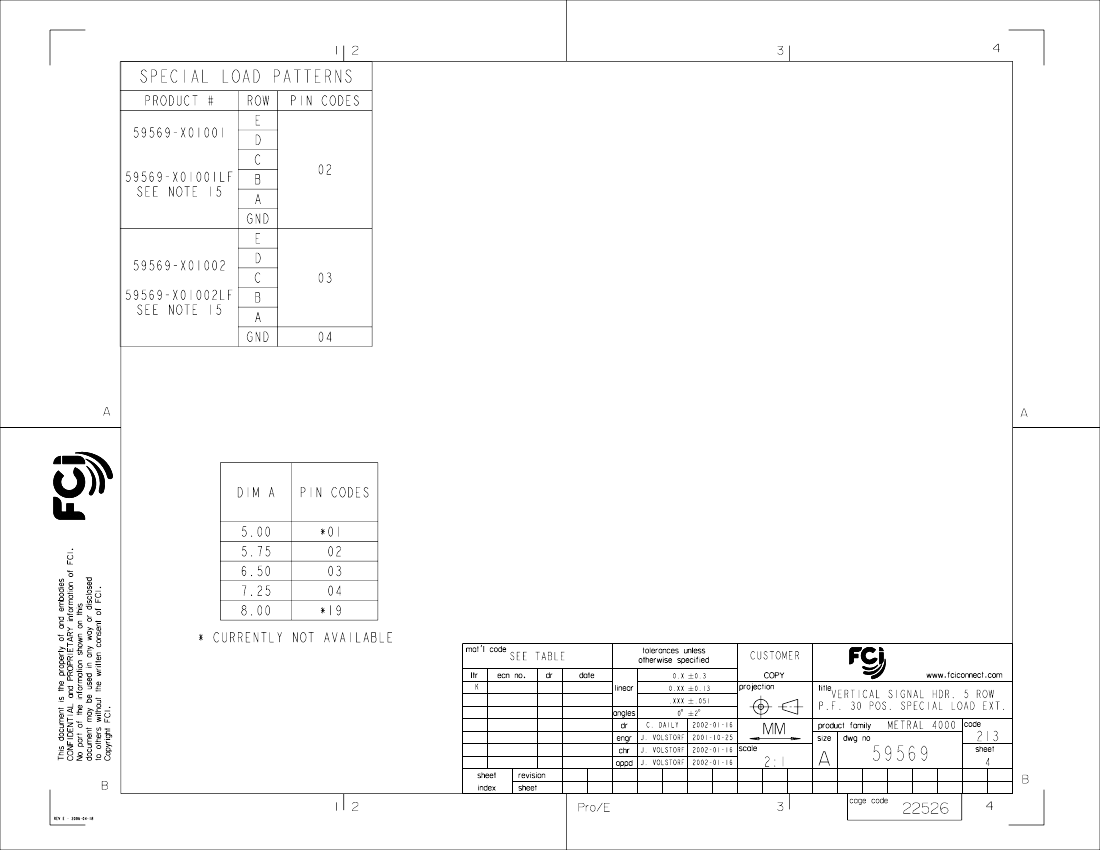

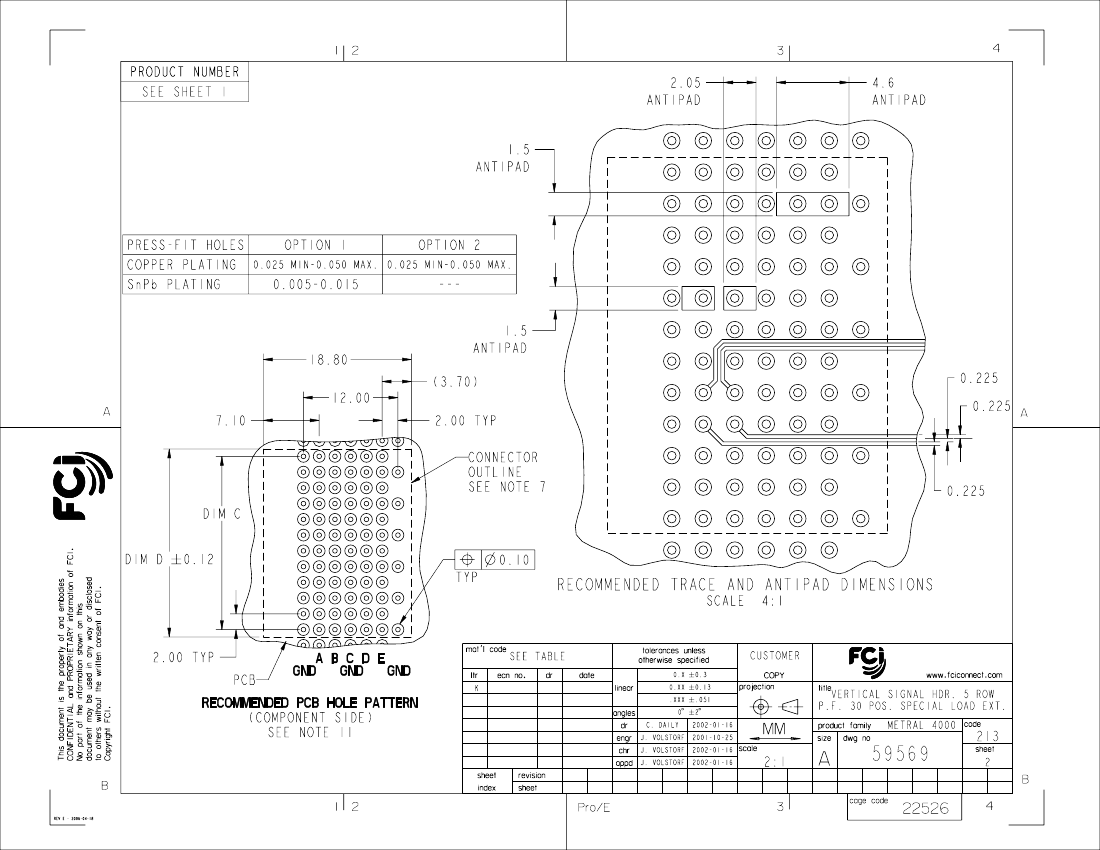

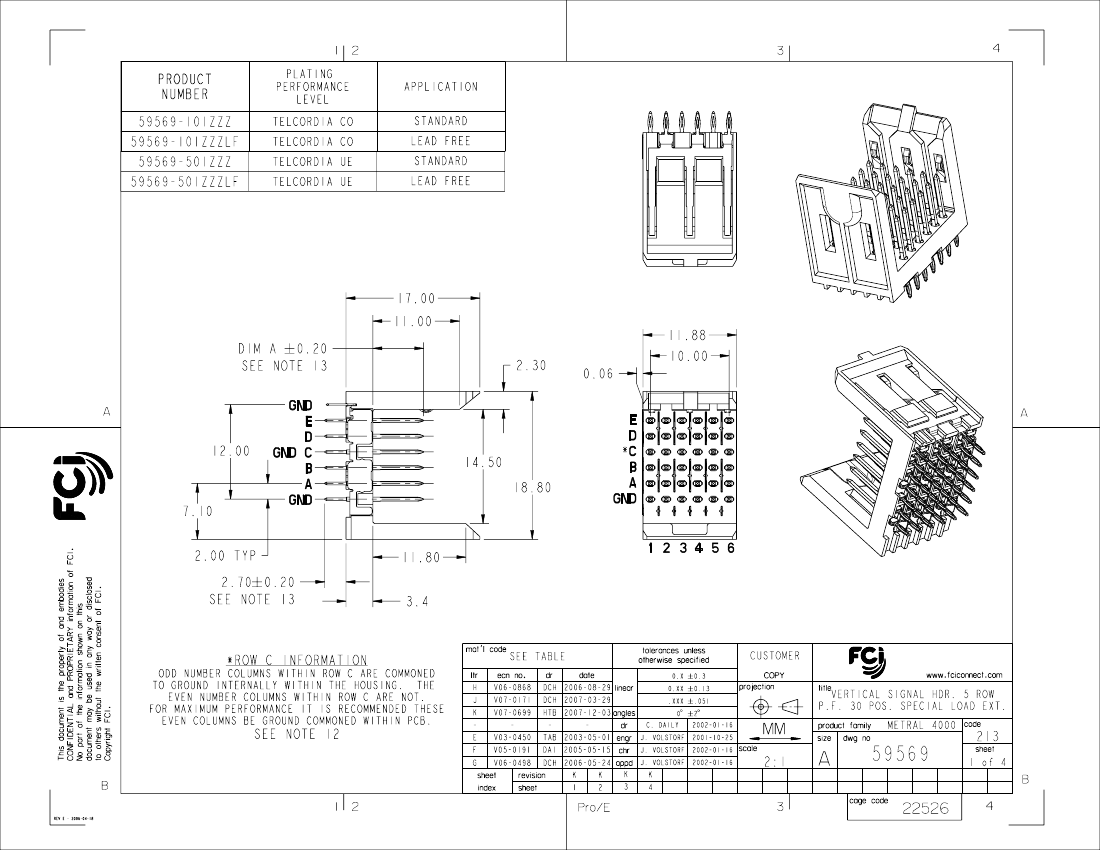

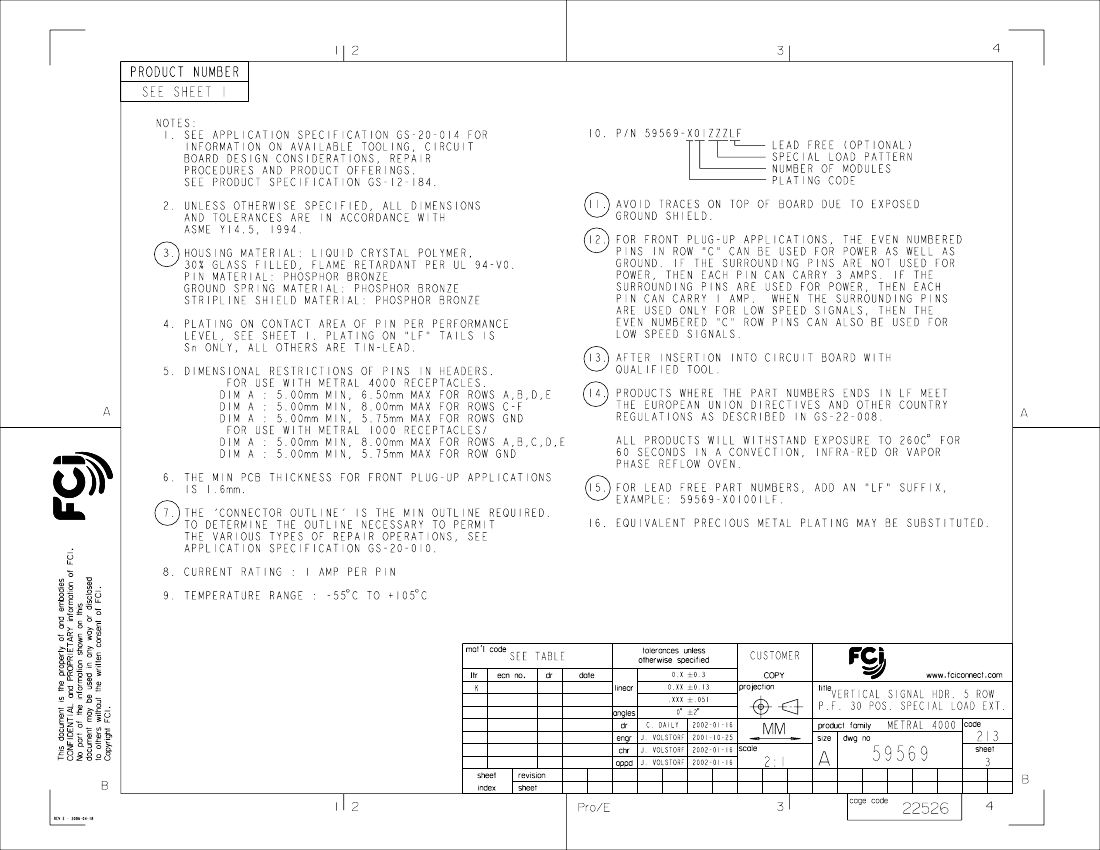

Preview

Download Datasheet

View All

PDM: Rev:K

STATUS:

Released

Printed: May 13, 2011
