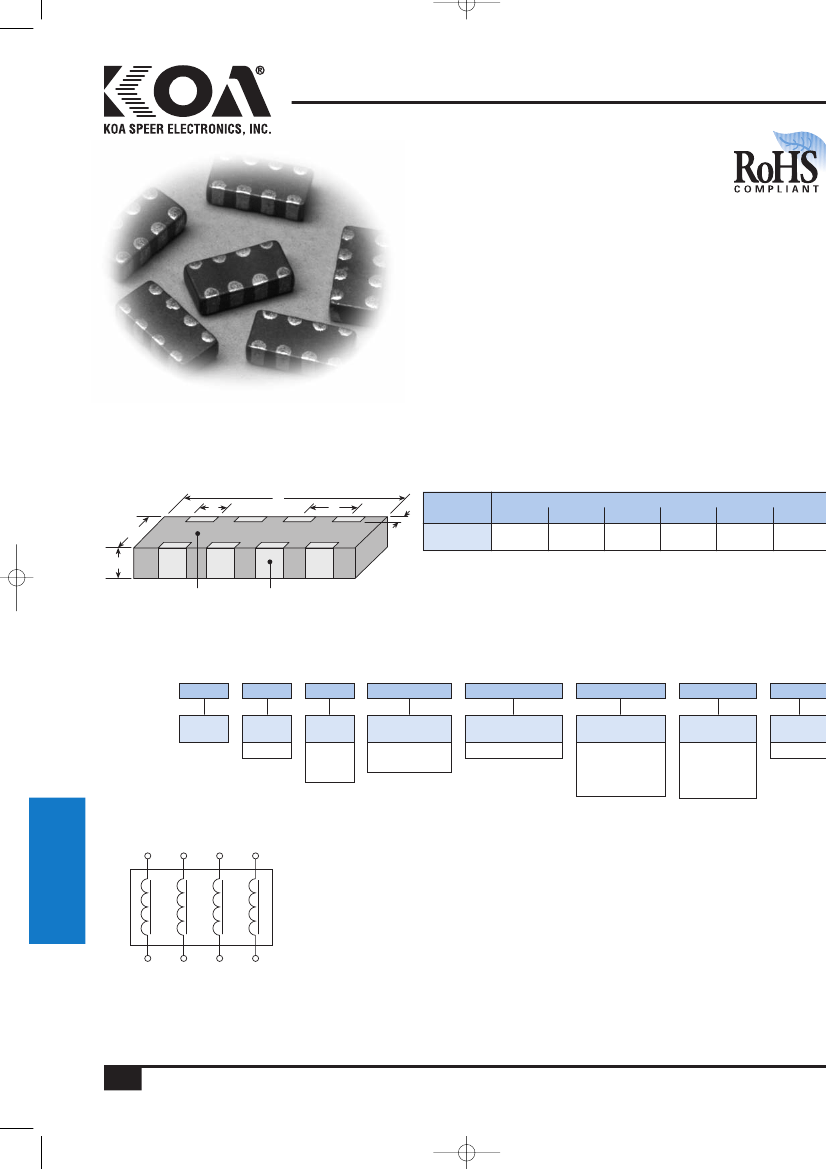

FBA
EU
features
•
Noise suppression in signal I/O lines
and other circuits that require multiple
chip beads for noise suppression
•
Multiple circuits in a single package
•
Marking: Black body color with no marking
•
Products with lead-free terminations meet
EU RoHS requirements
ferrite bead array
dimensions and construction
a
W
t
Protective
Coating
Solder
Plating
L
p
b
Type
(Inch Size Code)
L
W
Dimensions
inches
(mm)
t
a
b
p
1J
(0603)
.126±.008 .063±.008 .031±.008 .016±.008 .012±.008 .031±.008
(3.2±0.2) (1.6±0.2) (0.8±0.2) (0.40±0.2) (0.3±0.2) (0.8±0.2)
ordering information
New Part #
FBA
Type
1J
Size
1J: 0603
4
Circuits
Number
of
circuits
A
Characteristics
A: Standard
B: High speed
T
Termination
Material
T: Sn
TE
Packaging
TE: 7" embossed
plastic
(3,000
pieces/reel)
300
Impedance
2 significant
figures + 1
multiplier
Ex: 300 = 30Ω
P
Tolerance
P: ±25%
circuit schematic
EMI/EMC
filtering
For further information on packaging,
please refer to Appendix A.
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
2/24/08
258
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
PMS 300 neg.
Black neg.
FBA
applications and ratings
Part
Designation
FBA1J4ATTE300P
FBA1J4ATTE600P
FBA1J4ATTE121P
FBA1J4ATTE221P
FBA1J4ATTE301P
FBA1J4ATTE601P
FBA1J4ATTE102P
FBA1J4BTTE300P
FBA1J4BTTE600P
FBA1J4BTTE121P
FBA1J4BTTE221P
FBA1J4BTTE301P
FBA1J4BTTE601P
Impedance
@ 100MHz
(Ω)
30
60
120
220
300
600
1000
30
60
120
220
300
600
DC
Resistance
Maximum
(Ω)
0.1
0.25
0.3
0.4
0.5
0.7
0.25
0.3
0.4
0.45
0.50
0.65
Allowable
DC Current
Per Element
Maximum (mA)
200
400
350
250
100
200
400
350
100
150
100
-55°C to +125°C
Operating
Temperature
Range
ferrite bead array
NEW
NEW
environmental applications
Performance Characteristics
Parameter
Operating Temperature
Storage Temperature
-55°C to +125°C
40°C @ 70% humidity
Sealed plastic bags with desiccant shall be used to
reduce the potential of oxidation on the terminations
during storage.
Flux: 5 - 10 second dip
After Flux: Air dry for 15 seconds
Preheat: 150°C ± 10°C
Preheat Time: 60 seconds
Solder Temperature: 260°C ± 5°C
Dip Time: 10 ± 1 second
Flux: 5 - 10 second dip
After Flux: Air dry for 15 seconds
Solder Temperature: 245°C ± 5°C
Dip Time: 5 ± 0.5 second
The bead shall be subjected to the following 5 steps
for the period of time shown below. The 5 steps
constitute one (1) rotation. 4 rotations shall be
carried out.
1) Flux: 5 - 10 seconds
2) After Flux: Air dry for 15 seconds
3) Solder Temperature: 230°C ± 5°C
4) Dip Time: 5 ± 0.5 second
5) Cool: Air cool for 60 seconds
Requirement
Test Method
Resistance to Solder Heat
Change in Impedance: Relative to value before
test ±20%
Appearance: There shall be no cracking.
Solder Coverage: More than 75% of the terminal
electrode shall be covered with solder.
Solderability
Solder Coverage: More than 95% of the termination
shall be covered with solder.
Leach Resistance
Appearance: There shall be no visible signs of
physical or mechanical damage (i.e. no cracks).
Terminations: Termination must not be leached
away for more than 5%.
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
3/05/07
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
259
FBA
environmental applications
(continued)
Performance Characteristics
Parameter
Insulation Resistance
Solvent Resistance
Requirement
Insulation Resistance: Min. 1G ohms
Change in Impedance: Relative to value before
test ±10%
Cleaning by:
Washer: Ultrasonic washer (100W)
Solvent: Isopropyl alcohol
Time: 3 minutes
Type:
1206
Type:
1206
W(kgf):
1.5
W(kgf):
2.3
Time:
30 seconds ± 2 seconds
Time:
60 seconds
Test Method
ferrite bead array
Terminal Strength
(hanging test)
Terminal Strength
(push test)
Bending Strength
Appearance: The terminal electrode shall not break
off, nor shall there be damage to the body.
Appearance: There shall be no evidence of
mechanical degradations to terminals or body.
Appearance: There shall be no physical
or mechanical damage.
Impedance: Relative to initial value
before test ±10%
Appearance: There shall be no physical
or mechanical damage.
Impedance: Relative to initial value
before test ±10%
Impedance: Relative to initial value ±10%
Board: 90 x 40 x 1.6mm
Bend: 1mm
Time: 5 sec
Force: 50G
Time: 11 msec
There shall be 3 shocks in each of 6 directions
(18 shocks total)
Only endurance conditioning by sweeping shall
be made. The entire frequency range from
10 - 2,000 Hz, return to 10 Hz in 20 minutes
(this will constitute one cycle).
Amplitude: 15G
The test shall have a 15G peak and shall be
applied for a period of 4 hours (12 cycles) in each
of 3 mutually perpendicular directions (a total of
36 cycles within a total of 12 hours).
Step:
Temperature:
Time:
1-start
-40°C ± 2°C
—
2-hold
-40°C ± 2°C
30 minutes ± 5 minutes
3-transfer —
0.5 minutes maximum
4-hold
±105°C ± 2°C 30 minutes ± 5 minutes
5-transfer —
0.5 minutes maximum
Steps 1 thru 5 constitute one complete cycle and the
test shall consist of a total of 500 cycles.
Temperature: ±85°C ± 2°C
Relative Humidity: 85%
Time: 1,000 hours total
Apply: 100% rated current
Mechanical Shock
Vibration
Thermal Shock
Appearance: There shall be no physical
or mechanical damage.
Impedance: Relative to initial value ±20%
DCR: The DCR shall not exceed initial specified value.
Testing of the parts will be made at 0 hours, 250
hours and 500 hours. Before testing, the parts shall
be allowed to cool to room temperature for 24 hours.
Appearance: There shall be no physical
or mechanical damage.
Impedance: Relative to initial value ±15%
Measurements shall be taken at 0 hours, 250 hours,
500 hours and 1,000 hours and shall meet the
conditions stated above.
Appearance: There shall be no physical
or mechanical damage.
Impedance: Relative to initial value ±15%
Measurements shall be taken at 0 hours, 250 hours,
500 hours and 1,000 hours and shall meet the
conditions stated above.
Load Humidity
EMI/EMC
filtering
Life Test
Temperature: ±85°C ± 2°C
Time: 1,000 hours total
Apply: 100% rated current
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
3/01/07
