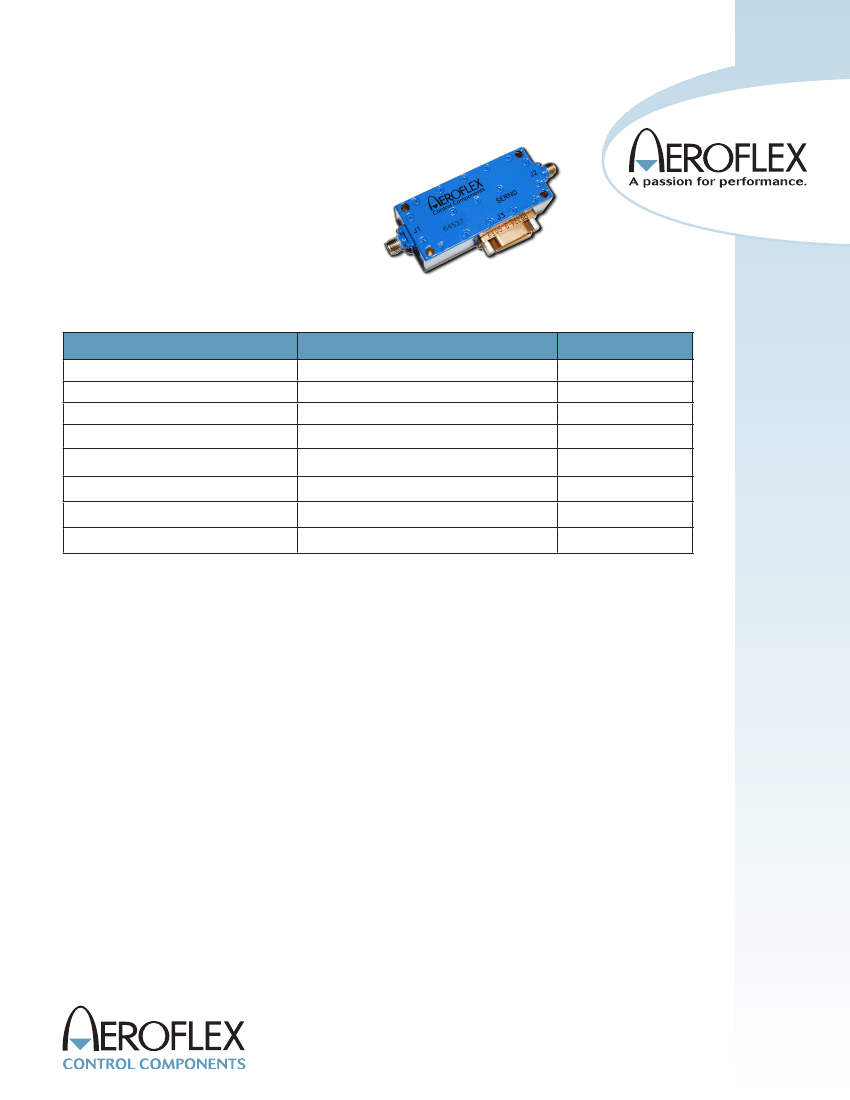

GT-0206-32
Standard Digital Attenuators
8 BIT
Applications
• Unsurpassed Attenuation Linearity over Frequency
& Temperature
• 8 or 10 bit digital control
• Smooth transition between states
• Available in 32 or 64 dB Attenuation range
• Remotely programmable parallel or serial control
interface
Specifications:
Parameter
Frequency Range (min)
Attenuation Range
Switching Speed
Attenuation Flatness
Step Size (LSB)
P1dB Compression Point (Max)
Insertion Loss (Max)
VSWR (Max)
Specification
2.0 – 6.0
0 – 32
2.5
±
1.5
Units
GHz
dB
(usec)
dB
dB
dBm
dB
Ratio
0.125
10
2.3
2.0:1
Screening:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65 °C to +100 °C, 10 cycles
Hermetically-sealed switches are fine and gross
leak checked per MIL-STD-883, Method 1014.
Optional High-Rel screening available upon
request. Contact the factory to discuss your
screening requirements.
Additional Electrical Specifications:
+5V ±0.5V @ +275mA
-5V ±0.5V @ -50mA
Control:
8 Bits command
1 Strobe line
Positive edge latched
Logic Levels:
TTL/HMOS
Attenuation Accuracy: +/-0.15 dB or +/-1.5%
whichever is greater
Attenuation Stability
over Temperature:
+/-0.025 dB/°C
DC Supply:
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
Mechanical Specifications:
Case Style:
Finish:
Connectors:
Weight:
Mounting:
GT Outline
Gold Plate per MIL-G-45204
SMA Female per MIL-C-39012
90g max
ø0.10” through holes
(4) places
Bias & Control Pins: ø0.02” x 0.15” long
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/acc, email: acc-sales@aeroflex.com
Revision Date: 2/23/2011

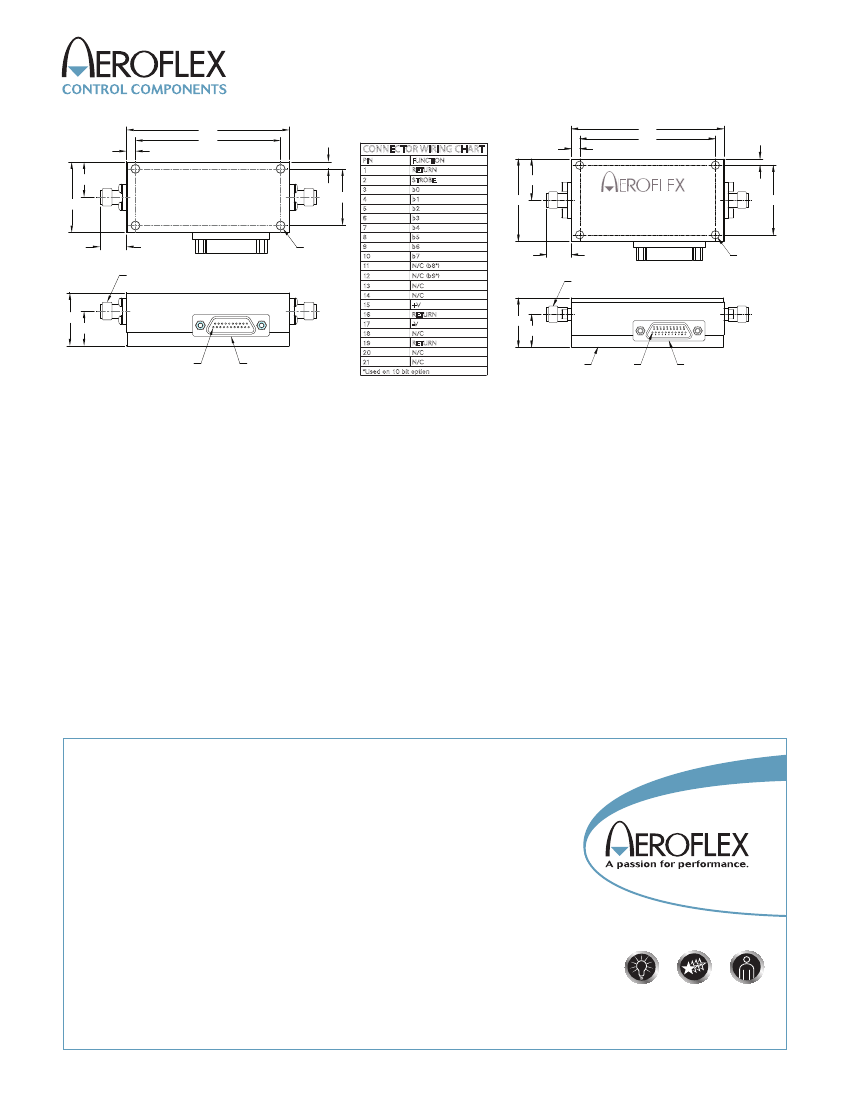

Outline Drawing:
2.30
2.05
.13
.10
.50
1.00
J1
J2
.80
2.30
2.05
CONNECTOR WIRING CHART
PIN
.13
.10
.63
1.25
J1
CONTROL COMPONENTS
64537
GT-XXXX-XX
J3
.38
2 PLS
SMA FEMALE CONNECTOR
PER MIL-PRF-39012
2 PLS
.12 DIA THRU
4 MTG HOLES
SERNO
J2
1.05
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
*Used on 10 bit
FUNCTION
RETURN
STROBE
b0
b1
b2
b3
b4
b5
b6
b7
N/C (b8*)
N/C (b9*)
N/C
N/C
+V
RETURN
-V
N/C
RETURN
N/C
N/C
option
J3
.38
2 PLS
SMA FEMALE CONNECTOR
PER MIL-PRF-39012
2 PLS
.12 DIA THRU
4 MTG HOLES
.75
.49
1
12
13
14
15
16
17
18
19
20
21
.75
.50
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
11
PIN 1
MICRO-D 21 PIN
SOCKET CONNECTOR
MOUNTING SURFACE
TO BE FREE OF PAINT
PIN 1
MICRO-D 21 PIN
SOCKET CONNECTOR
OUTLINE CASE STYLE GT
Notes:
1.
2.
3.
4.
Mean Attenuation = average attenuation over the frequency range at constant command.
Measurements at 0 dBm input power unless otherwise
Attenuation range must be specified by adding a “32 or 64” to the end of the part number (eg. GT061832)
Standard Control Interface is 8 bit. Control interface is also available in 10 bit interface. Add suffix (10) after
attenuation range suffix. Other custom options available upon request.
Part Number Ordering Information: Custom Options – Contact the Factory
•
•
•
•
•
•
GT
- 0206
- 64
- 10
-F
-H
:
:
:
:
:
:
Series
Frequency Range
Attenuation Range (32) or (64)
10 bits
Free Running
Hemetic Seal
•
•
•
•
•
•
•
•
•
Gray epoxy paint per MIL-C-22750
Video transient suppression
GPO connectors
ECL logic input
Phase and amplitude tracking
Other frequency ranges available from 1MHz to 26GHz
Reversed logic
Available without SMA connectors for drop-in applications
High rel screening
ISO 9001:2008 certified
