BSM60-12-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BSM60-12-A

BSM60-12-A: DescriptionAC-DC Regulated Power Supply Module, 1 Output, 60W, Hybrid, MODULE-6; CategoryPower/power management The power supply circuit; File Size403KB，4 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric Compare View All

BSM60-12-A Overview

AC-DC Regulated Power Supply Module, 1 Output, 60W, Hybrid, MODULE-6

BSM60-12-A Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	MODULE-6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V
Minimum input voltage	90 V
Nominal input voltage	115 V
JESD-30 code	R-XDMA-X6
length	101.6 mm
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	6
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	29.72 mm
surface mount	NO
technology	HYBRID
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum total power output	60 W
Fine-tuning/adjustable output	NO
width	50.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

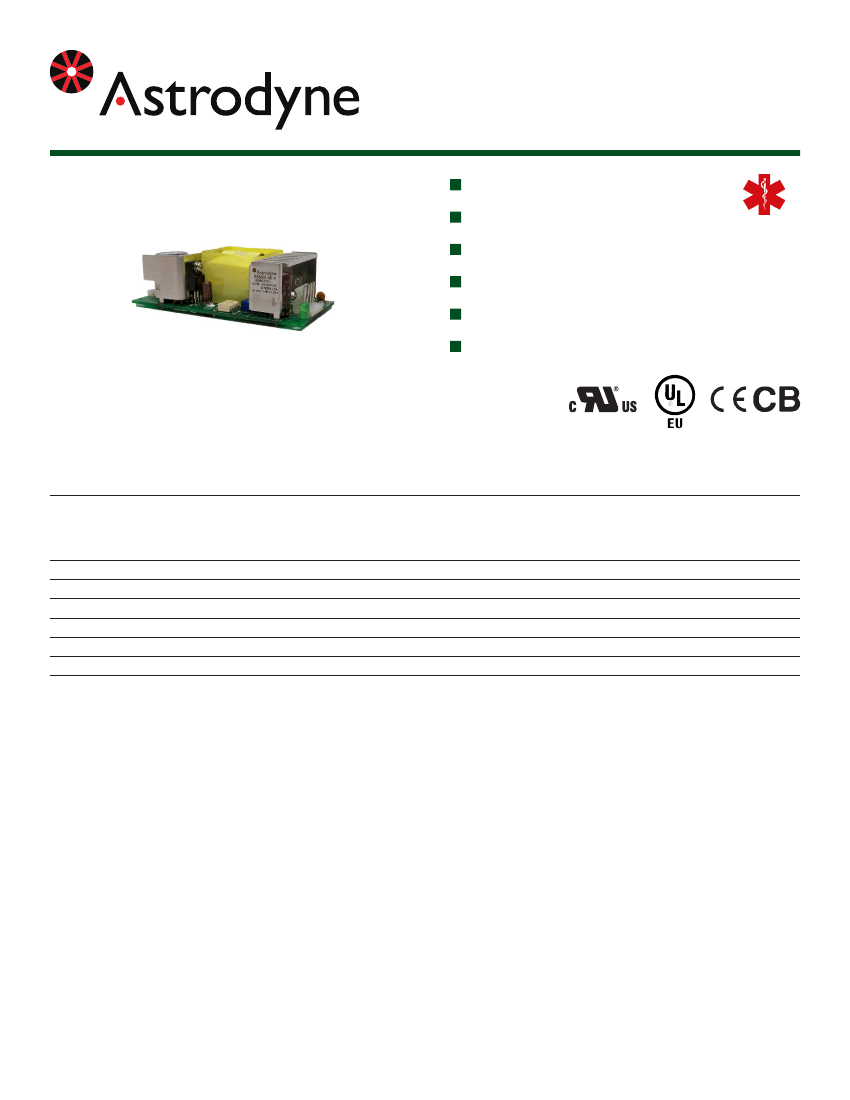

6 0 W S i n g le O utpu t Class II Med ic al Pow er S uppli es

Up to 60W Output Power

BSM60

Universal 90-264VAC Input

Single Outputs from 5VDC to 48VDC

High Efficiency up to 82%

4000V Isolation

series

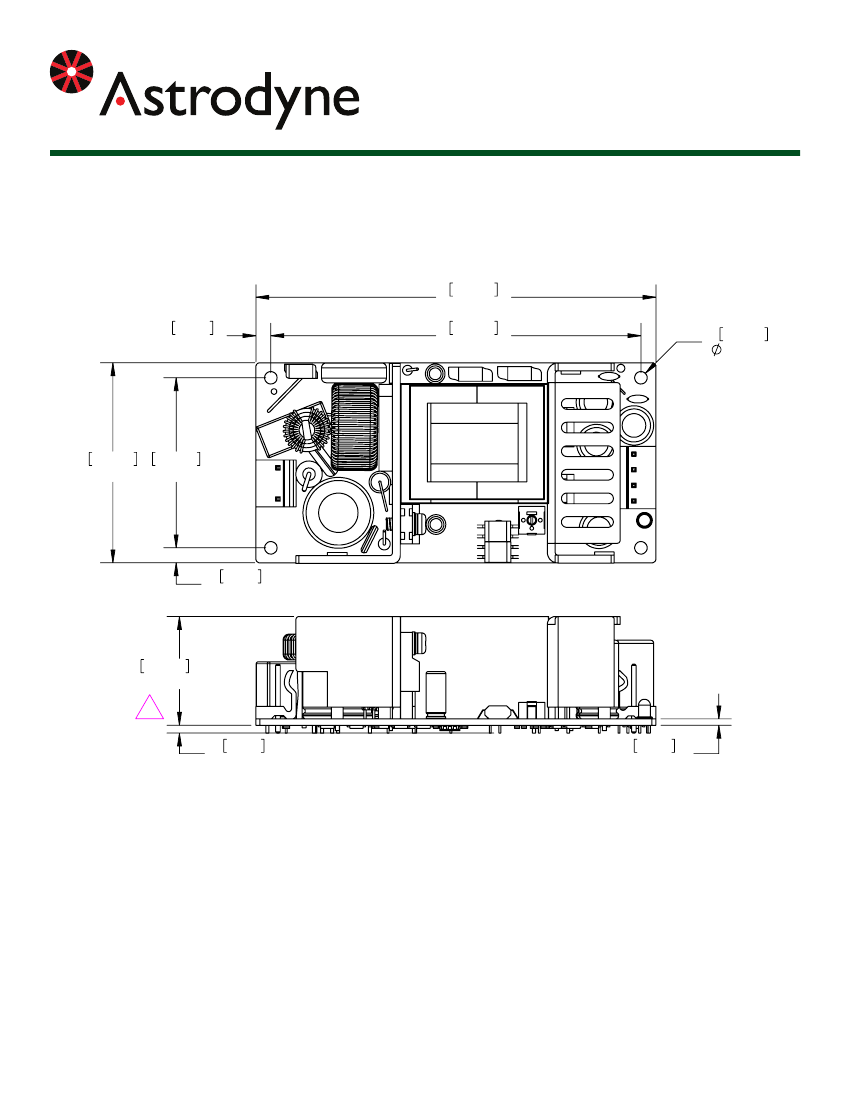

2”W x 4”L x 1.244”H

1U Compatible Height

Model Number

SINGLE OUTPUT

BSM60-5-A

BSM60-9-A

BSM60-12-A

BSM60-15-A

BSM60-24-A

BSM60-36-A

BSM60-48-A

Output Voltage Max. O/P Amps

Efficiency

R&N p-p max. Capacitive Load

Current Limit

5VDC

9VDC

12VDC

15VDC

24VDC

36VDC

48VDC

6.66

2.5

1.66

1.25

80% typ.

83% typ.

85% typ.

100mV

120mV

150mV

240mV

360mV

400mV

23,000uF

10,200uF

4,000uF

5,500uF

1,300uF

600uF

270uF

112%

135%

162%

125%

162%

WWW.ASTRODYNE.COM

ASTRODYNE USA: 1-800-823-8082

ASTRODYNE PACIFIC: 886-2-26983458
