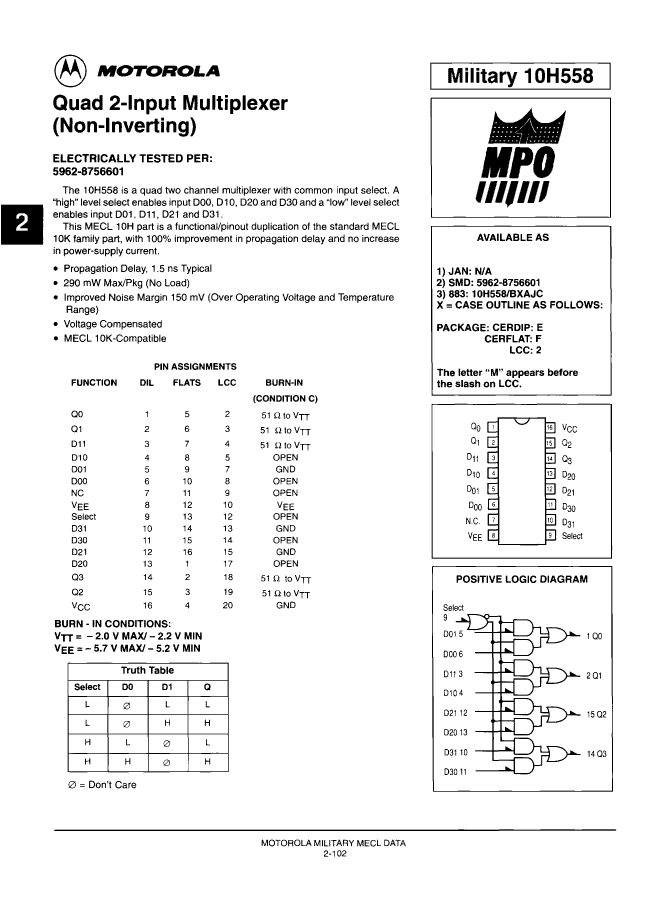

10H SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20

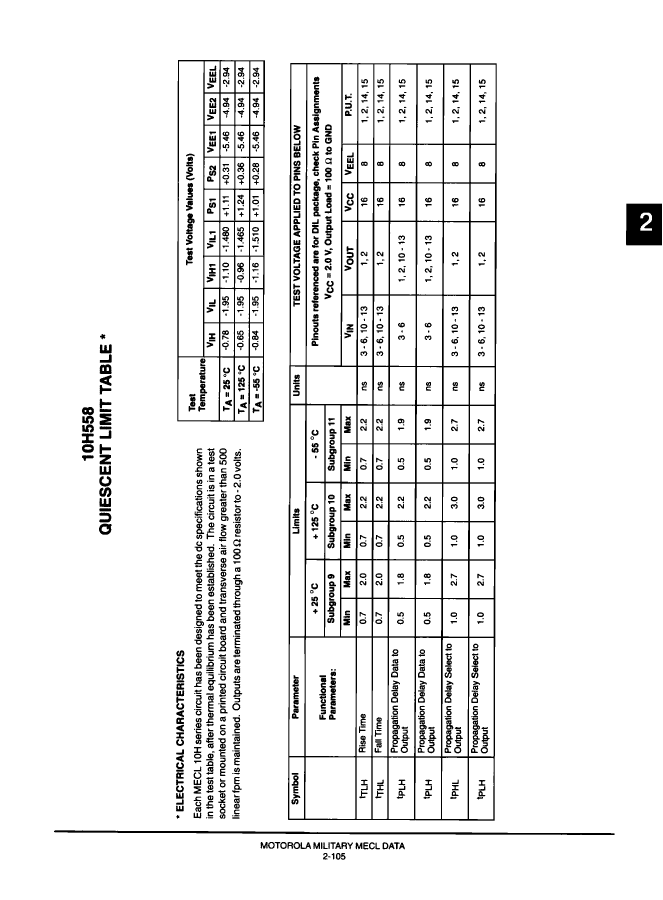

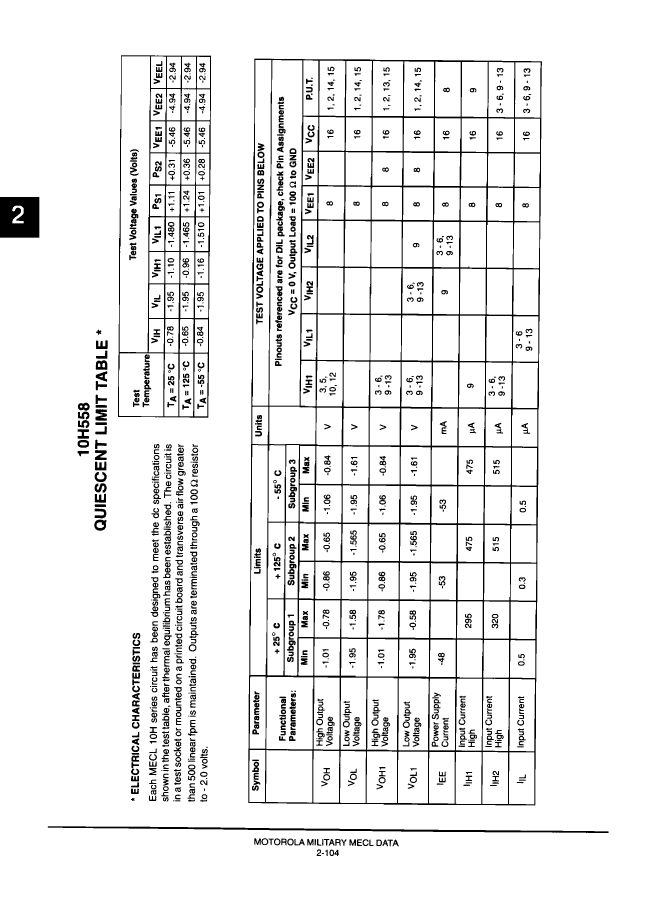

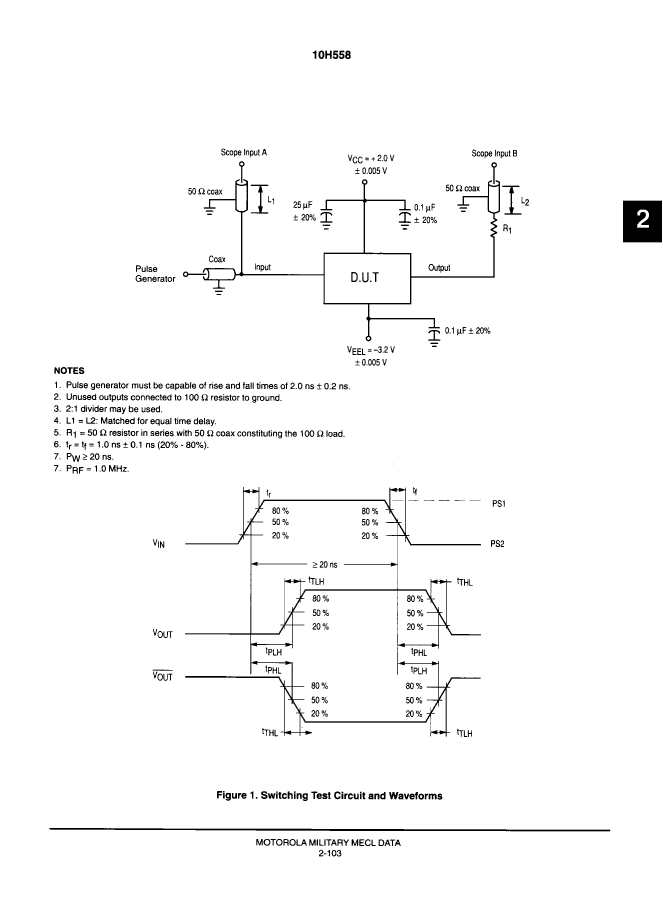

| Parameter Name | Attribute value |
| Parts packaging code | QLCC |
| package instruction | QCCN, LCC20,.35SQ |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | 10H |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.885 mm |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 4 |
| Number of entries | 2 |
| Output times | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | OPEN-EMITTER |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Maximum supply current (ICC) | 53 mA |
| propagation delay (tpd) | 3 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 1.9 mm |
| surface mount | YES |
| technology | ECL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 8.885 mm |
| Base Number Matches | 1 |
| 5962-87566012A | GBJ10D | 10H558/BEAJC | 5962-8756601FA | 5962-8756601EA | |
|---|---|---|---|---|---|
| Description | 10H SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20 | SILICON BRIDGE RECTIFIERS GLASS PASSIVATED BRIDGE RECTIFIERS | 10H SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, CERDIP-16 | Multiplexer, 10H Series, 4-Func, 2 Line Input, 1 Line Output, True Output, ECL, CDFP16, CERAMIC, FP-16 | 10H SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, CERDIP-16 |
| Parts packaging code | QLCC | - | DIP | - | DIP |
| package instruction | QCCN, LCC20,.35SQ | - | DIP, DIP16,.3 | DFP, FL16,.3 | DIP, DIP16,.3 |
| Contacts | 20 | - | 16 | - | 16 |
| Reach Compliance Code | unknown | - | unknown | unknown | unknown |
| series | 10H | - | 10H | 10H | 10H |
| JESD-30 code | S-CQCC-N20 | - | R-GDIP-T16 | R-GDFP-F16 | R-GDIP-T16 |
| JESD-609 code | e0 | - | e0 | e0 | e0 |
| length | 8.885 mm | - | 19.495 mm | 9.65 mm | 19.49 mm |
| Logic integrated circuit type | MULTIPLEXER | - | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 4 | - | 4 | 4 | 4 |
| Number of entries | 2 | - | 2 | 2 | 2 |
| Output times | 1 | - | 1 | 1 | 1 |
| Number of terminals | 20 | - | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | - | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | - | -55 °C | -55 °C | -55 °C |
| Output characteristics | OPEN-EMITTER | - | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER |
| Output polarity | TRUE | - | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | - | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | - | DIP | DFP | DIP |
| Encapsulate equivalent code | LCC20,.35SQ | - | DIP16,.3 | FL16,.3 | DIP16,.3 |
| Package shape | SQUARE | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | - | IN-LINE | FLATPACK | IN-LINE |
| Maximum supply current (ICC) | 53 mA | - | 53 mA | 53 mA | 53 mA |
| propagation delay (tpd) | 3 ns | - | 3 ns | 3 ns | 3 ns |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | - | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
| Maximum seat height | 1.9 mm | - | 5.08 mm | 2.15 mm | 5.08 mm |
| surface mount | YES | - | NO | YES | NO |
| technology | ECL | - | ECL | ECL | ECL |
| Temperature level | MILITARY | - | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | - | THROUGH-HOLE | FLAT | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | - | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | QUAD | - | DUAL | DUAL | DUAL |
| width | 8.885 mm | - | 7.62 mm | 6.415 mm | 7.62 mm |
| Base Number Matches | 1 | - | 1 | 1 | 1 |
