B82799S0333N001 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> B82799S0333N001

B82799S0333N001: Description1 FUNCTIONS, 80V, 0.2A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN; CategoryAnalog mixed-signal IC filter; File Size239KB，10 Pages; ManufacturerEPCOS (TDK); Environmental Compliance; Related ProductsFound1parts with similar functions to B82799S0333N001

Download Datasheet Parametric Compare View All

B82799S0333N001 Overview

1 FUNCTIONS, 80V, 0.2A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN

B82799S0333N001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Certification	UL
Maximum DC resistance	0.2 Ω
filter type	DATA LINE FILTER
high	3.2 mm
inductance	33 µH
JESD-609 code	e4
length	4.5 mm
Manufacturer's serial number	B82799S0
Installation type	SURFACE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
method of packing	TAPE AND REEL
physical size	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)
Rated current	0.2 A
Rated voltage	80 V
Terminal surface	Gold (Au)
width	3.2 mm
Base Number Matches	1

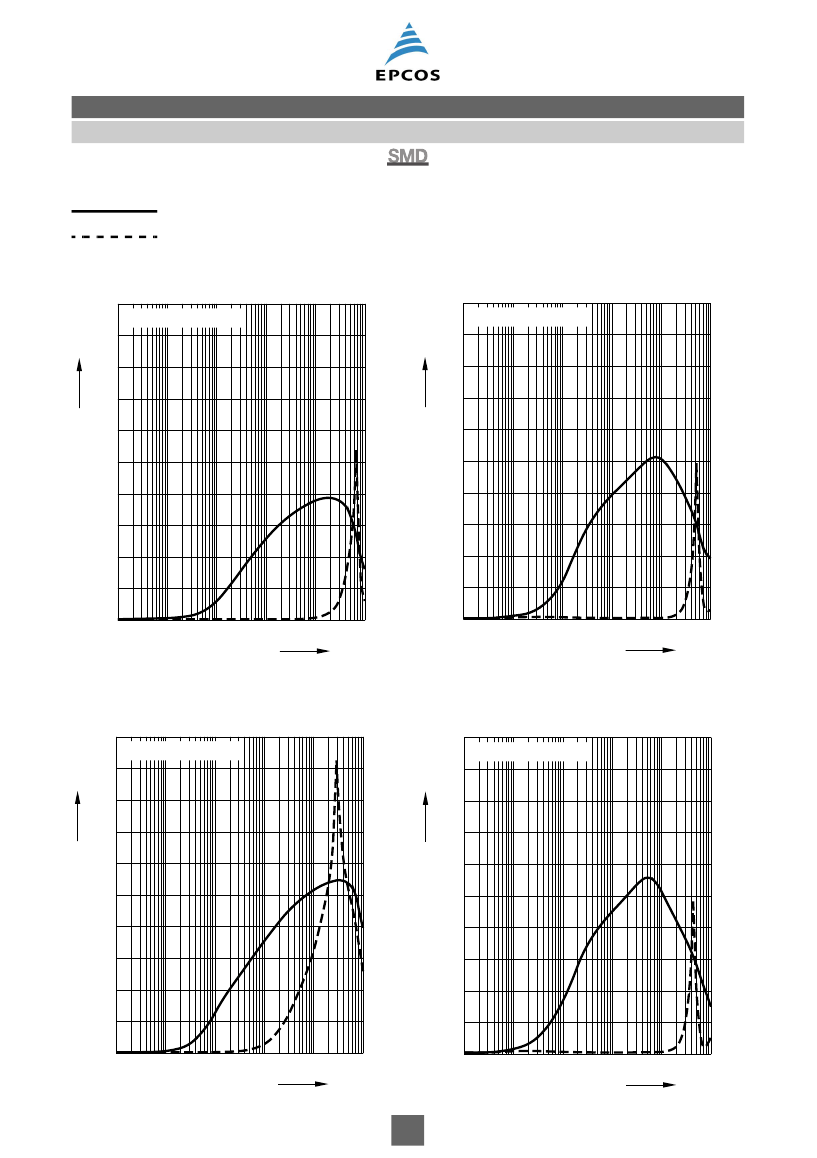

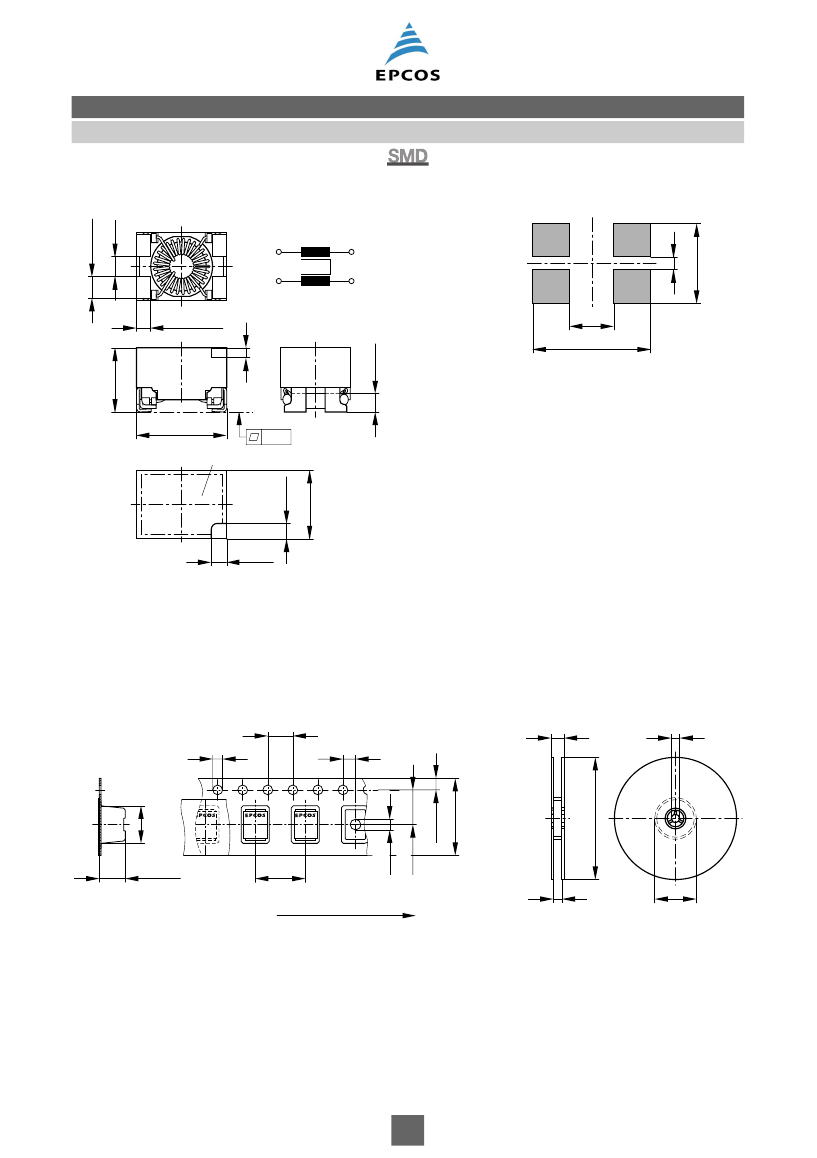

Preview

Download Datasheet

View All

Data and signal line chokes

Common-mode chokes, ring core, EIA 1812

0.011 … 0.47 mH, 200 … 300 mA, 60 °C

Series/Type:

B82799C0/S0

October 2008

7ffÁRspp

Date:

EPCOS AG 2008. Reproduction, publication and dissemination of this publication, enclosures

hereto and the information contained therein without EPCOS’ prior express consent is prohibited.

B82799S0333N001 Related Products

	B82799S0333N001	B82799C0104N001	B82799C0224N001	B82799C0474N001	B82799S0223N001	B82799-S513-N1	B82799C0513N001	B82799C0334N001	B82799C0333N001	B82799C0223N001
Description	1 FUNCTIONS, 80V, 0.2A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN	1 FUNCTIONS, 80V, 0.3A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN	1 FUNCTIONS, 80V, 0.2A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN	1 FUNCTIONS, 80V, 0.2A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN	1 FUNCTIONS, 80V, 0.25A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN	1 FUNCTIONS, 80V, 0.2A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN	1 FUNCTIONS, 80V, 0.2A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN	1 FUNCTIONS, 80V, 0.2A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN	1 FUNCTIONS, 80V, 0.2A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN	1 FUNCTIONS, 80V, 0.25A, DATA LINE FILTER, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, SMD, 4 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Certification	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
Maximum DC resistance	0.2 Ω	0.15 Ω	0.2 Ω	0.32 Ω	0.17 Ω	0.25 Ω	0.25 Ω	0.25 Ω	0.2 Ω	0.17 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
inductance	33 µH	100 µH	220 µH	470 µH	22 µH	51 µH	51 µH	330 µH	33 µH	22 µH
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
length	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Output impedance	50 OHM Ω	50 OHM Ω	50 OHM Ω	50 OHM Ω	50 OHM Ω	50 OHM Ω	50 OHM Ω	50 OHM Ω	50 OHM Ω	50 OHM Ω
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)	L4.5XB3.2XH3.2 (mm)/L0.177XB0.126XH0.126 (inch)
Rated current	0.2 A	0.3 A	0.2 A	0.2 A	0.25 A	0.2 A	0.2 A	0.2 A	0.2 A	0.25 A
Rated voltage	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
width	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Manufacturer's serial number	B82799S0	-	B82799C0	B82799C0	B82799S0	B82799S0	B82799C0	B82799C0	B82799C0	B82799C0
