AS1431S datasheet, PDF - EEWORLD Datasheet

AS1431S: DescriptionTwo Terminal Voltage Reference, 1 Output, 2.5V, PSSO3, HEAT SPREADER, PLASTIC, SOT-89, 3PIN; CategoryPower/power management The power supply circuit; File Size222KB，8 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

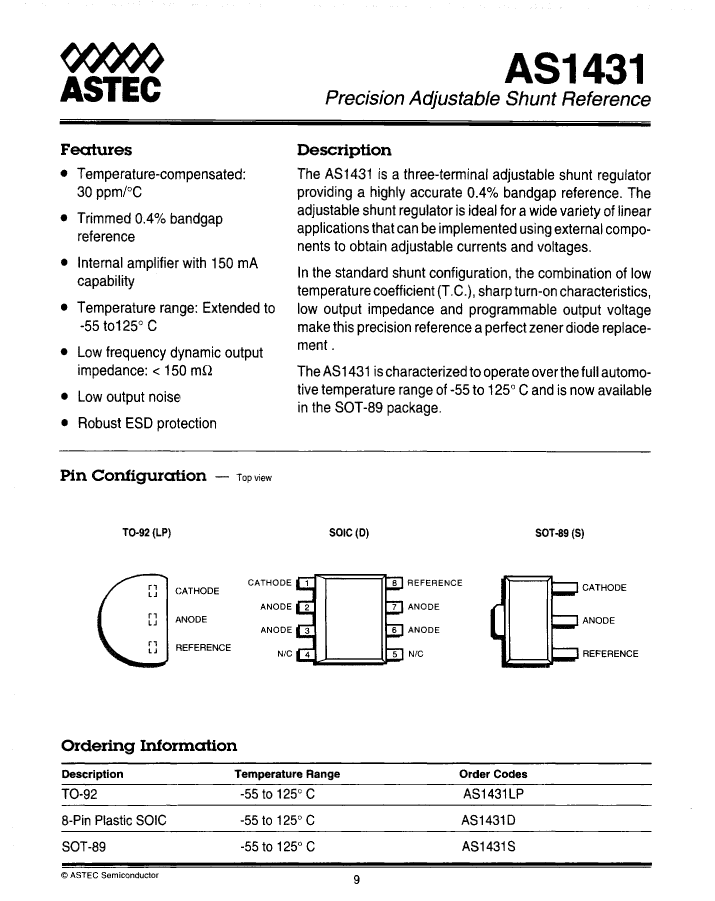

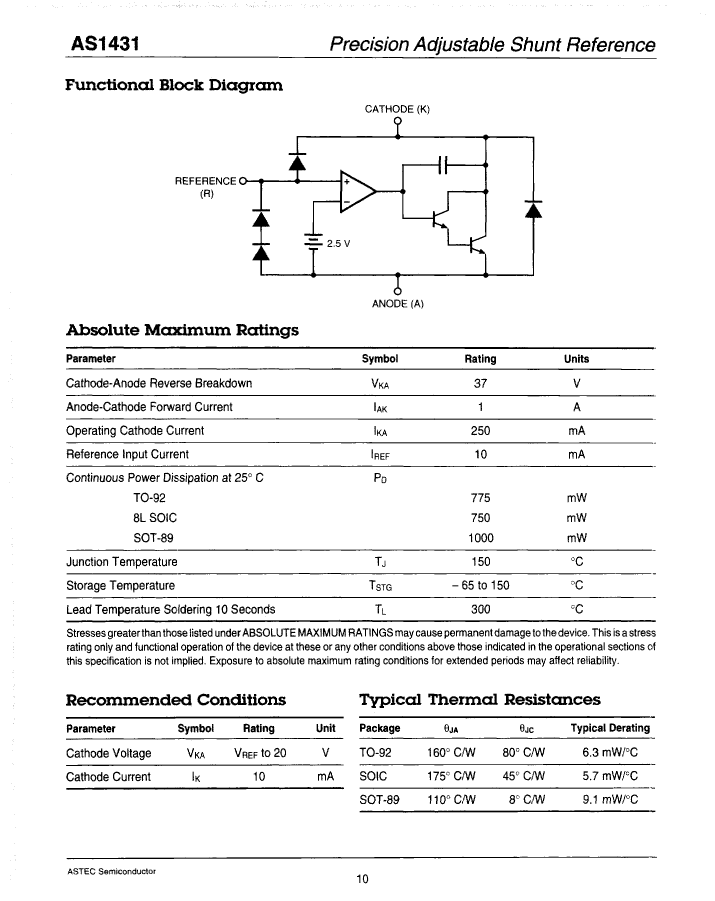

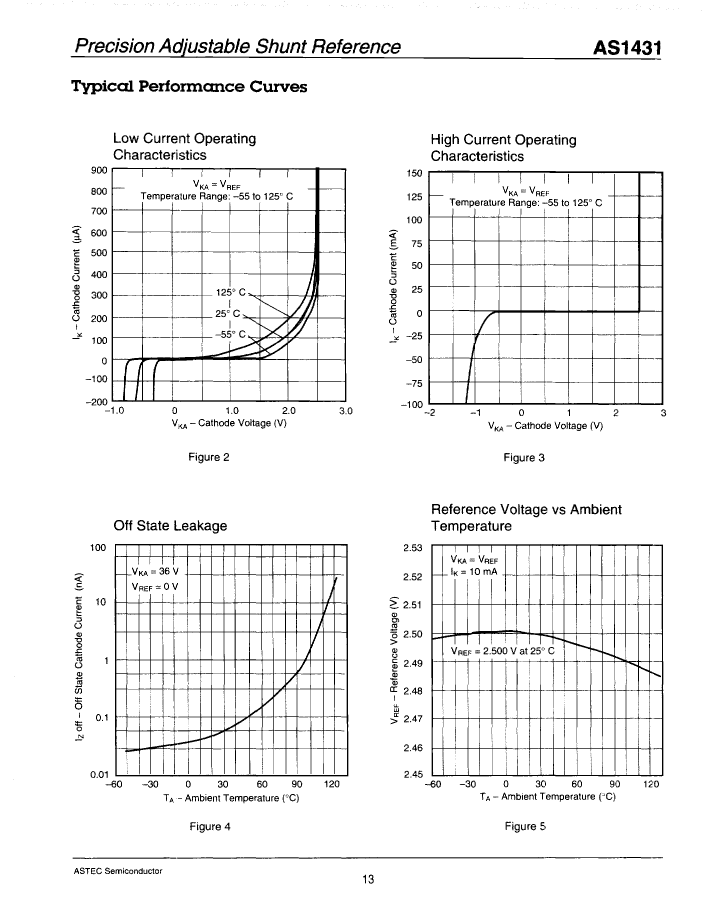

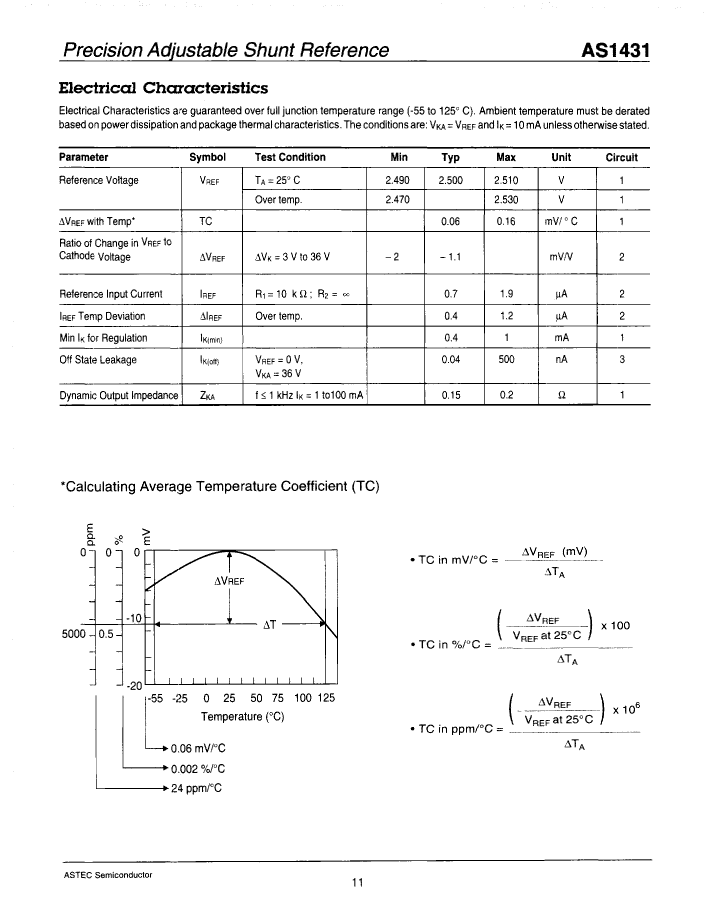

AS1431S Overview

Two Terminal Voltage Reference, 1 Output, 2.5V, PSSO3, HEAT SPREADER, PLASTIC, SOT-89, 3PIN

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSSO-F3
length	4.525 mm
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	2.53 V
Minimum output voltage	2.47 V
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply voltage (Vsup)	20 V
Minimum supply voltage (Vsup)	2.5 V
surface mount	YES
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	SINGLE
Fine-tuning/adjustable output	NO
width	2.435 mm
Base Number Matches	1

	AS1431S	AS1431D	AS1431LP
Description	Two Terminal Voltage Reference, 1 Output, 2.5V, PSSO3, HEAT SPREADER, PLASTIC, SOT-89, 3PIN	Two Terminal Voltage Reference, 1 Output, 2.5V, PDSO8, PLASTIC, SOIC-8	Two Terminal Voltage Reference, 1 Output, 2.5V, PBCY3, PLASTIC, TO-92, 3 PIN
package instruction	,	SOP,	PLASTIC, TO-92, 3 PIN
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSSO-F3	R-PDSO-G8	O-PBCY-T3
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	3	8	3
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output voltage	2.53 V	2.53 V	2.53 V
Minimum output voltage	2.47 V	2.47 V	2.47 V
Nominal output voltage	2.5 V	2.5 V	2.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	ROUND
Package form	SMALL OUTLINE	SMALL OUTLINE	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	20 V	20 V	20 V
Minimum supply voltage (Vsup)	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	NO
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	DUAL	BOTTOM
Fine-tuning/adjustable output	NO	NO	NO
length	4.525 mm	4.9 mm	-
Maximum seat height	1.7 mm	1.75 mm	-
Terminal pitch	1.5 mm	1.27 mm	-
width	2.435 mm	3.9 mm	-
Maker	-	Artysen Embedded Technologies	Artysen Embedded Technologies
encapsulated code	-	SOP	TO-92
