54F374/BSA datasheet, PDF - EEWORLD Datasheet

54F374/BSA: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDFP20; Categorylogic logic; File Size220KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

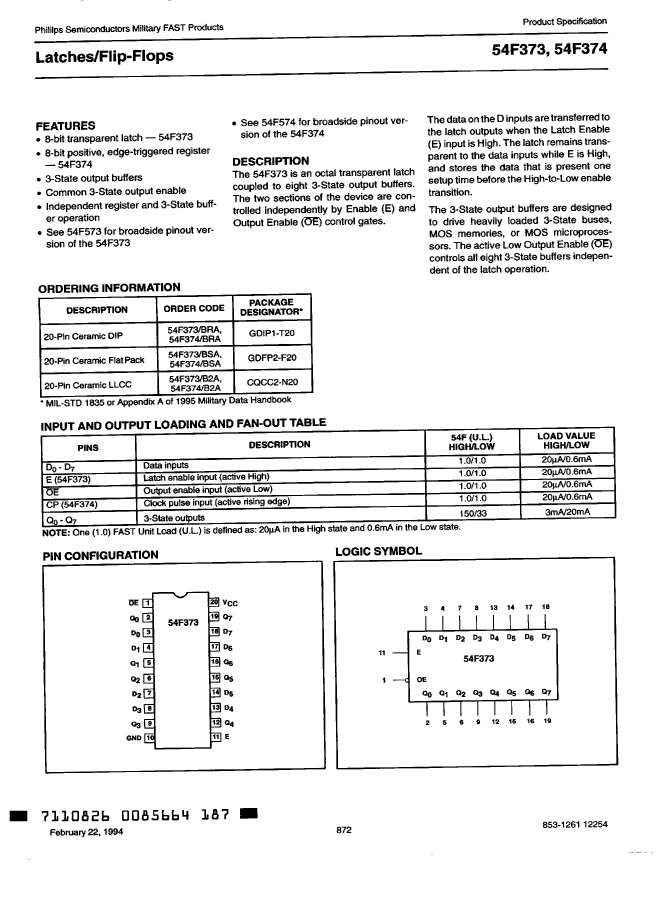

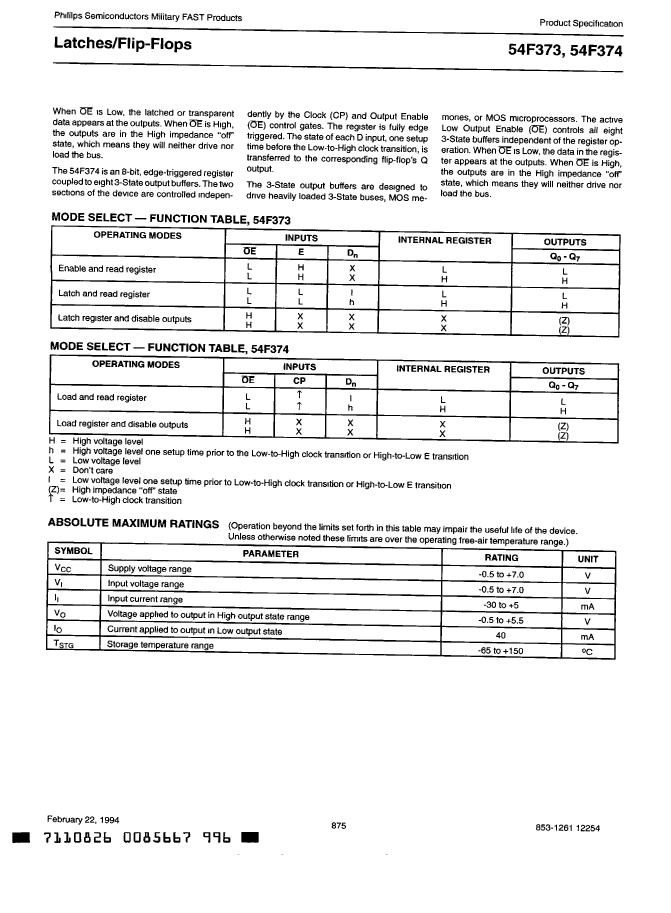

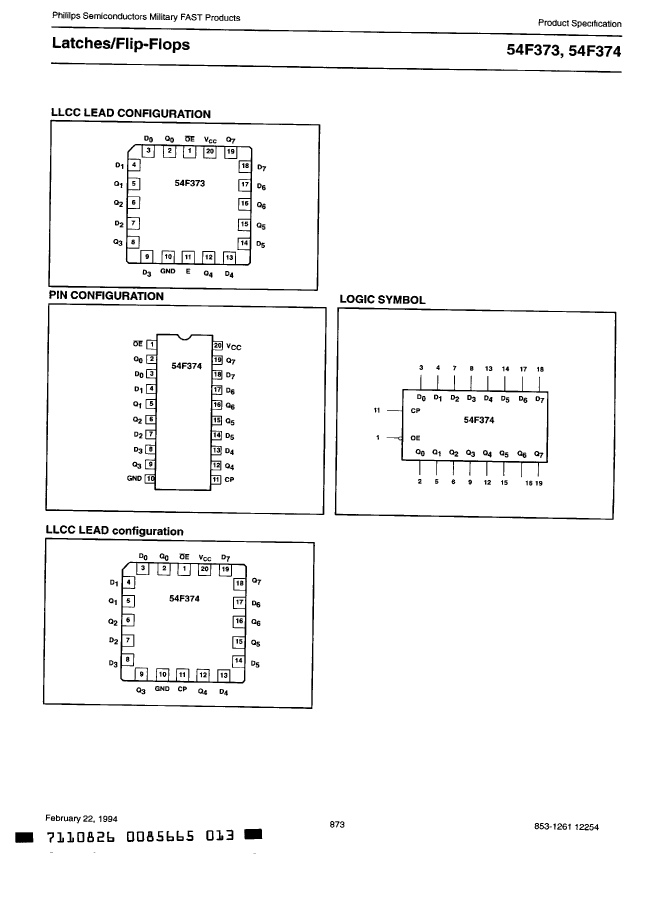

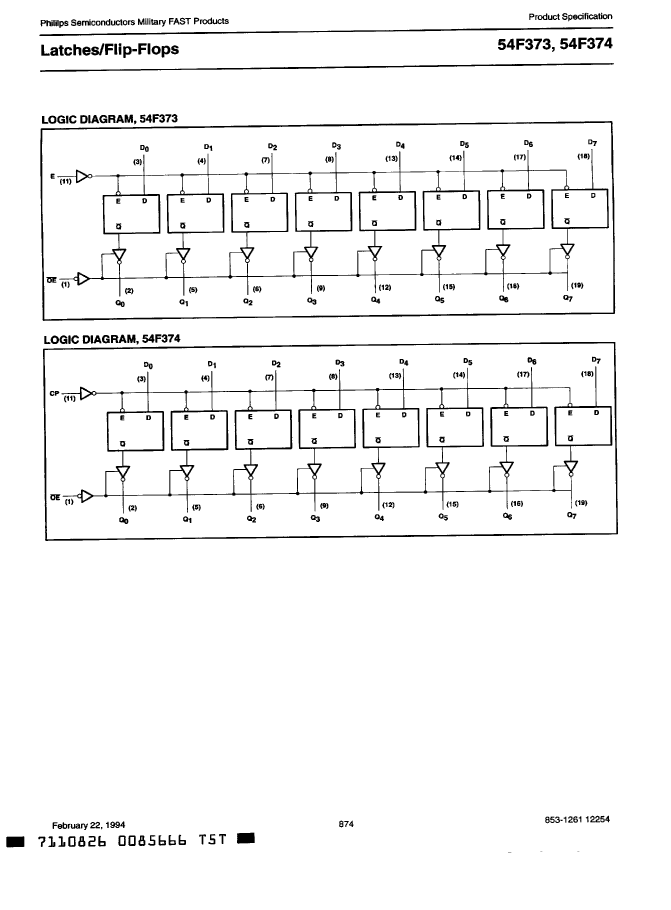

54F374/BSA Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDFP20

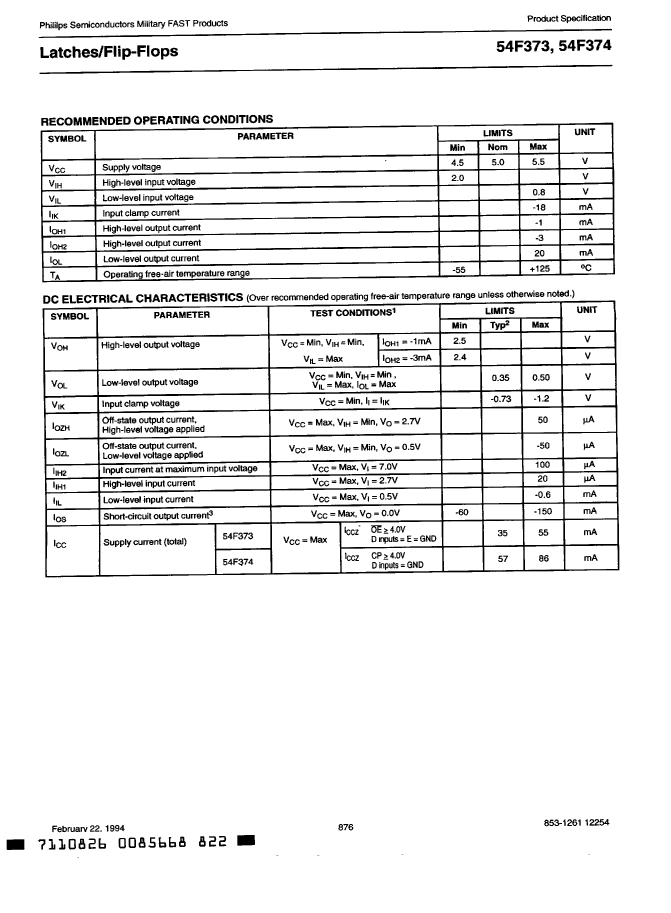

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DFP, FL20,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	60000000 Hz
MaximumI(ol)	0.02 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Maximum supply current (ICC)	86 mA
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	54F374/BSA	54F373/BSA
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDFP20	D Latch, 1-Func, 8-Bit, TTL, CDFP20
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DFP, FL20,.3	DFP, FL20,.3
Reach Compliance Code	unknown	unknown
JESD-30 code	R-XDFP-F20	R-XDFP-F20
JESD-609 code	e0	e0
Logic integrated circuit type	D FLIP-FLOP	D LATCH
Number of functions	8	1
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC
encapsulated code	DFP	DFP
Encapsulate equivalent code	FL20,.3	FL20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
