BYW29-150M: Description8A, 150V, SILICON, RECTIFIER DIODE, HERMETIC SEALED, METAL, TO-220M, 3 PIN; CategoryDiscrete semiconductor diode; File Size47KB，2 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

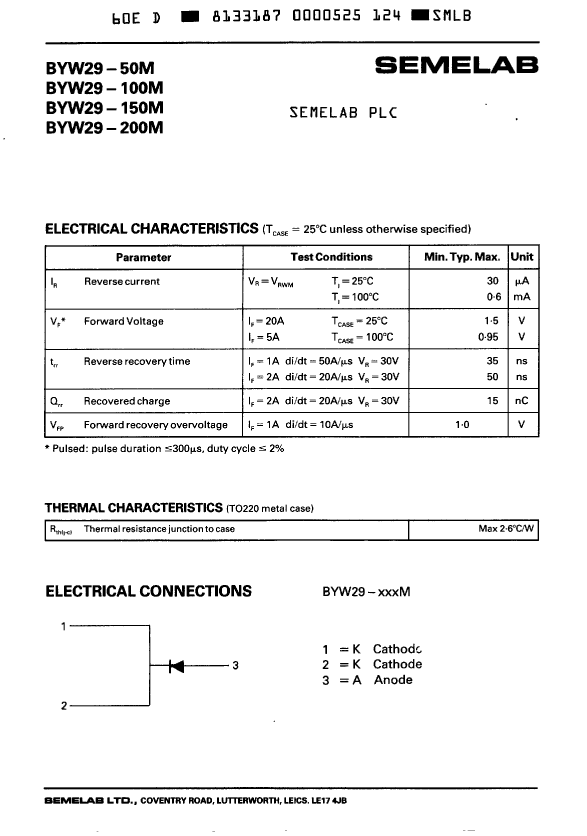

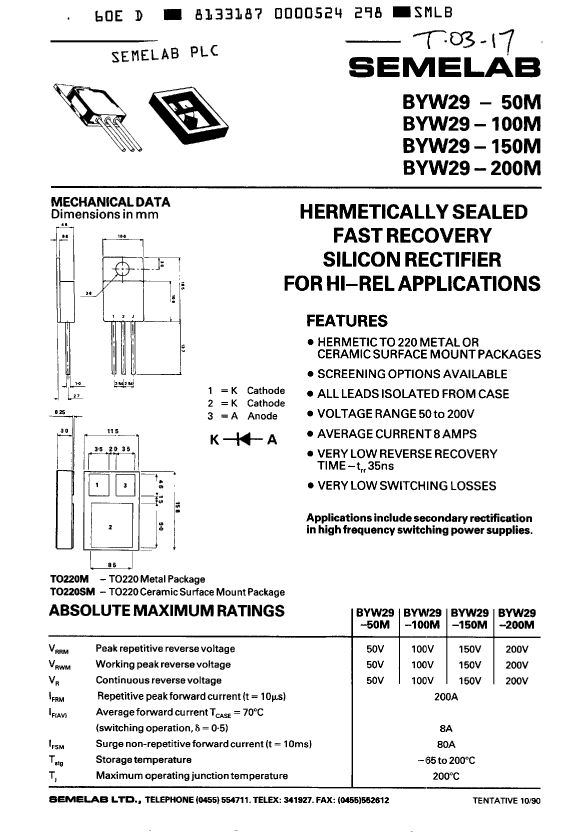

BYW29-150M Overview

8A, 150V, SILICON, RECTIFIER DIODE, HERMETIC SEALED, METAL, TO-220M, 3 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SEMELAB
Parts packaging code	TO-220M
package instruction	S-MSFM-P3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	S-MSFM-P3
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	3
Maximum operating temperature	200 °C
Maximum output current	8 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	BYW29-150M	BYW29-100M-ISO	BYW29-100SM	BYW29-200M-ISO	BYW29-200SM	BYW29-150SM	BYW29-200M
Description	8A, 150V, SILICON, RECTIFIER DIODE, HERMETIC SEALED, METAL, TO-220M, 3 PIN	RECTIFIER DIODE,100V V(RRM),TO-220AB	RECTIFIER DIODE,100V V(RRM),CHIP / DIE	RECTIFIER DIODE,200V V(RRM),TO-220AB	RECTIFIER DIODE,200V V(RRM),CHIP / DIE	RECTIFIER DIODE,150V V(RRM),CHIP / DIE	8A, 200V, SILICON, RECTIFIER DIODE, HERMETIC SEALED, METAL, TO-220M, 3 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A	80 A	80 A	80 A
Number of components	1	1	1	1	1	1	1
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Maximum output current	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Maximum repetitive peak reverse voltage	150 V	100 V	100 V	200 V	200 V	150 V	200 V
Maximum reverse recovery time	0.05 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.05 µs
surface mount	NO	NO	YES	NO	YES	YES	NO
Base Number Matches	1	1	1	1	1	-	-
Maximum forward voltage (VF)	-	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	-
