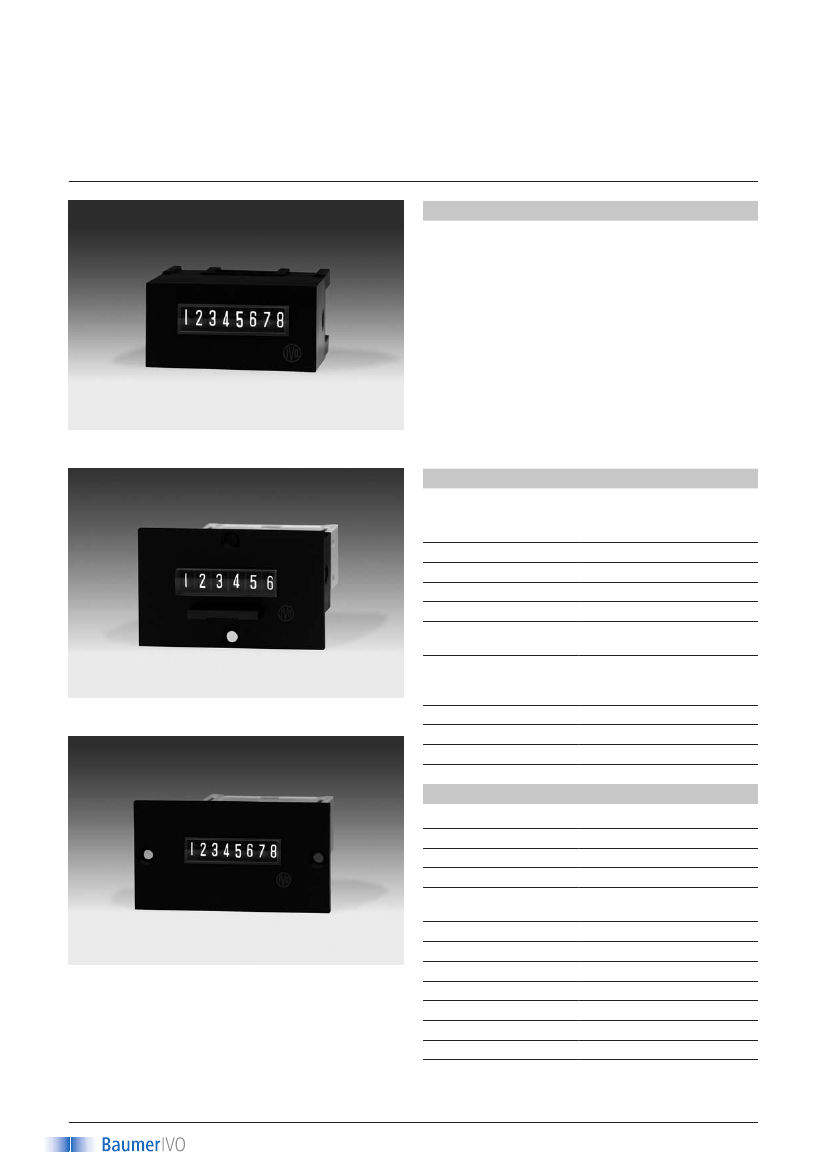

Totalizers electromechanic
Impulse counters, front panel mount
Display 6- or 8-digits, with/without reset button
F 504, F 514, F 518, F 524
Features
– Impulse counter
– Adding
– Display 6- or 8-digits
– With or without reset button / key reset
F 504 - Socket box
Technical data - electrical ratings
Voltage supply
24/110 VAC ±10 % (50/60 Hz)
230 VAC +6/-10 % (50/60 Hz)
24 VDC ±10 %
<48 %
50 / 60 Hz
2 W, 3 VA
1:1
VDC - 100 million impulses
VAC - 50 million impulses
Protection class II
Overvoltage category II
Pollution degree 2
DIN EN 61000-6-4
DIN EN 61000-6-2
Subject to modification in technic and design. Errors and omissions excepted.
2/12/2008
Ripple residue
Nominal frequency
Power consumption
Pulse ratio
Service life
Standard
DIN EN 61010-1
F 514 - Front panel with screw mount
Emitted interference
Interference immunity
Approvals
CE conform, UL/cUL
Technical data - mechanical design
Display
Digit height
Count mode
Step-by-step switching
Reset
Operating temperature
Storing temperature
F 518 - Front panel with screw mount
Relative humidity
Protection DIN EN 60529
E-connection
Weight approx.
Material
White numbers on black
4.5 mm
1 impulse = 1 count
Adding in 2 half steps
Manual by reset button
or detachable key
0...+60 °C
-20...+70 °C
80 % non-condensing
IP 41
Soldering pins (flat)
100 g
Housing: Noryl PPO, black
1
www.baumerivo.com
Impulse counters, front panel mount
Display 6- or 8-digits, with/without reset button
Totalizers electromechanic
F 504, F 514, F 518, F 524
Technical data - mechanical design
F 504
Number of digits
Measuring range
Housing type
Mounting
Dimensions W x H x L
Cutout dimensions
Installation depth
F 514
Number of digits
Measuring range
Housing type
Mounting
Dimensions W x H x L
Cutout dimensions
Installation depth
F 518
Number of digits
Measuring range
Housing type
Mounting
Dimensions W x H x L
Cutout dimensions
Installation depth
F 524
Number of digits
Measuring range
Housing type
Mounting
Dimensions W x H x L
Cutout dimensions
Installation depth
6-digits with/without reset button
8-digits without reset button
999 999 and 99 999 999
Built-in housing
Front panel with spring clips
53.2 x 28.2 x 61.3 mm
51 x 26 mm
77.8 mm
6-digits with/without reset button
8-digits without reset button
999 999
Built-in housing
Front panel with 2 screws
66.5 x 37 x 61.3 mm
51 x 26 mm
77.8 mm
6-digits
999 999
Built-in housing
Front panel with 2 screws
60 x 37.5 x 61.3 mm
51 x 26 mm
77.8 mm
6-digits with/without reset button
8-digits without reset button
999 999 and 99 999 999
Socket box
Socket box
50 x 25 x 85.8 mm
50 x 25 mm
85.8 mm
4
Connection diagram
Standard connection
3
Encoder
+(-)
Voltage
-(+)
4
Encoder
“H“-connection - combination F 504 with FE504
Please indicate when placing your order whether counters
F 504 are to be mounted together with preset counters
FE504 in a common front panel and/or in counter panels
with common mounting rails. The counters F 504 will
then be supplied ex works with a suitable, so-calle d
external plug-in housing “H”.
Trigger level
Max. counting speed 10 pulses/s
Voltage
Power
Min. pulse duration
Min. pulse interval
Switch on time (at 25 °C)
Voltage
Power
Min. pulse duration
Min. pulse interval
Switch on time (at 25 °C)
Accessories
Front panels for F 504
Z 100.01A
Front panel with transparent protective cover,
for socket box 50 x 25 mm
Front frame with cylinder lock provided on
transparent cover
Front frame, insertion cutout 50 x 25 mm
24/110 VAC ±10 %
230 VAC +6/-10 %
3 VA
50 ms
50 ms
100 %
24 VDC ±10 %
2W
25 ms
25 ms
100 %
Subject to modification in technic and design. Errors and omissions excepted.
2/12/2008
“H”-connection
3
-(+)
Voltage
+(-)
Max. counting speed 20 pulses/s
Front frames for F 504
Z 105.02A
Z 107.01A
2
www.baumerivo.com
Totalizers electromechanic
Impulse counters, front panel mount
Display 6- or 8-digits, with/without reset button
F 504, F 514, F 518, F 524
Part number
Socket box
F 504.
Display
B
6-digits 999 999
C
8-digits 99 999 999
3
5
8
9
640DA
650DA
800FA
659DB
809FB
Voltage
24 VDC
24 VAC
110 VAC
230 VAC
A3
A5
A8
A9
B3
B5
B8
B9
600B
640A
650A
Front panel with screw mount
F 514.
B
Display
B
6-digits 999 999
Voltage / connection
24 VDC / Standard connection
24 VAC / Standard connection
110 VAC / Standard connection
230 VAC / Standard connection
24 VDC / “H”-type connection
24 VAC / “H”-type connection
110 VAC / “H”-type connection
230 VAC / “H”-type connection
Reset / E-connection
With reset key / standard connection
With reset button / standard connection
Without reset / standard connection
With reset button / “H”-type connection
Without reset / “H”-type connection
Front panel with screw mount
F 518.
Display
B
6-digits 999 999
C
8-digits 99 999 999
A3
A5
A8
A9
B3
B5
B8
B9
600B
640A
650A
800C
Voltage / connection
24 VDC / Standard connection
24 VAC / Standard connection
110 VAC / Standard connection
230 VAC / Standard connection
24 VDC / “H”-type connection
24 VAC / “H”-type connection
110 VAC / “H”-type connection
230 VAC / “H”-type connection
Reset
Without reset button
With detachable key
With reset button
Front panel with spring clips mount
F 524.
Display
B
6-digits 999 999
C
8-digits 99 999 999
A3
A5
A8
A9
B3
B5
B8
B9
640D
650D
600E
800F
Voltage / connection
24 VDC / Standard connection
24 VAC / Standard connection
110 VAC / Standard connection
230 VAC / Standard connection
24 VDC / “H”-type connection
24 VAC / “H”-type connection
110 VAC / “H”-type connection
230 VAC / “H”-type connection
Reset
Without reset button, 6-digits
With detachable key, 6-digits
With reset button, 6-digits
Without reset button, 8-digits
Reset
With detachable key, 6-digits
With reset button, 6-digits
Without reset button, 6-digits
Without reset button, 8-digits
3
www.baumerivo.com
2/12/2008
Subject to modification in technic and design. Errors and omissions excepted.
Impulse counters, front panel mount
Display 6- or 8-digits, with/without reset button
Totalizers electromechanic
F 504, F 514, F 518, F 524

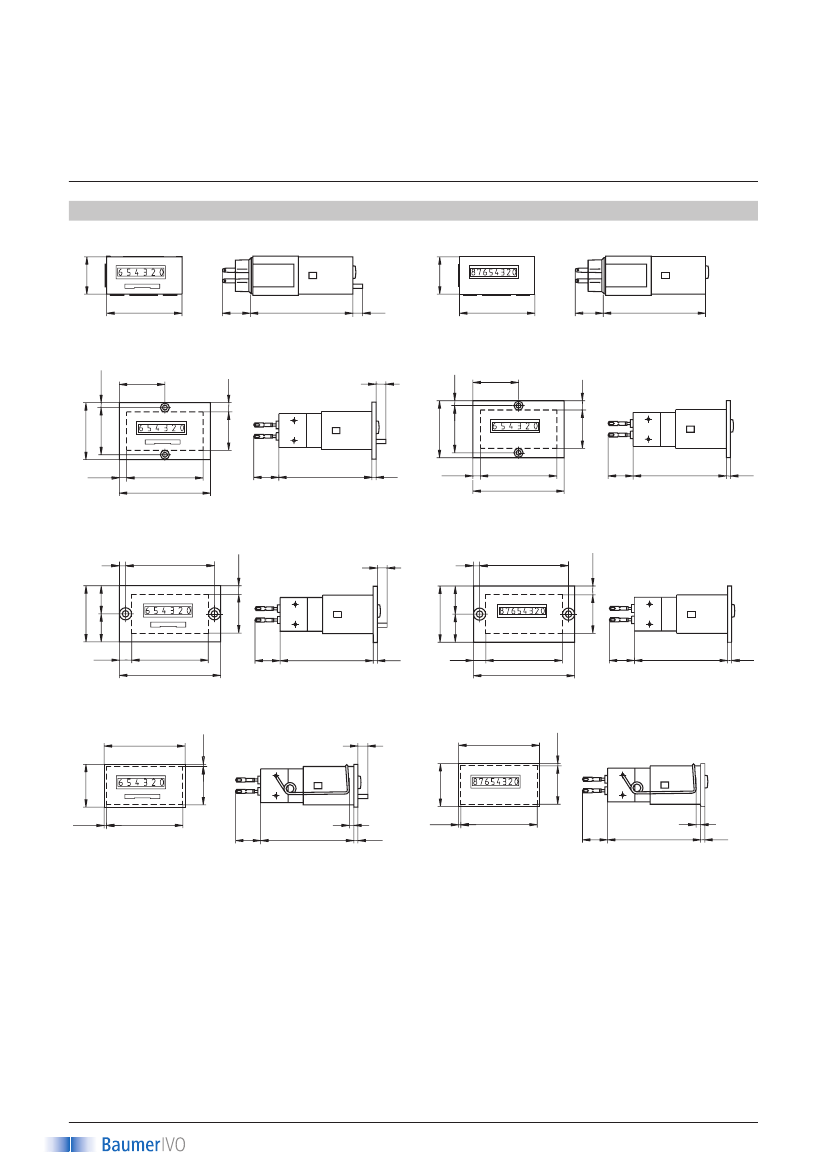

Dimensions
F 504 with reset button, 6-digits
25
F 504 without reset button, 6- and 8-digits
25
50
6.5
18.4
67.4
50
18.4
67.4
F 514 with reset button, 6-digits
3.25
6.1
F 514 without reset button, 6-digits
3.25
37.5
31
37.5
31
25.3
25.3
16.5
4.85
50.3
60
16.5
61.3
2.7
4.85
6.1
30
6.5
30
50.3
60
61.32
.7
F 518 with reset button, 6-digits
5.85
4
58.5
6.5
F 518 without reset button, 6- and 8-digits
=
25.3
=
=
=
25.3
37
37
5.85
4
58.5
8.1
50.3
66.5
16.5
61.3
2.7
8.1
50.3
66.5
16.5
61.3
2.7
F 524 with reset button, 6-digits
1.45
53.2
28.2
6.5
F 524 without reset button, 6- and 8-digits
1.45
53.2
1.45
50.3
16.5
61.3
6
2.7
1.45
50.3
16.5
61.3
6
2.7
4
www.baumerivo.com
2/12/2008
Subject to modification in technic and design. Errors and omissions excepted.
25.3
28.2
25.3
